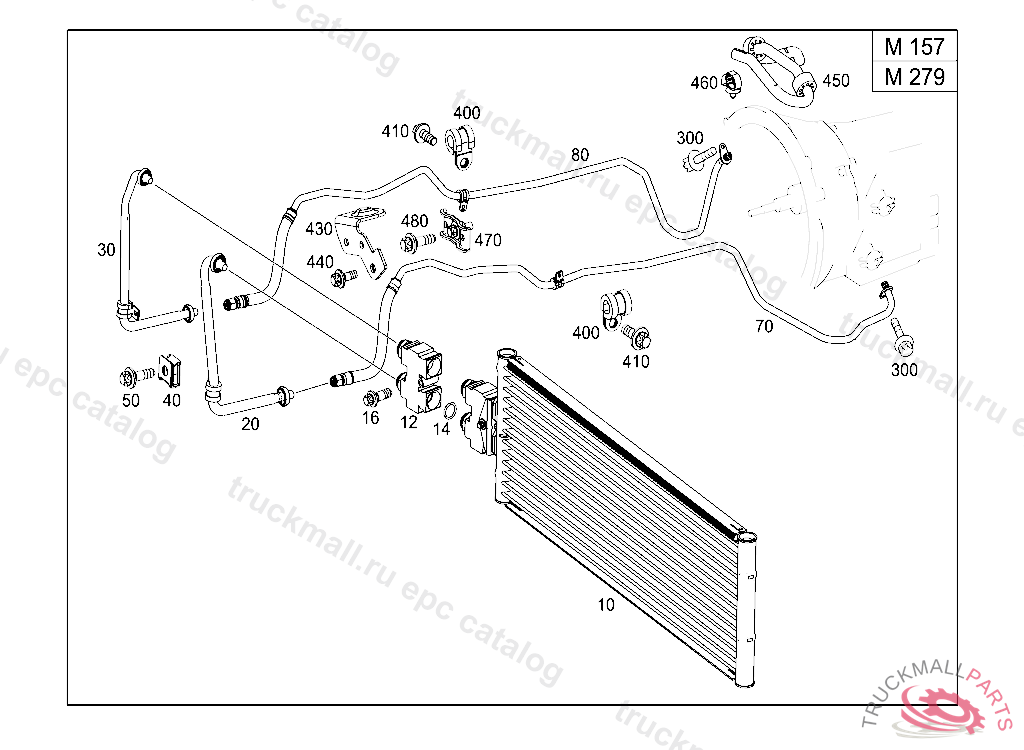

Поз.
Артикул
Описание
10
OIL COOLER TRANSMISSION COOLING
12
THERMOSTAT TO OIL COOLER RIGHT
14
O-RING OIL COOLER CONNECTION 11.8X1.78
16
HEXALOBULAR BOLT. SCREW POSITION SENDER UNIT TO CYLINDER CRANKCASE M 6X16
20
OIL LINE FEED LINE
30
OIL LINE RETURN LINE
40
NUT RETAINER. LOCK LEFT AND RIGHT SPOILER AT CENTER PIECE
50
HEXALOBULAR BOLT. SCREW
70
OIL LINE FEED LINE
80
OIL LINE RETURN LINE
300
HEXALOBULAR BOLT. SCREW WIRING HARNESS ON OIL FILTER HOUSING
400
MOUNTING CLAMP OIL LINE TO OIL PAN
410
HEXALOBULAR BOLT. SCREW BRACKET TO TRANSMISSION M 6X15
450
HOSE ASSEMBLY AT TRANSMISSION
460
LINE HOLDER ENGINE HOOD HINGE,LEFT
