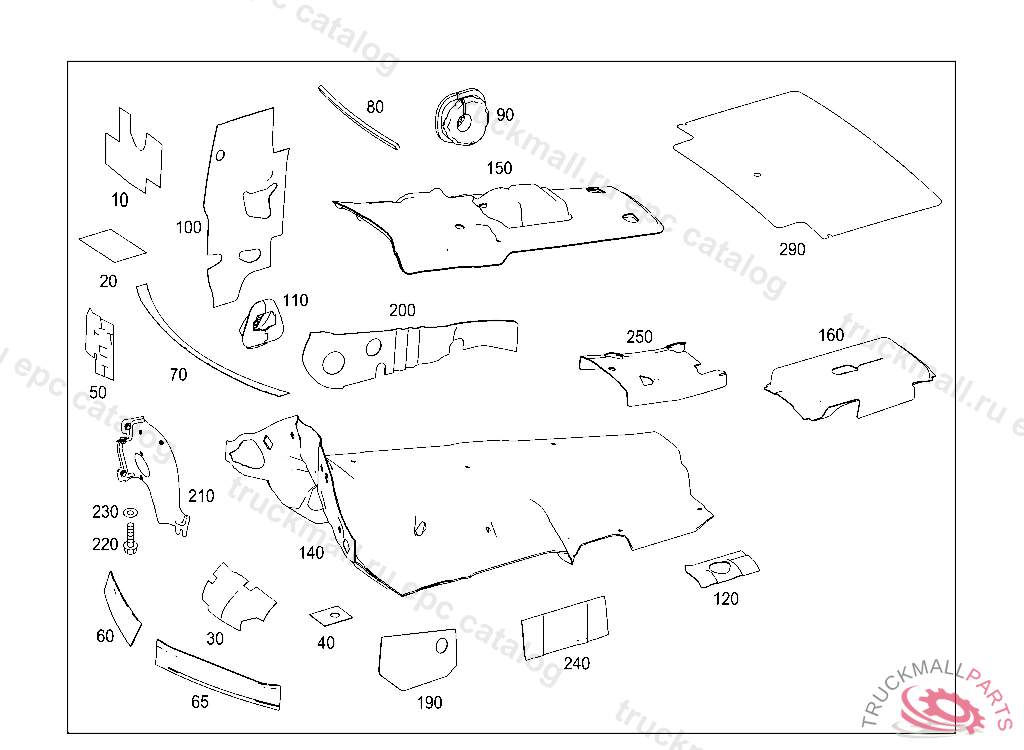

Поз.
Артикул
Описание
10
INSULATION INSTRUMENT PANEL
20
INSULATION INSTRUMENTPANEL,ABOVE
30
INSULATION TOEBOARD, A 08127020080304 TO BE ADAPTED DURING ASSEMBLY
30
INSULATION TOEBOARD, A 08126920080304
40
PEDAL FLOOR PANEL TOEBOARD
40
INSULATION TOEBOARD
40
PEDAL FLOOR PANEL TOEBOARD
50
INSULATION INSTRUMENT PANEL,CENTER
60
INSULATION TOEBOARD
65
INSULATION TOEBOARD
70
INSULATION FIRE WALL
80
INSULATION FIREWALL TOP CENTER, TO BE ADAPTED DURING ASSEMBLY
90
INSULATION A-PILLAR,RIGHT
90
INSULATION A-PILLAR,LEFT
100
A-PILLAR INSULATION A-PILLAR,LEFT, Replaced By: A2516825530
100
INSULATION A-PILLAR,RIGHT
100
INSULATION A-PILLAR,LEFT
110
INSULATION A-PILLAR, LOWER, RIGHT
110
INSULATION A-PILLAR BOTTOM,LEFT
120
INSULATION TUNNEL
140
INSULATION TRANSMISSION TUNNEL, A 16241020121203
140
INSULATION TUNNEL TRANSMISSION TUNNEL
150
INSULATION TUNNEL,FRONT
160
INSULATION TRANSMISSION TUNNEL REAR INSIDE
190
INSULATION TRANSMISSION TUNNEL AT LEFT SIDE
200
INSULATION TRANSMISSION TUNNEL AT RIGHT SIDE
210
PARTITION PANEL BOTTOM RIGHT
220
SCREW-AND-WASHER ASSEMBLY SERVICE FLAP M6X20
230
WASHER COMPRESSED AIR LINE TO BRACKET
240
INSULATION REAR CROSS MEMBER, A 13137820110402 TO BE ADAPTED DURING ASSEMBLY
240
SOUNDPROOFING
250
INSULATION TRANSMISSION TUNNEL
290
INSULATION ROOF, CENTER
