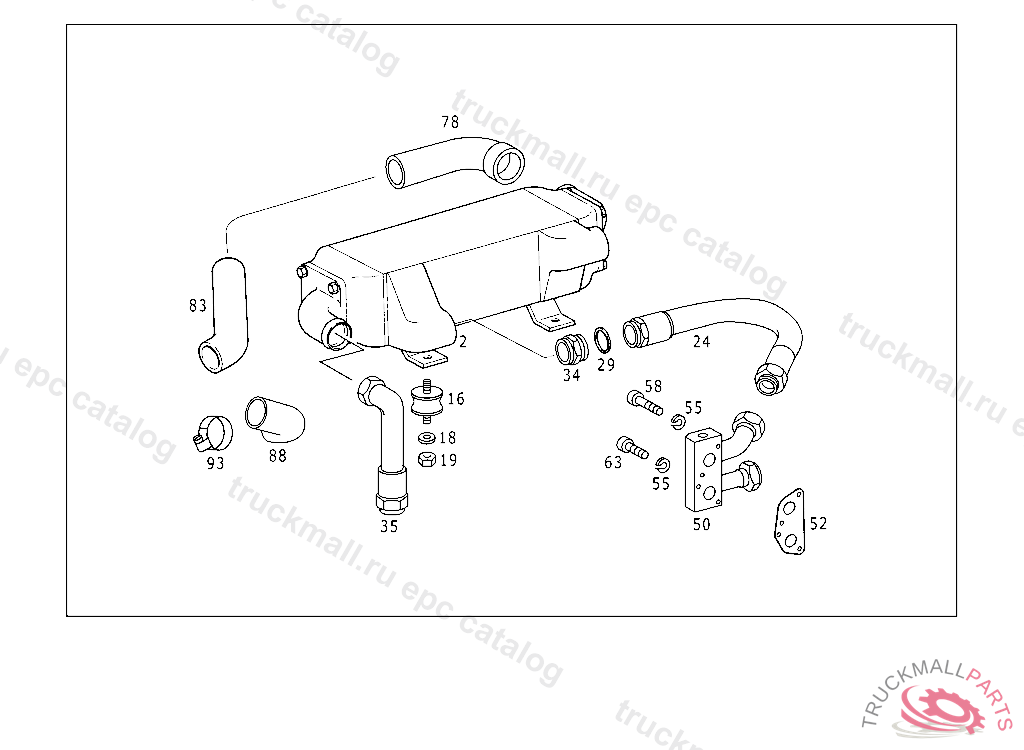

Поз.
Артикул
Описание
2
RADIATOR OIL
16
RUBBER MOUNTING
18
WASHER RADIATOR TO RUBBER MOUNTING
18
WASHER , Replaced By: N000125010532
19
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
24
HOSE OIL LINE TO OIL COOLER
29
SEAL RING OIL COOLER CONNECTION
29
SEAL RING , Replaced By: N007603038101
34
DOUBLE FITTING
35
LINE OIL
50
CONNECTOR
52
GASKET CONNECTOR TO RETARDER
52
GASKET , Replaced By: A3054380880
55
LOCK WASHER PARKING BRAKE VALVE TO WINDOW SILL
58
HEXALOBULAR BOLT. SCREWM 8X45
58
SCREW , Replaced By: N000000001448
63
SCREW STEERING SHAFT BEARING TO CAB M 8X30,5 191030
78
HOSE COOLING WATER LINE TO PIPE SOCKET
78
HOSE COOLING WATER LINE TO PIPE SOCKET
83
HOSE FEED
88
HOSE RETURN
93
CLAMP SUCTION LINE TO OIL PUMP 40-60X13 MM
93
CLAMP , Replaced By: N000000000671
999
CLAMP , Replaced By: N916016045200
999
LOOM TIE , Replaced By: N916017040000
999
PANELLING
999
LINE FROM ENGINE TO OIL COOLER
999
999
999
999
BRACKET
999
COOLING WATER PIPE FROM OIL RADIATOR,PART I
999
COOLING WATER PIPE
999
999
999
999
999
999
999
999
CLAMP
999
CLAMP , Replaced By: N000000000672
