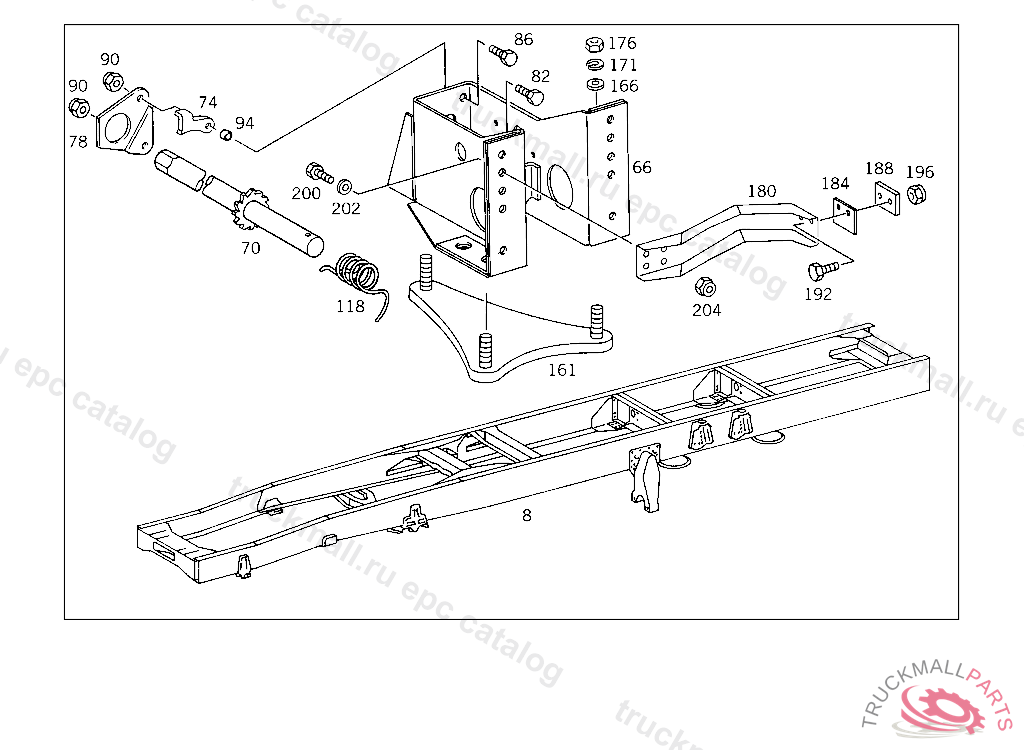

Поз.
Артикул
Описание
8
FRAME
8
FRAME
8
FRAME
8
FRAME
8
FRAME
8
FRAME
8
FRAME
8
FRAME
8
FRAME
8
FRAME
8
FRAME
66
SPARE WHEEL CARRIER
66
BRACKET ,4 670772, Replaced By: A3854000039
70
SHAFT
74
PAWL SHAFT TO SPARE WHEEL CARRIER
78
PLATE SHAFT TO SPARE WHEEL CARRIER
82
SCREW END PIECE TO EXHAUST PIPE M 10X25
86
SCREW HAND PUMP TO BRACKET
90
NUT STRAP TO BRACKET
90
NUT , Replaced By: N910113010000
94
BUSHING SHAFT TO SPARE WHEEL CARRIER
94
SPACER RING SPRING STOP TO FRAME BOTTOM SIDE
118
WIRE CABLE
161
BRACKET SPARE WHEEL,4 670772
161
BRACKET SPARE WHEEL
166
WASHER BRACKET TO SPARE WHEEL CARRIER,4 670772
166
WASHER BRACKET TO SPARE WHEEL CARRIER
171
SPRING LOCK WASHER FRONT SPRINGS TO FRONT AXLE,5 184731
171
LOCK WASHER BELL HOUSING TO TRANSMISSION
176
NUT FRONT SPRINGS WITH TORSION BAR TO FRONT AXLE
176
NUT SPARE WHEEL HOIST TO FRAME
180
REINFORCEMENT SPARE WHEEL CARRIER TO SIDE MEMBER
184
BASE BLOCK CROSS MEMBER TO SIDE MEMBERS
188
BASE BLOCK SPARE WHEEL CARRIER TO SIDE MEMBER
192
SCREW END PIECE TO EXHAUST PIPE M 10X25
192
SCREW REAR EXHAUST PIPE TO MUFFLER
196
NUT , Replaced By: N910113010000
196
NUT STRAP TO BRACKET
200
SCREW BRACKET TO CONSOLE
200
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
200
SCREW SUPPORT TO SIDE MEMBER
200
SCREW BRACKET TO FRAME M 12X35
200
SCREW STRUT TO BUMPER
200
SCREW VIBRATION ABSORBER TO BRACKET
200
SCREW , Replaced By: N000961012025
200
SCREW , Replaced By: A0079900601
200
SCREW SPARE WHEEL CARRIER TO SIDE MEMBER M 12X1.5X80
200
SCREW PLATFORM MOUNTING
200
SCREW SPRING TO STRUT, MODEL 416,417 FOR USE WITH MEDIUM-LENGTH MERCEDES-BENZ CAB5 215244
200
SCREW , Replaced By: N000961012208
202
WASHER LEFT AND RIGHT CONSOLES TO CAB
202
WASHER
204
NUT SUPPORT TO SIDE MEMBER
999
ANGLE BRACKET TO CROSS MEMBER
999
ANGLE LEFT AND RIGHT
999
BRACKET , Replaced By: A3854000039
999
WEB SPRING-LOADED BRAKE UNIT,4 348974
999
CROSS MEMBERNO.3
999
BRACKET , Replaced By: A3854000539, +001A3854000439, +003N000934018006, +003N007349019002, +003N912004018101
999
INTERMEDIATE PIECE SPARE WHEEL CARRIER TO SIDE MEMBER
999
STOP GEAR ,5 127459, Replaced By: A6204030583, +001A3854030003, +001A3354030130, +001A6204030085, +001N001481006027
999
WORM ,5 127459, Replaced By: A6204030085, +001A3854030003, +001A3354030130, +001A6204030583, +001N001481006027
999
WIRE CABLE. ROPE , ORDER BY THE METER, Replaced By: N083334008000
