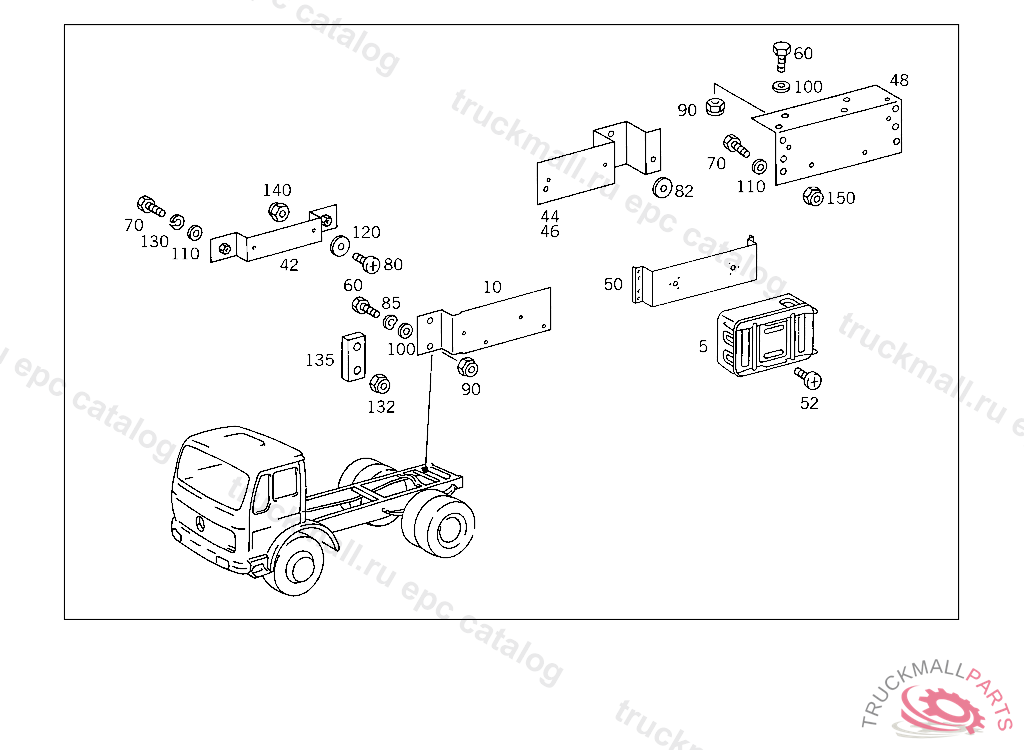

Поз.
Артикул
Описание
5
CABLE CONNECTOR FRAME,REAR
10
BRACKET JUNCTION BOX
10
BRACKET JUNCTION BOX
10
BRACKET JUNCTION BOX
42
BRACKET JUNCTION BOX
44
BRACKET JUNCTION BOX
44
BRACKET JUNCTION BOX
46
BRACKET JUNCTION BOX
48
BRACKET JUNCTION BOX
48
BRACKET JUNCTION BOX
50
BRACKET ELECTRIC CABLE MOUNTING
52
SCREW , Replaced By: N007985005532
52
SCREW CABLE CONNECTOR TO BRACKET AND TO FRAME,RESP. M 5X35
60
SCREW END PIECE TO EXHAUST PIPE M 10X25
60
SCREW , Replaced By: N304017008034
60
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
60
SCREW , Replaced By: N304017008027
70
SCREW PIPE CLAMP
70
SCREW , Replaced By: N304017008021
80
SCREW CABLE CONNECTOR TO BRACKET AND TO FRAME,RESP. M 5X30
80
SCREW JUNCTION BOX TO BRACKET
82
WASHER BRACKET TO COVERING
82
WASHER , Replaced By: N009021010209
85
SPRING WASHER STEERING COLUMN BRACKET TO CAB
90
NUT , Replaced By: N910113010000
90
NUT STRAP TO BRACKET
100
WASHER RADIATOR TO RUBBER MOUNTING
100
WASHER , Replaced By: N000125010532
110
WASHER , Replaced By: N000125008443
110
WASHER EXHAUST MUFFLER TO STRAP
120
WASHER , Replaced By: N009021005205
120
WASHER CABLE CONNECTOR TO BRACKET AND TO FRAME,RESP.
130
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
130
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
132
NUT SUPPORT TO SIDE MEMBER
135
SHIM BRACKET MOUNTING
140
NUT , Replaced By: N910113010002
140
HEXAGON NUT
140
NUT TWO-WAY VALVE TO BRACKET
150
NUT TWO-WAY VALVE TO BRACKET
150
NUT STRAP TO BRACKET
999
BRACKET JUNCTION BOX,5 903514K 067648
999
BRACKET JUNCTION BOX,K 067649
999
BEARING BRACKET TORSION BAR,REAR,K 067649
999
BRACKET , Replaced By: A3835461143
999
BRACKET CABLE CONNECTOR, FROM IDENT NO. 4 276971, 054 FROM IDENT NO. 4 276971-4 314610
