Поз.
Артикул
Описание

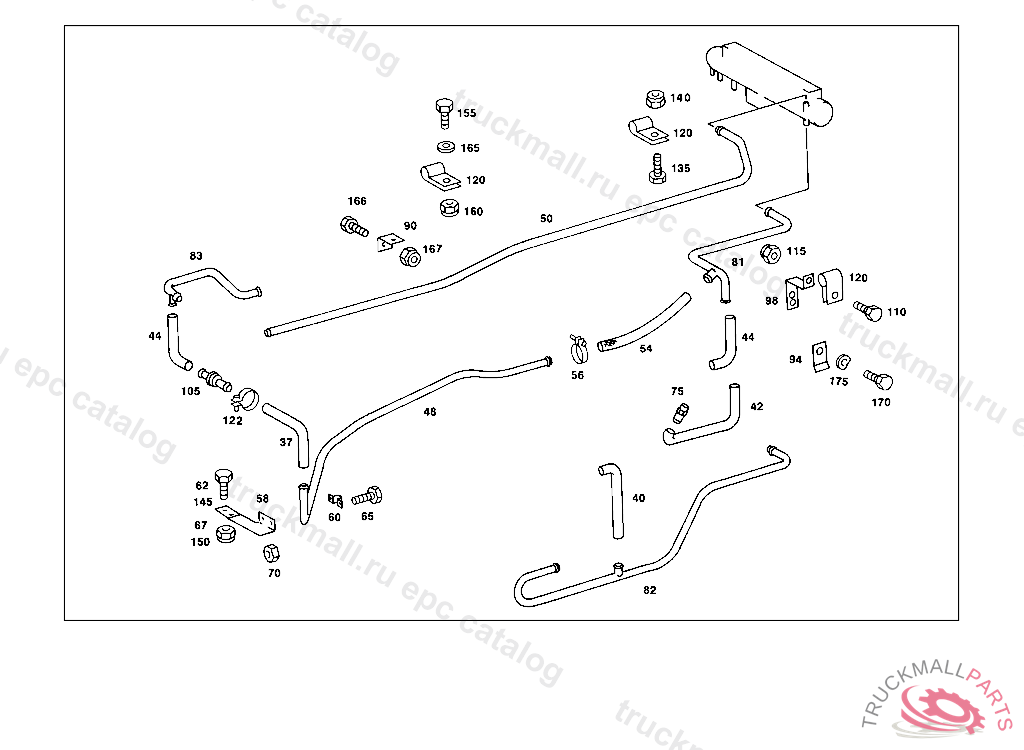

37
HOSE HEATING PIPE
40
HOSE HEATING PIPE
42
HOSE HEATING PIPE
44
HOSE , Replaced By: A3018320523
44
HOSE HEATING PIPE
48
BREATHER PIPE WATER DRAIN
48
BREATHER PIPE RETURN
48
BREATHER PIPE RETURN
48
BREATHER PIPE WATER DRAIN
50
BREATHER PIPE HEATING FEED
50
BREATHER PIPE HEATING FEED
54
HOSE PRESSURE REGULATOR,ANTI-FREEZE DEVICE, ORDER BY THE METER
56
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
56
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
56
CLAMP , Replaced By: N000000000667
58
BRACKET AT CROSS MEMBER
60
CLAMP LINE MOUNTING
62
SCREW PIPE CLAMP
62
SCREW , Replaced By: N304017008021
65
SCREW LICENSE PLATE TO BRACKET
65
SCREW , Replaced By: N304017006020
67
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
67
NUT , Replaced By: N913004008001
70
NUT BALL PIVOT TO LEVER
75
FITTING COOLING WATER LINE
81
LINE HEATING PIPE
82
LINE HEATING PIPE
83
LINE HEATING PIPE
90
BRACKET CABLE HARNESS MOUNTING
90
BRACKET CABLE HARNESS MOUNTING
90
BRACKET , Replaced By: A3873020140
90
BRACKET LINE MOUNTING
90
BRACKET , Replaced By: A3184280240
94
BRACKET HEATING PIPE
98
BRACKET HEATING PIPE
105
VALVE , Replaced By: A0008352772
105
VALVE (CHECK VALVE)
110
SCREW COVER PLATE TO BRACKET
110
SCREW COVER PLATE TO BRACKET
115
NUT , Replaced By: N913004006001
115
NUT PUMP TO BRACKET
115
NUT PUMP TO BRACKET
120
CLAMP , Replaced By: A6739950001
120
CLAMP DELIVERY AND SUCTION LINES TO STEERING
120
CLAMP , Replaced By: N916016011202
120
CLAMP AT BRACKET
120
CLAMP DELIVERY AND SUCTION LINES TO STEERING
120
CLAMP AT BRACKET
122
CLAMP HOSE TO FITTING AND TO OIL TANK
122
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
135
SCREW END PIECE TO EXHAUST PIPE M 10X25
140
NUT , Replaced By: N910113010000
140
NUT STRAP TO BRACKET
145
SCREW , Replaced By: N304017008021
145
SCREW PIPE CLAMP
150
NUT , Replaced By: N913004008001
150
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
155
SCREW , Replaced By: N304017008021
155
SCREW PIPE CLAMP
160
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
160
NUT , Replaced By: N913004008001
165
WASHER EXHAUST MUFFLER TO STRAP
165
WASHER , Replaced By: N000125008443
166
SCREW CONSOLE TO SIDE MEMBER
167
NUT SUPPORT TO SIDE MEMBER
170
SCREW BRACKET TO ENGINE
170
SCREW , Replaced By: N000933016082
175
SPRING WASHER BRACKET TO TIMING CASE
999
HOSE FROM HEATING PIPE AT RADIATOR TO CAB HEATING PIPE
