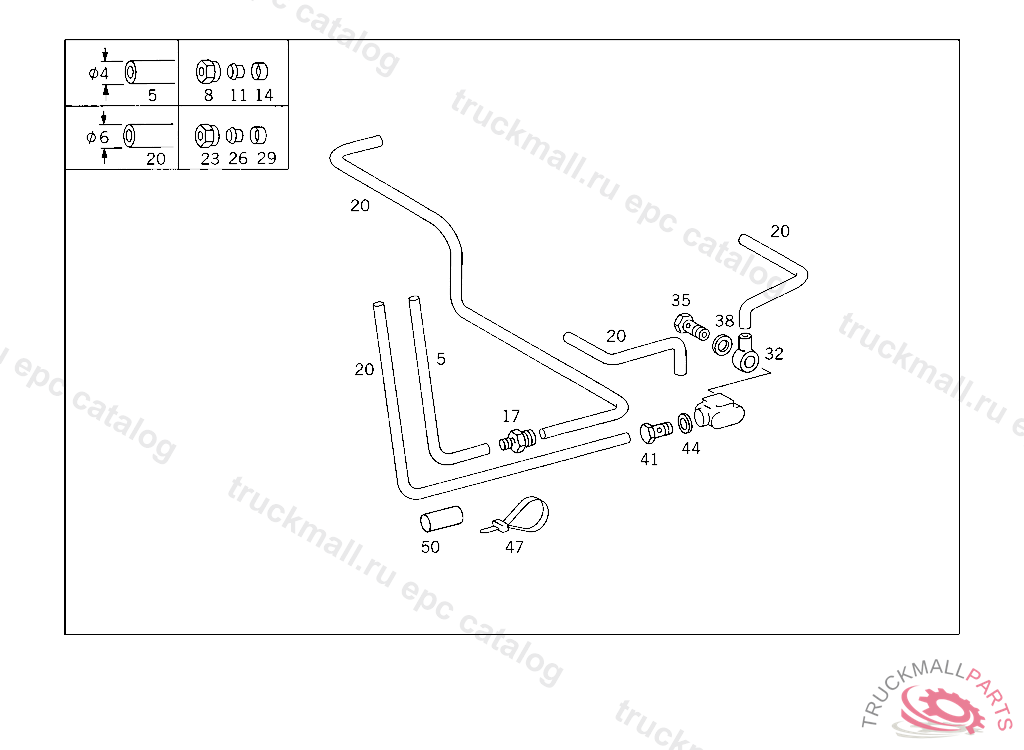

Поз.
Артикул
Описание
5
PLASTIC TUBE2X4MM, ORDER BY THE METER
8
UNION NUT LINE MOUNTING, Replaced By: N000000006521
11
GLAND LINE MOUNTING
14
SLEEVE LINE MOUNTING
17
FITTING , Replaced By: A0019975372
20
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
23
UNION NUT BLEEDING, FROM IDENT NO. 5 033767,EXCEPT FOR 5 039977
26
GLAND BLEEDING, FROM IDENT NO. 5 033767,EXCEPT FOR 5 039977
29
SLEEVE LEAK LINE
32
BANJO UNION HOSE WIDTH, / I.D., 4/10 MM
32
BANJO UNION
35
HOLLOW SCREW RELAY VALVE,CONNECTION: "41"
38
SEAL RINGTO 001 431 72 14
38
SEAL RING RELAY VALVE,CONNECTION: "41"
41
HOLLOW SCREW COMPRESSED AIR LINE TO OPERATING CYLINDER
44
SEAL RING PRESSURE CONNECTION TO AIR COMPRESSOR
47
LOOM TIE ELECTRIC CABLE MOUNTING
47
LOOM TIE , Replaced By: A3459977390
50
INSULATING HOSE COLOR CODE GREEN
50
INSULATING HOSE BLUE
50
INSULATING HOSE COLOR CODE BLUE 2X0,01 MM
50
INSULATING HOSE8X0,01 MM
50
INSULATING HOSE COLOR CODE YELLOW, ORDER BY THE METER
