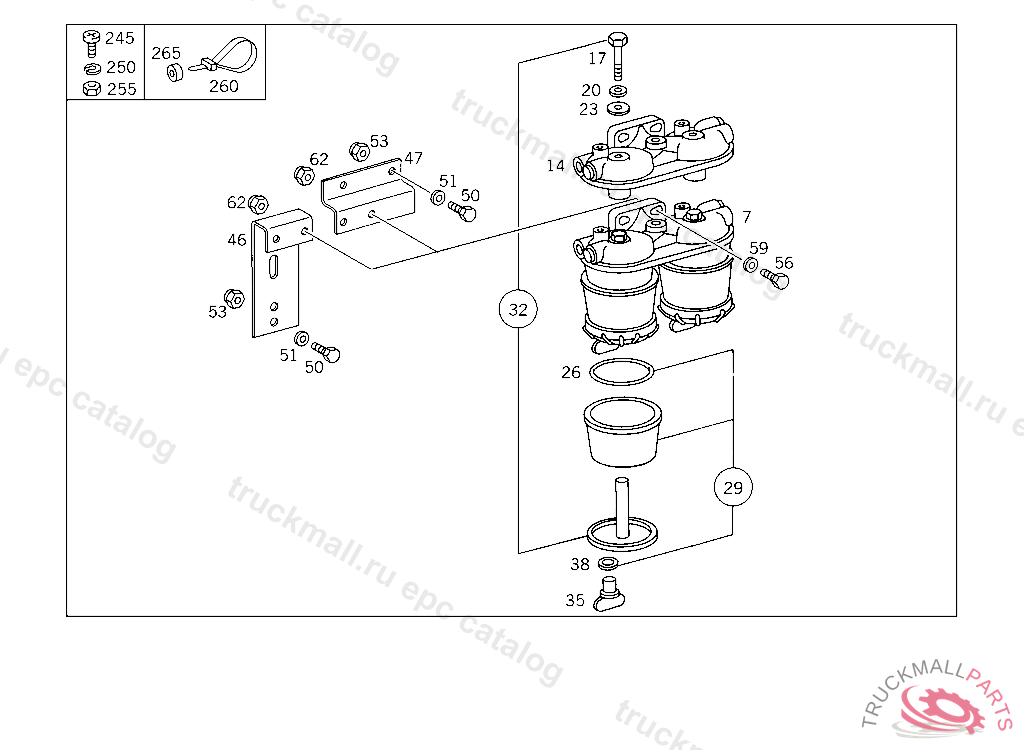

Поз.
Артикул
Описание
7
SEPARATOR WATER SEPARATOR LUCAS
14
COVERTO 388 476 71 69
17
SCREW DELIVERY AND SUCTION HOSES TO COUPLING MOUTH CROSS MEMBER,5 598039
20
WASHERTO 388 476 71 69
23
SEAL RINGTO 388 476 71 69
26
SEAL RINGTO 388 476 71 69
26
SEAL RING , Replaced By: A0149976148
29
INTERMEDIATE PIECETO 388 476 71 69
32
BOTTOMTO 388 476 71 69
35
SCREWTO 388 476 71 69
38
SEAL RINGTO 388 476 71 69
38
SEAL RINGTO 388 476 71 69
46
BRACKET WATER SEPARATOR
46
BRACKET WATER SEPARATOR
47
BRACKET WATER SEPARATOR
50
SCREW TIGHTENER PULLEY TO BRACKET ON ENGINE
50
SCREW SUPPORT TO SIDE MEMBER M 12X1.5X35
50
SCREW CROSS MEMBER TO SIDE MEMBERS
50
SCREW BRACKET TO FRAME M 12X35
50
SCREW SUPPORT TO FRAME M12X1,5X35,D 127794
50
SCREW HAND PUMP TO BRACKET
50
SCREW BRACKET TO FRAME M 12X1.5X30
50
SCREW BATTERY CASE
50
SCREW SUPPORT TO SIDE MEMBER M 12X1.5X30
50
SCREW BRACKET TO FRAME
51
WASHER SUPPORT TO FRAME,D 127794
51
WASHER GROUND CABLE
51
WASHER BRACKET TO FRAME
53
NUT BRACKET TO SIDE MEMBER,XB209706
53
NUT ALTERNATOR TO SUPPORT
53
NUT , Replaced By: N910113014000
56
SCREW ANGLE TO CROSS MEMBER M 10X30
56
SCREW WATER SEPARATOR
56
SCREW BRACKET TO RETARDER
56
SCREW CROSS MEMBER TO SIDE MEMBERS
59
WASHER WATER SEPARATOR
59
WASHER GROUND CABLE
62
NUT BRACKET TO SIDE MEMBER,XB209706
62
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
245
SCREW CAP TO BRACKET
250
LOCK WASHER CABLE TO FUSE BOX
255
NUT
260
LOOM TIE ELECTRIC CABLE MOUNTING
260
LOOM TIE WIRING HARNESS FOR AIR CONDITIONING SYSTEM 205 MM
260
LOOM TIE LINE MOUNTING
260
LOOM TIE COMPRESSED AIR LINE MOUNTING 381 MM
265
WASHER , Replaced By: A3609902340
999
BRACKET , NOT USED
