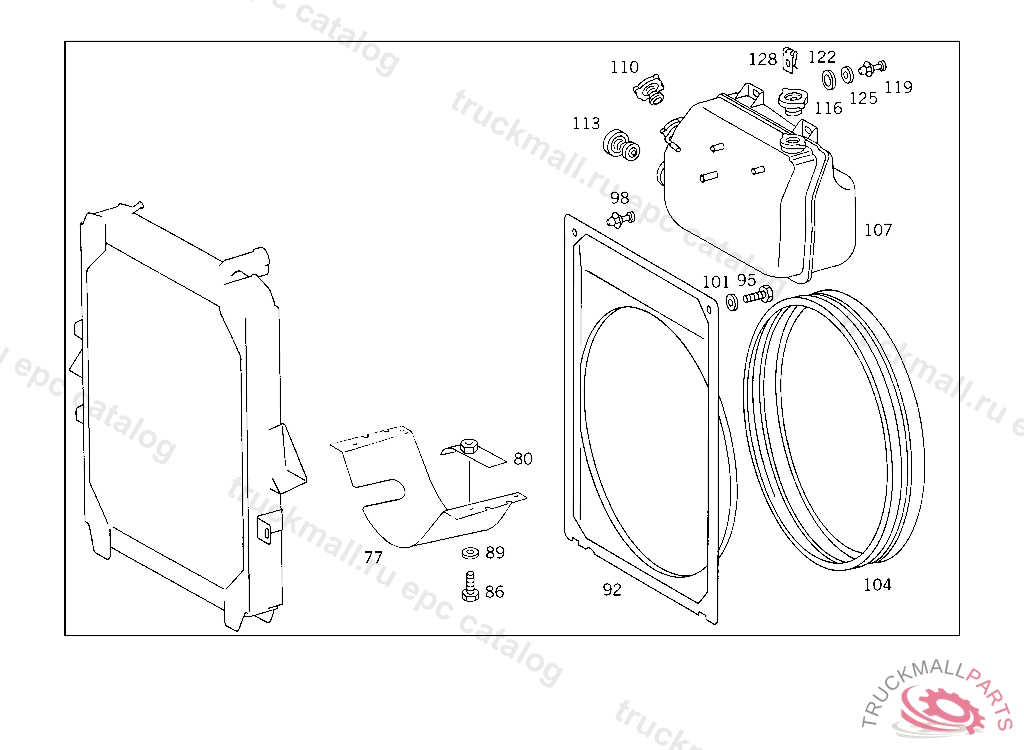

Поз.
Артикул
Описание
77
AIR BAFFLE RADIATOR
80
BRACKET AIR BAFFLE,D 008205
86
SCREW DAMPING PAD TO SUPPORT M 8X45,B 884219
89
LOCK WASHER PARKING BRAKE VALVE TO WINDOW SILL
92
FAN SHROUD RADIATOR
92
FAN SHROUD
98
CLAMPING SLEEVE FAN SHROUD TO RADIATOR
104
BOOT FAN SHROUD
107
TANK (EXPANSION TANK)
110
RADIATOR CAP FILLER NECK
113
RADIATOR CAP
116
RADIATOR CAP CENTRAL
119
RIVET COOLANT LINE ON FAN SHROUD
122
RUBBER MOUNTING EXPANSION TANK TO BRACKET
125
WASHER , Replaced By: N000125017016
128
CLIP RESERVOIR TO CAB FRONT PANEL
128
LOCK AT WATER EXPANSION TANK
