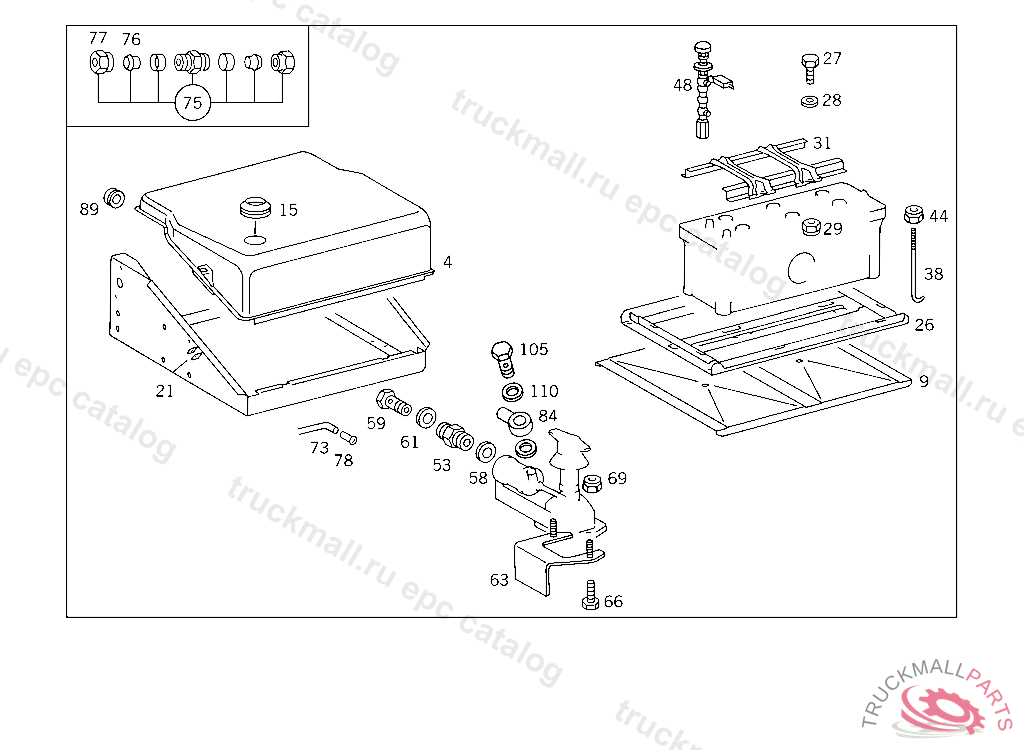

Поз.
Артикул
Описание
4
PROTECTIVE PLATE BATTERY SUPPORT
4
COVER , TO BE ADAPTED DURING ASSEMBLY
9
SUPPORT BATTERY/APPARATUS SUPPORT
15
GROMMET BATTERY SUPPORT
21
BATTERY CASE (BATTERY TRAY)
21
BATTERY CASE , Replaced By: A3875410202
26
RAIL BATTERY BASE FRAME, 415 5 014668 416 5 000515 417 4 972023
26
RAIL BATTERY BASE FRAME, 10/20 FROM CHASSIS 4 347 647,50/60 FROM CHASSIS 4 345 732
27
SCREW BATTERY BASE FRAME TO BATTERY/APPARATUS SUPPORT, 10/20 UP TO CHASSIS 4 347 646,50/60 UP TO CHASSIS 4 345 731
28
WASHER BATTERY BASE FRAME TO BATTERY/APPARATUS SUPPORT, 10/20 FROM CHASSIS 4 347 647,50/60 FROM CHASSIS 4 345 732
29
NUT BATTERY BASE FRAME TO BATTERY/APPARATUS SUPPORT, 10/20 UP TO CHASSIS 4 347 646,50/60 UP TO CHASSIS 4 345 731
31
MOUNTING FRAME BATTERY MOUNTING, 10/20 FROM CHASSIS 4 347 647,50/60 FROM CHASSIS 4 345 732
31
MOUNTING FRAME BATTERY MOUNTING, 10/20 FROM CHASSIS 4 347 647,50/60 FROM CHASSIS 4 345 732
38
CLAMPING SCREW BATTERY MOUNTING
38
CLAMPING SCREW , Replaced By: A3875410524
44
NUT , Replaced By: N913004006001
44
NUT PUMP TO BRACKET
48
VALVE CABLE HARNESS MOUNTING
53
FITTING 3/2-WAY VALVE,CONNECTION: "30"
58
SEAL RING PNEUMATIC VALVE
58
SEAL RING , Replaced By: N007603010110
59
HOLLOW SCREW LINE CONNECTION
61
SEAL RINGTO 001 431 72 14
63
BRACKET BATTERY MASTER SWITCH
66
SCREW PIPE CLAMP
66
SCREW , Replaced By: N304017008021
69
NUT , Replaced By: N913004008001
69
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
73
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
73
PLASTIC PIPE RISING PIPE 4X6 MM
75
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
76
GLAND , Replaced By: A0019901667
76
SEAL CONE
77
UNION NUT
78
SLEEVE LEAK LINE
84
BANJO UNION HOSE WIDTH, / I.D., 4/10 MM
89
GROMMET AIR SPRING VALVE
105
HOLLOW SCREW HEATING CONNECTION
110
SEAL RING LINE CONNECTION
999
BUSHING , Replaced By: N915062004000
999
GROMMET
999
SUPPORT , FOR THE NEW PART NO.,SEE STANDARD VERSION TO BE ADAPTED DURING ASSEMBLY, Replaced By: A3874302239
999
SUPPORT , FOR THE NEW PART NO.,SEE STANDARD VERSION TO BE ADAPTED DURING ASSEMBLY, Replaced By: A3874302239
