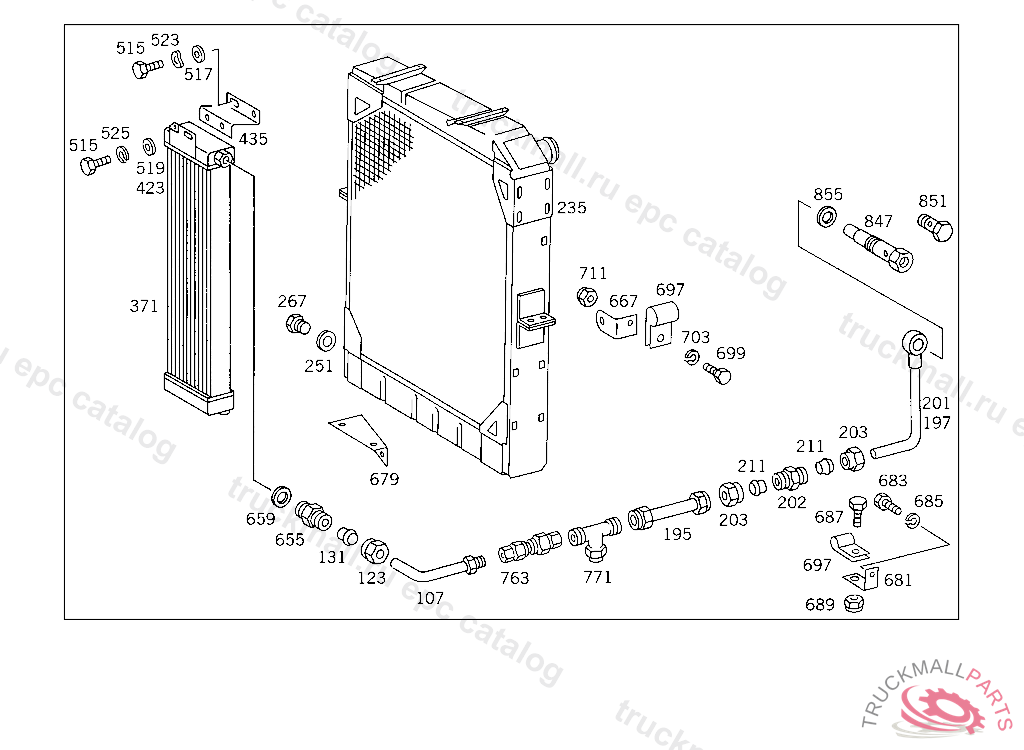

Поз.
Артикул
Описание
107
PIPE FROM OIL COOLER TO RETURN HOSE CONNECTION
107
PIPE FROM OIL COOLER TO FEED HOSE CONNECTION
107
PIPE FROM OIL COOLER TO RETURN HOSE CONNECTION
107
PIPE FROM OIL COOLER TO FEED HOSE CONNECTION
123
UNION NUT LINE MOUNTING
131
SEAL CONE LINE MOUNTING
131
GLAND , Replaced By: A0019901167
195
TUBE FEED AND RETURN LINES TO OIL COOLER, LENGTH AVAILABLE 3000 MM
195
PIPE , Replaced By: A0005516456, +002A0019901167, +002N915017018100
195
PIPE , Replaced By: A0005516456, +002A0019901167, +002N915017018100
195
PIPE , Replaced By: A0005516456, +002A0019901167, +002N915017018100
195
PIPE , Replaced By: A0005516456, +002A0019901167, +002N915017018100
195
PIPE , Replaced By: A0005516456, +002A0019901167, +002N915017018100
195
PIPE , Replaced By: A0005516456, +002A0019901167, +002N915017018100
195
PIPE , Replaced By: A0005516456, +002A0019901167, +002N915017018100
195
PIPE , Replaced By: A0005516456, +002A0019901167, +002N915017018100
195
PIPE , Replaced By: A0005516456, +002A0019901167, +002N915017018100
195
PIPE , Replaced By: A0005516456
197
PIPE FROM CONNECTOR TO TRANSMISSION, TO BE ADAPTED DURING ASSEMBLY
197
PIPE , Replaced By: A6242604885
201
PIPE , Replaced By: A6242604885
201
PIPE , Replaced By: A6242604885
201
PIPE FROM CONNECTOR TO TRANSMISSION, TO BE ADAPTED DURING ASSEMBLY
202
CONNECTION FITTING LINE CONNECTIONS
202
CONNECTION FITTING , Replaced By: N003902018002
203
UNION NUT LINE MOUNTING
211
SEAL CONE LINE MOUNTING
211
GLAND , Replaced By: A0019901167
235
RADIATOR
235
RADIATOR"BEHR"
251
SEAL RING FUEL LINE TO FEED PUMP
267
SCREW PLUG WATER DRAIN
371
RADIATOR OIL COOLER
423
WASHER COMPRESSED AIR LINE TO BRACKET
423
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
435
BRACKET OIL COOLER TO RADIATOR
515
SCREW PUMP TO BRACKET
515
SCREW , Replaced By: N304017006016
517
WASHER , Replaced By: N009021006208
517
WASHER COMPRESSED AIR LINE TO BRACKET
519
WASHER COMPRESSED AIR LINE TO BRACKET
519
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
523
SPRING WASHER LICENSE PLATE TO BRACKET
525
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
655
FITTING OIL LINE TO RADIATOR
659
SEAL RING AIR COMPRESSOR,CONNECTION: "10"
667
BRACKET OIL LINE TO ENGINE, TO BE ADAPTED DURING ASSEMBLY
667
BRACKET , Replaced By: A6202571140
667
BRACKET BRACKET TO BELL HOUSING
679
BRACKET OIL LINE
681
BRACKET LINE MOUNTING
683
SCREW BRACKET TO ENGINE
683
SCREW AT ENGINE MOUNTING,TO MOUNT LINES
683
SCREW , Replaced By: N000961016065
683
SCREW , Replaced By: N000933016082
685
LOCK WASHERROCKINGER TYP 59 G140,59 G150
687
SCREW , Replaced By: N304017006020
687
SCREW LICENSE PLATE TO BRACKET
689
NUT , Replaced By: N913004006001
689
NUT PUMP TO BRACKET
697
CLAMP OIL FILLER PIPE TO BRACKET
697
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
697
CLAMP FEED LINE TO THERMOSTAT
699
SCREW COVER PLATE TO BRACKET
699
SCREW LICENSE PLATE TO BRACKET
699
SCREW PUMP TO BRACKET
699
SCREW , Replaced By: N304017006016
699
SCREW , Replaced By: N304017006020
703
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
711
NUT PUMP TO BRACKET
711
NUT , Replaced By: N913004006001
763
VALVE FEED AND RETURN
763
VALVE (CHECK VALVE)
763
VALVE (CHECK VALVE)
771
FITTING VALVE, Replaced By: N000000006453
771
FITTING VALVE
847
HOLLOW SCREW OIL LINE TO TRANSMISSION
851
HOLLOW SCREW OIL LINE TO TRANSMISSION
855
SEAL RING LINE CONNECTION
999
PLUG CONNECTOR
999
NUT OIL TANK TO BRACKET
999
NUT , Replaced By: N913002006009
999
SCREW LEVER TO ENGINE CONTROL SHAFT
999
PIPE OIL LINE CONNECTION TO OIL COOLER
999
PIPE , Replaced By: A6242604885
999
PIPE , Replaced By: A6242604885
999
PIPE , Replaced By: A0005516456, +002A0019901167, +002N915017018100
999
PIPE , Replaced By: A0005516456, +002A0019901167, +002N915017018100
999
FAN SHROUD RADIATOR
999
BRACKET OIL LINE TO RADIATOR
999
SCREW PLUG , Replaced By: N007604014101
999
BANJO UNION OIL LINE TO TRANSMISSION, NOT USED
999
SCREW , Replaced By: N910105006023
999
RADIATOR
999
RADIATOR , Replaced By: A0005001103
999
CLAMP , Replaced By: N916017011000
