Поз.
Артикул
Описание

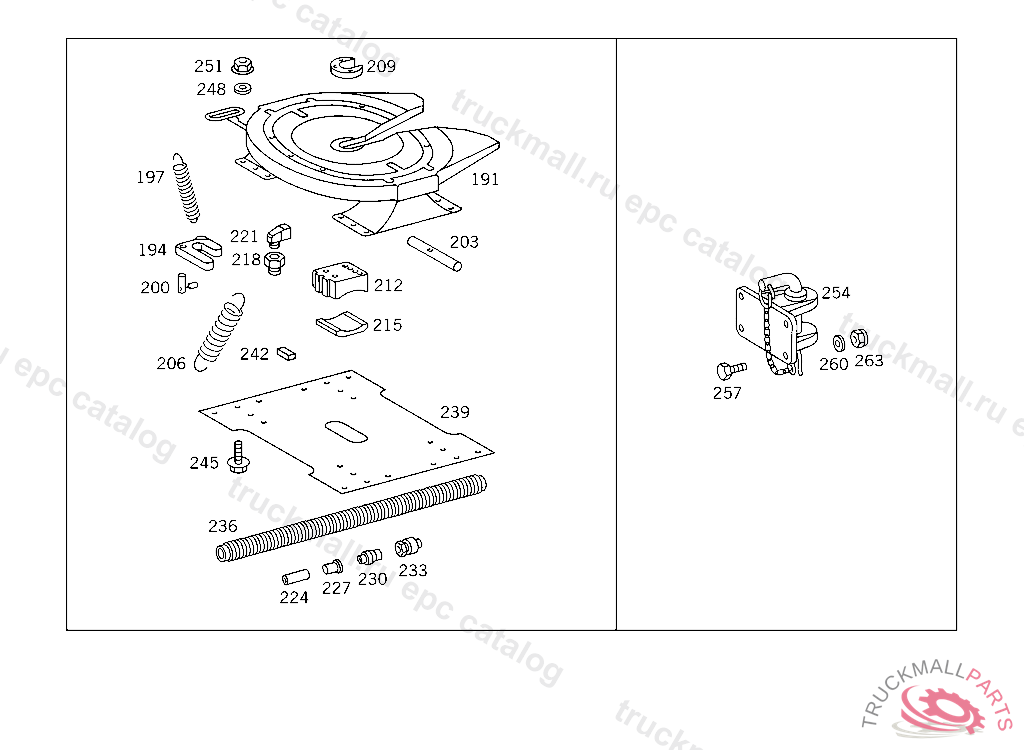

191
SEMITRAILER COUPLING ,025002
191
SEMITRAILER COUPLINGJSK 37 CZ
194
TOW HOOK
197
LOCKING SPRING
200
PIN
203
COUPLING PIN
206
SPRING
209
CENTERING PIECE
212
BUFFER
215
BUFFER
218
CONNECTOR BEARING BRACKET,BRAKE SHAFT,AND BRAKE ANCHOR VOGEL, M 8X1
221
ELBOW , Replaced By: A0005733530
224
HOSE FROM DISTRIBUTOR TO LUBRICATING POINTS 4X0.85 MM, ORDER BY THE METER
227
PIN BUSHING , Replaced By: A0005730653
230
SEAL CONE LINE CONNECTION VOGEL
233
FITTING LINE CONNECTION VOGEL
236
INSULATING HOSE , Replaced By: A0015460030
239
PLATE AT FRAME
242
PLATE
245
SCREW RIGHT FRONT RUBBER MOUNTING M16X1,5X55
245
SCREW BEARING BRACKET TO SIDE MEMBER M 12X50
245
SCREW TRAILER COUPLING TO REAR CROSS MEMBER M 16X65
245
SCREW SHACKLE TO TORSION BAR AND TO CONSOLE M 16X75
245
SCREW BEARING BRACKET AND PLATE TO FRAME M 16X1.5X40
245
SCREW HYDRAULIC CYLINDER BEARING BRACKET TO FRAME M 16X25
245
SCREW , Replaced By: N308676016007
245
SCREW ENGINE SUPPORT TO BELL HOUSING M 16X68
245
SCREW RIGHT FRONT RUBBER MOUNTING M16X1,5X50
245
SCREW GUSSET PLATE TO FRAME M 16X35
248
WASHER TORSION BAR TO BEARING BRACKET, Replaced By: N007349017003
251
NUT TRAILER COUPLING TO REAR CROSS MEMBER M 16
254
TRAILER COUPLING (TOW BAR COUPLING) RINGFEDER TYP 6441 G140
257
SCREW , Replaced By: N308676016004
260
WASHER SHOCK ABSORBER TO UPPER BEARING BRACKET
263
NUT , Replaced By: N910113016001
