Поз.
Артикул
Описание

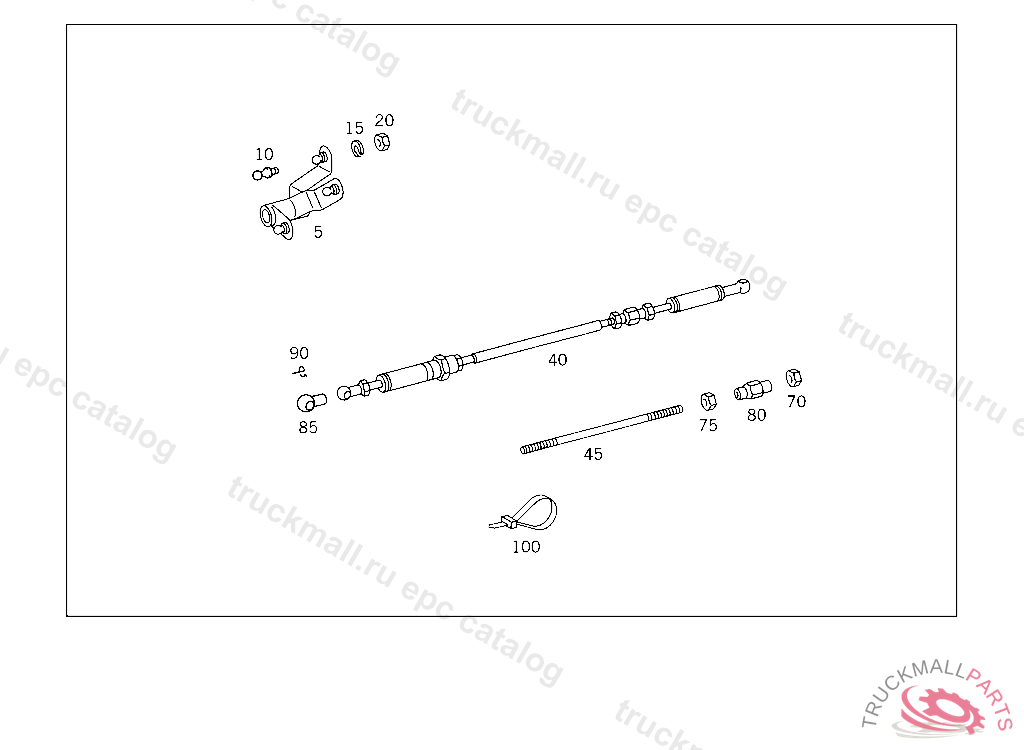

5
LEVER
5
LEVER (DOUBLE LEVER)
10
BALL PIVOT , Replaced By: A3129910120
10
BALL PIVOT LEVER
15
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
20
NUT SPRING-LOADED PUSH ROD
40
SHAFT ,460462
40
ROD
40
SHAFT
45
PULL ROD FROM ACCELERATOR PEDAL TO CONTROL SHAFT BEARING, TO BE ADAPTED DURING ASSEMBLY
45
ROD , Replaced By: A6583001715
45
ROD , Replaced By: A3550700475, +001A4010720224, +001A3053001415, +003N000934006007, +001N000934006012, +001N001479006001, +001N071805010204, +001N071805010403
45
ROD , Replaced By: A3550700475, +001A3053001415, +003N000934006007, +001N000934006012, +001N001479006001, +001N071805010204, +001N071805010403, +001N900331006331
45
ROD , Replaced By: A3550700475, +001A4010720224, +001A3053001415, +003N000934006007, +001N000934006012, +001N001479006001, +001N071805010204, +001N071805010403
45
ROD , Replaced By: A3550700475, +001A4030720824, +001A3053001415, +003N000934006007, +001N000934006012, +001N001479006001, +001N071805010204, +001N071805010403
45
ROD
45
ROD FROM ACCELERATOR PEDAL TO CONTROL SHAFT BEARING
45
ROD
70
NUT SPRING-LOADED PUSH ROD
75
NUT L.H. THREAD
80
TURNBUCKLE TURNBUCKLE
85
BALL SOCKET PULL ROD TO INTERMEDIATE LEVER
90
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
100
LOOM TIE LINE MOUNTING 280 MM
999
SCREW PLUG OIL COOLER,5 360280
999
ROD CONTROL
999
BOOT ROD
999
BRACKET
999
ROD
999
ROD
999
LEVER , UP TO ENGINE 616806 EXCEPT FOR 616100, Replaced By: A4420700122, +001A4420700140
999
ROD
999
LEVER AT INJECTION PUMP
999
OIL PAN ,176065, Replaced By: A4410100013, +001A4219970072, +001N913004006002
999
ROD
999
SHAFT , 402.910 256465 404.901 005579 422.905 047593460461, Replaced By: A4420700323, +001N071803010102, +001N913004006002
999
SHAFT ,460461, Replaced By: A4420700423, +001N071803010102, +001N913004006002
999
OIL PAN , Replaced By: A4410100313
999
OIL PAN , Replaced By: A4410100413
999
OIL PAN ,176066
999
BRACKET BEARING BRACKET
999
LEVER (LOAD RANGE SENSOR)
999
BRACKET BEARING BRACKET
999
BRACKET AT INTAKE MANIFOLD, DISCONTINUED,PART IS NO LONGER REQUIRED
999
SPACER TUBE
999
BRACKET CHOKE
999
BRACKET , Replaced By: A6204202686
999
BRACKET BRACKET TO LONGITUDINAL INTAKE PIPE,064377
999
BRACKET BRACKET TO INTAKE PIPE
999
SCREW , Replaced By: N304017008018
999
BALL STUD. BALL PIVOT TOP B10X4,5 MM
999
BALL PIVOT ROD TO INJECTION PUMP LEVER
999
SCREW SUPPORT TO FENDER
999
HEXAGON HEAD BOLT BRACKET TO NO.1 CROSS MEMBER M8X35
999
THREADED INSERT REPAIR SIZE, TO BE ADAPTED DURING ASSEMBLY
999
NUT PUMP TO BRACKET
999
NUT , Replaced By: N913004006001
