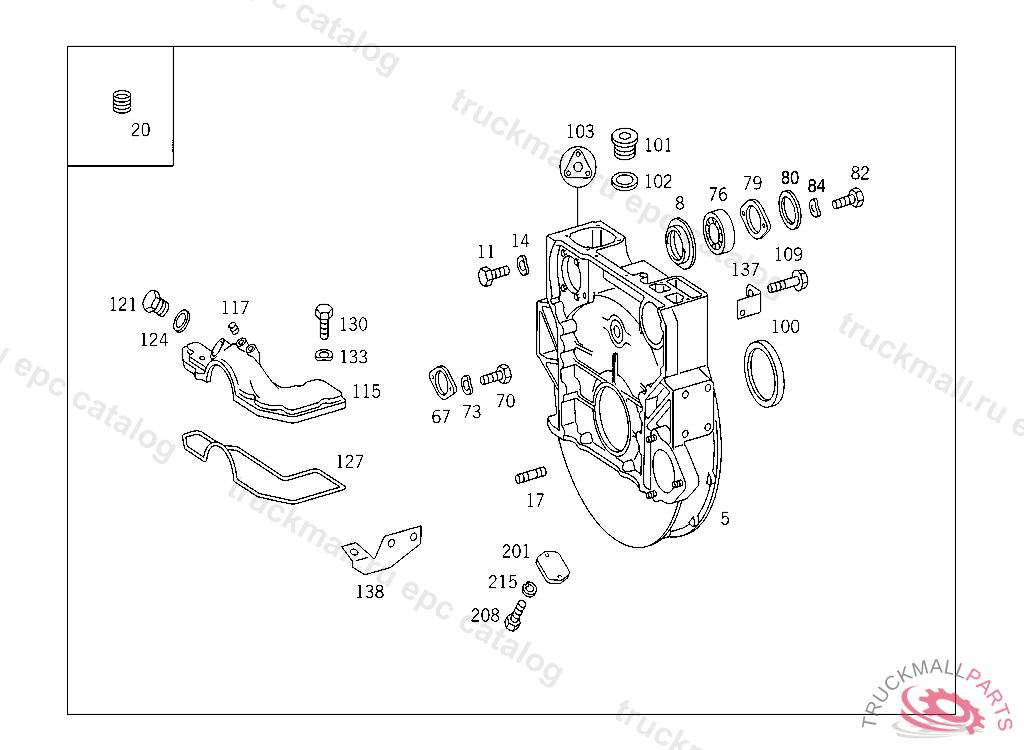

Поз.
Артикул
Описание
5
TIMING CASE
5
TIMING CASE
8
BUSHING AIR COMPRESSOR BEARING
11
SCREW BUSHING TO TIMING CASE M8X22
14
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
14
SPRING WASHER , Replaced By: N000137008212
17
STUD STARTING MOTOR MOUNTING
20
THREADED INSERT ,5 462573
20
THREADED INSERT
67
GUARD PLATE STARTING MOTOR MOUNTING
70
SCREW BRAKE CABLE TO REAR AXLE
70
SCREW , Replaced By: N914125008319
73
SPRING WASHER , Replaced By: N000137008212
73
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
76
CYLINDR. ROLLER BEARING AIR COMPRESSOR BEARING
79
FLANGE
82
SCREW , 000825
100
SEAL RING CRANKSHAFT SEALING,REAR,708527 I.D., 120MM
100
SEAL RING
100
SEAL RING , Replaced By: A0139971447
101
SCREW PLUG OIL COOLER,5 360280
102
SEAL RING FROM PIPE ELBOW TO AIR COMPRESSOR
103
GASKET KIT , Replaced By: A4230104833
103
GASKET KIT TIMING CASE TO CYLINDER CRANKCASE
109
SCREW CONVERTER HOUSING TO TRANSMISSION CASE
109
SCREW CONVERTER HOUSING TO TRANSMISSION CASE
115
COVER
117
THREADED INSERT
121
SCREW PLUG
121
SCREW PLUG , Replaced By: A4229970230
124
SEAL RING TO LOCK DELIVERY BEGINNING INSPECTION HOLE TO 423 010 02 17, 38
127
SEAL RING COVER TO TIMING CASE
130
SCREW , Replaced By: N304017008027
130
HEXAGON HEAD BOLT. SCREW COMPRESSED AIR LINE TO LEFT SIDE MEMBER
130
HEXAGON HEAD BOLT CLAMP AT SUPPORTING RAIL M 8X30
133
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
133
SPRING WASHER , Replaced By: N000137008212
137
ANGLE LINE MOUNTING
138
BRACKET LINE MOUNTING
201
COVER TIMING CASE
208
SCREW CABLE HARNESS MOUNTING
215
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
999
SEAL RING , Replaced By: A4420150060
999
SEAL RING OIL COOLER CONNECTION
