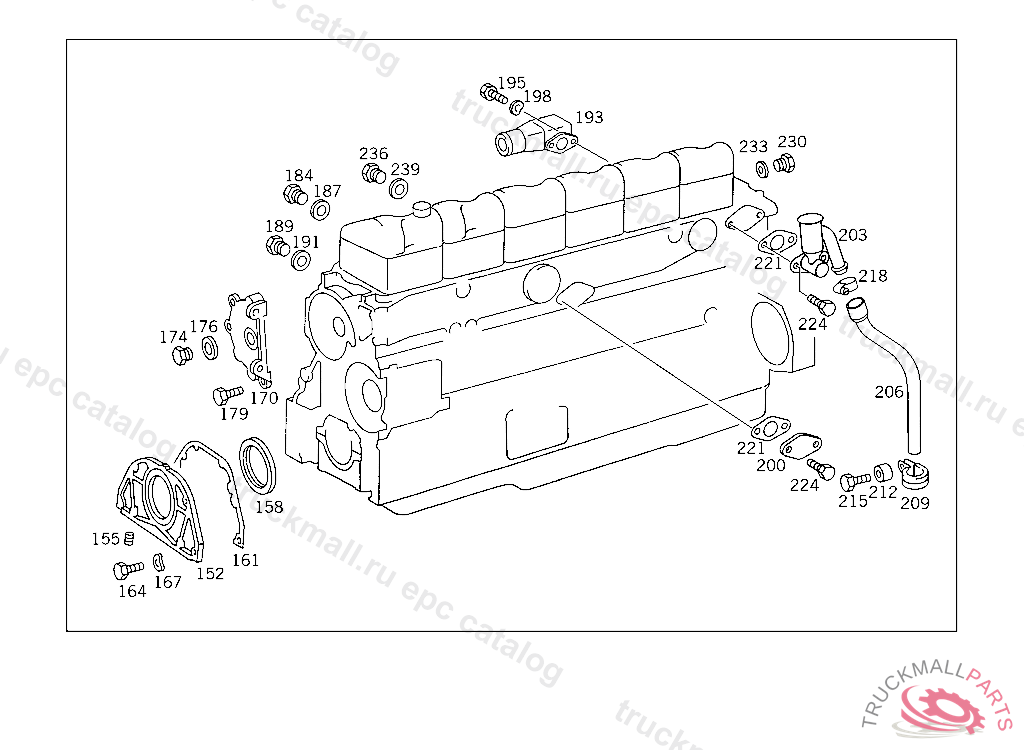

Поз.
Артикул
Описание
152
COVER CYLINDER CRANKCASE,FRONT
152
COVER , Replaced By: A4030110107
152
COVER , Replaced By: A4570111107
155
THREADED INSERT
158
SEAL RING , Replaced By: A0259973947
158
SEAL RING CRANKSHAFT SEALING,FRONT,708527 ONLY USE FOR HEAVY GROOVES AND SCORE MARKS AND HEAVY GROOVES ONCRANKSHAFT JOURNAL. INSTALL SEALING RING TOGETHER WITH RACE A 442 031 00 27 I.D., 105MM
158
SEAL RING CRANKSHAFT SEALING,FRONT,708528 IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.: A 014 997 46 47 + A 442 031 00 27 I.D., 100MM
161
GASKET
161
GASKET , Replaced By: A5410110080
161
GASKET COVER TO CYLINDER CRANKCASE,FRONT
164
SCREW BRACKET TO CONSOLE M 8X25
167
SPRING WASHER STEERING SHAFT BEARING TO CAB
170
COVER
170
COVER , Replaced By: A4750117007
174
SCREW PLUG , 032,033,040,041: FROM CHASSIS 1600092 132,133,140,141: FROM CHASSIS 1600092 FOR L.H.D. UP TO CHASSIS 422483 FROM CHASSIS SEE SPARE PARTS LIST 814
176
SEAL RING OIL DRAIN 30X36 MM
179
SCREW BRACKET TO CROSS MEMBER
179
SCREW BRACKET TO TRANSMISSION,D 203092
184
SCREW PLUG WATER SEPARATOR
187
SEAL RINGTO 000 553 03 05,000 553 18 05,
189
SCREW PLUG WATER DRAIN
191
SEAL RING ON OIL PUMP HOUSING
193
OUTLET
195
SCREW ANGLE TO CROSS MEMBER M 10X30
195
SCREW BRACKET TO REAR CROSS MEMBER
198
SPRING WASHERTO 000 268 46 01
200
FLANGE COOLING WATER FEED LINE LOCK
203
BREATHER PIPE ,707083
206
BREATHER PIPE ,707083
209
CLAMP HOSE TO BRACKET 25/20,5 206397
212
BUSHING BREATHER PIPE TO TIMING CASE,707083
215
SCREW COLD START SYSTEM TO BRACKET
218
CLAMP
218
CLAMP , Replaced By: N000000000670
221
GASKET. SEAL , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A3559970149
224
SCREW , Replaced By: N304017010040
230
SCREW PLUG
233
SEALING RING. SEAL RING DELIVERY LINE TO PUMP
236
SCREW PLUG AT TANK
239
SEALING RING. SEAL RING DELIVERY LINE TO STEERING
999
ENGINE
999
HOSE25X34X700, NOT USED
