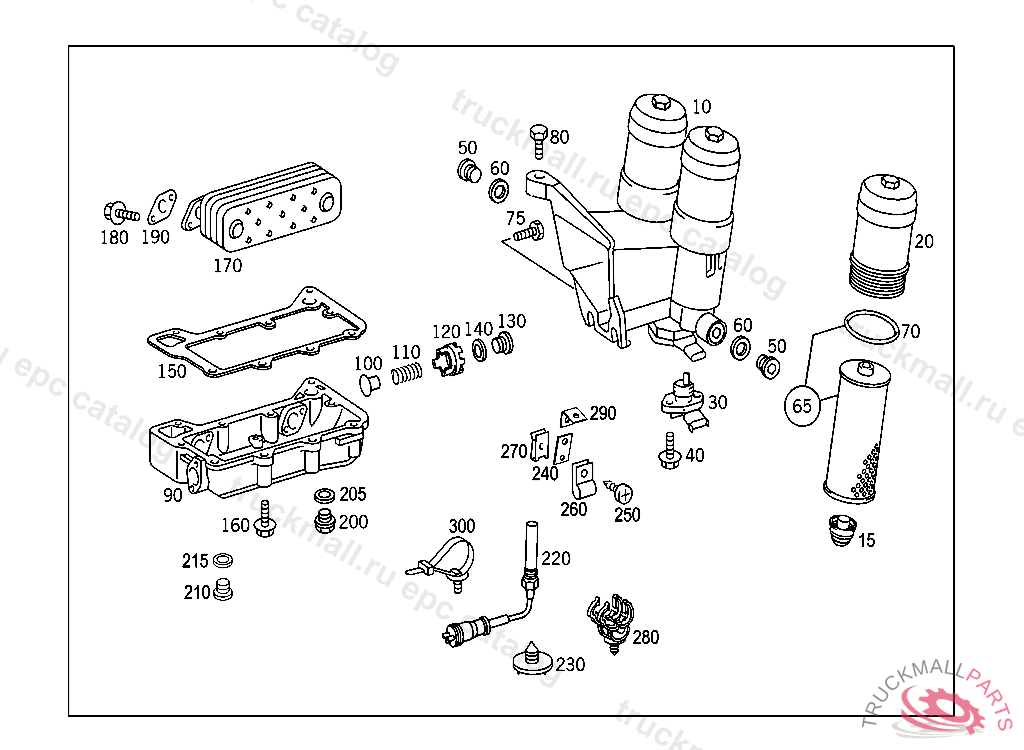

Поз.
Артикул
Описание
10
OIL FILTER
15
PRESSURE RELIEF VALVE (NON-RETURN VALVE)
20
COVER
30
SENDER UNIT OIL PRESSURE SENDER UNIT
40
SCREW PRESSURE SENSOR ON OIL FILTER HOUSING
50
SCREW PLUG DRAIN
60
SEALING RING NON-RETURN OIL VALVE
65
TS FILTER INSERT FILTER ELEMENT, Replaced By: A9061800209
70
SEAL RING FILTER BOWL TO FILTER HEAD
75
HEXAGON HEAD BOLT. SCREW FRONT EXHAUST PIPE TO BRACKET
80
HEXAGON HEAD BOLT BRACKET TO SIDE MEMBER M12X1.5X35
90
HOUSING OIL COOLER
90
HOUSING OIL COOLER
150
GASKET OIL FILTER HEAD & OIL COOLER COVER WITH OIL COOLER TO CRANKCASE
150
GASKET OIL COOLER HOUSING TO CYLINDER CRANKCASE
160
SCREW , Replaced By: A0019909404
160
SCREW BRACKET TO SIDE MEMBER M10X35
160
HEXAGON HEAD BOLT. SCREW BRACKET TO TRANSMISSION M 10X50
170
OIL COOLER
180
SCREW ON STOP M 8X65
190
SEAL. GASKET , Replaced By: A3661880880
200
SCREW PLUG , Replaced By: A1119970330
205
SEALING RING
210
SCREW PLUG, FILLING. SCREW PLUG PLUG FOR OIL DUCT ON OIL COOLER SIDE OF CRANKCASE
210
SCREW PLUG, FILLING. SCREW PLUG LONGITUDINAL OIL DUCT COVER ON OIL COOLER SIDE M16X1,5
215
SEALING RING OIL PRESSURE GAUGE SENDER UNIT
220
SENDER UNIT OIL LEVEL,099999
220
SENDER UNIT OIL LEVEL SENDER UNIT
240
BRACKET CONSOLE TO SIDE MEMBER
250
SHEET METAL SCREW RELAY
260
CLAMP SENSOR CABLE TO FRONT AXLE
270
LOCK , Replaced By: A0029948145
280
BRACKET SPEED SENDER UNIT,067700
290
ANGLE , Replaced By: A3604280243
