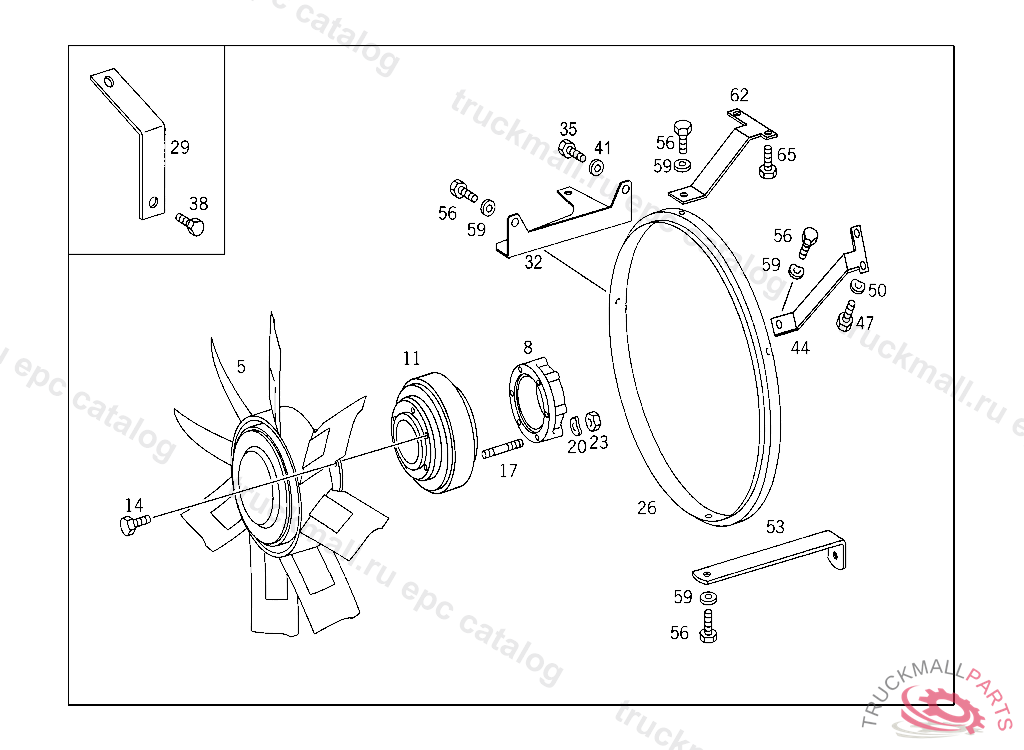

Поз.
Артикул
Описание
5
FAN 8-BLADE
5
FAN , Replaced By: A0002006123
8
INTERMEDIATE PIECE
17
STUD BOLT FAN,INTERMEDIATE PIECE,AND PULLEY TO HUB OR TO DAMPER,RESP. M 8X40TO 000 200 28 23
20
SPRING WASHER BRAKE SHOE WITH LINING
23
NUT
26
AIR BAFFLE (SHROUD RING)
32
BRACKET SHROUD RING
38
SCREW ,R 034014
44
BRACKET SHROUD RING,889439
47
SCREW SOLENOID VALVE TO BRACKET
56
SCREW BRACKET TO FAN SHROUD M 10X16
59
WASHER BEARING BRACKET TO SIDE MEMBER
62
BRACKET SHROUD RING,889440
65
SCREW BRACKET TO CRANKCASE
999
BOOT SHROUD RING
