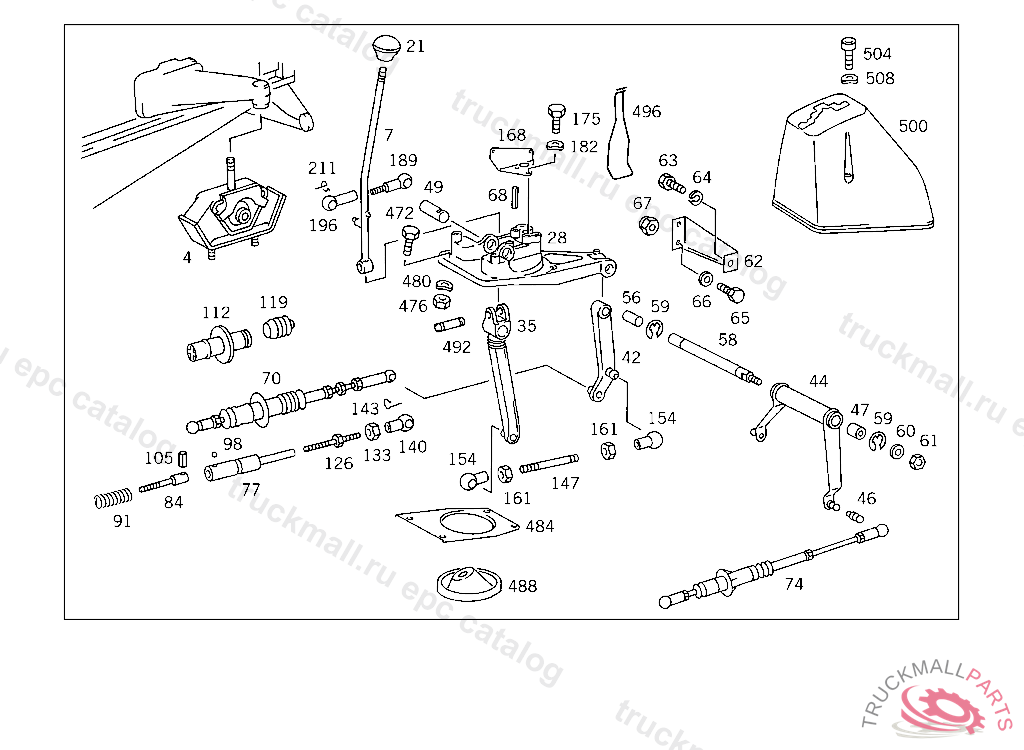

Поз.
Артикул
Описание
4
RUBBER MOUNTING FRONT LEFT, UP TO IDENT NO. 261401, FROM IDENT NO. 500001-572627
4
RUBBER MOUNTING FRONT LEFT, FROM IDENT NO. 261793-499999,FROM IDENT NO. 572628
4
RUBBER MOUNTING FRONT LEFT, FROM IDENT NO. 261793-499999,FROM IDENT NO. 572628
7
SHIFT LEVER
7
SHIFT LEVER , Replaced By: A6012601639
21
HANDLE , Replaced By: A3372600040
21
HANDLE (GEARSHIFT LEVER KNOB)
28
BEARING BRACKET SHIFTING LEVER
35
LEVER BEARING BRACKET
35
LEVER , Replaced By: A6012601937
35
LEVER BEARING BRACKET
42
LEVER BEARING BRACKET
42
LEVER BEARING BRACKET
44
LEVER BEARING BRACKET
46
BALL PIVOT BOTTOM B13X5 MM
47
BUSHING
49
PIVOT PIN LEVER TO BEARING BRACKET
56
PIN BEARING BRACKET
58
PIN LEVER TO BEARING BRACKET
59
LOCK PLATE LEVER TO STRUT
60
WASHER STRUT TO CROSS MEMBER
60
WASHER , Replaced By: N007349010007
61
NUT CROSS MEMBER TO SIDE MEMBERS
62
BRACKET LEVER TO BEARING BRACKET
63
HEXAGON HEAD BOLT BELLOWS TO BRACKET M8X12
64
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
65
SCREW COVER PLATE TO COVER PLATE M 6 X 12
65
SCREW , Replaced By: N304017006018
66
WASHER SWITCH TO FIRE WALL
67
NUT PUMP TO BRACKET
67
NUT , Replaced By: N913004006001
68
CLAMPING PIN BEARING BRACKET
70
PULL ROD SHIFTING ROD
74
PULL ROD SHIFTING ROD
77
CONNECTOR
84
ROD
91
SPRING
98
BALL P.T.O. SHAFT
105
CLAMPING SLEEVE
112
STOP
119
BOOT PULL ROD
119
BOOT , Replaced By: A3575450245
126
PULL ROD BRAKE POWER REGULATOR CONTROL, TO BE ADAPTED DURING ASSEMBLY
126
PULL ROD BRAKE POWER REGULATOR
133
NUT FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
140
BALL SOCKET PULL ROD
143
SECURING CLIP. CIRCLIP
147
PULL ROD BRAKE POWER REGULATOR CONTROL 200 MM, TO BE ADAPTED DURING ASSEMBLY
154
BALL SOCKET ROD TO BALL PIVOT
161
NUT FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
168
BRACKET BEARING BRACKET
175
SCREW LICENSE PLATE TO BRACKET
175
SCREW , Replaced By: N304017006020
182
SPRING WASHER LICENSE PLATE TO BRACKET
189
PULL ROD , Replaced By: A3092601689
196
BALL SOCKET
211
SECURING CLIP. CIRCLIP
472
SCREW PIPE CLAMP
472
SCREW , Replaced By: N304017008021
476
NUT FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
480
SPRING WASHER , Replaced By: N000137008212
480
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
484
BRACKET , Replaced By: A6012600262
484
BRACKET BEARING BRACKET
488
BOOT BEARING BRACKET
492
PIVOT PIN SHIFT LEVER
496
SPRING SHIFT LEVER
500
CASE SHIFT LEVER
504
SCREW OIL LINES TO ENGINE M 6X70
508
SPRING WASHER LICENSE PLATE TO BRACKET
999
INTERMEDIATE PIECE FROM CLUTCH MASTER CYLINDER TO CLUTCH HOSE, FROM IDENT NO. 941506, P 000001 ALSO INSTALLED ON 899081-941503 ONLY WITH OM601/OM602 ENGINE
999
SLAVE CYLINDER , Replaced By: A0012956807
999
SLAVE CYLINDER CLUTCH OPERATION TEVES
999
STOP FULL THROTTLE
999
SLEEVE LINK
999
BOOT
999
HANDLE (GEARSHIFT LEVER KNOB)
999
HANDLE SHIFT LEVER,556499
999
SLOTTED GATE
999
PLATE PLATE TO SHIFT CASE,P 068310
999
BOOT CAB SEALING,781683, 10/50820177, 20/60
999
WASHER
999
BEARING BRACKET CLUTCH PEDAL AND BRAKE PEDAL, UP TO IDENT NO. 941505 EXCEPT FOR 899081-941503 ONLY WITH OM601/OM602 ENGINE
999
BEARING BRACKET CLUTCH PEDAL AND BRAKE PEDAL, FROM IDENT NO. 941506, P 000001 ALSO INSTALLED ON 899081-941503 ONLY WITH OM601/OM602 ENGINE
999
COVER PLATE MASTER CYLINDER TO CONSOLE
999
HOSE FROM HYDRAULIC LINE TO CLUTCH SLAVE CYLINDER, UP TO IDENT NO. 941505 EXCEPT FOR 899081-941503 ONLY WITH OM601/OM602 ENGINE
999
HOSE
999
HOSE FROM HYDRAULIC LINE TO CLUTCH SLAVE CYLINDER, FROM IDENT NO. 941506, P 000001 ALSO INSTALLED ON 899081-941503 ONLY WITH OM601/OM602 ENGINE
999
SCREW PLUG
999
HOSE FROM HYDRAULIC LINE TO CLUTCH SLAVE CYLINDER, FROM IDENT NO. 941506, P 000001 ALSO INSTALLED ON 899081-941503 ONLY WITH OM601/OM602 ENGINE
999
ROD FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE, UP TO IDENT NO. 941505 EXCEPT FOR 899081-941503 ONLY WITH OM601/OM602 ENGINE
999
ROD FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE, 10/50 FROM IDENT NO. 240085-499999-P 000001 ALSO INSTALLED ON 230112-230115,230202,230331-230335,234605,234726,235450,238246,238997,239955. 20/60 FROM IDENT NO. 240114-499999 ALSO INSTALLED ON 237249,239122 FROM IDENT NO. 556500 ALSO INSTALLED ON 548162,551144,551145,551405,551606,552633 P 000001 UP TO IDENT NO. 941505 EXCEPT FOR 899081-941503 ONLY WITH OM601/OM602 ENGINE
999
ROD LINK
999
ROD
999
ROD
999
BRACKET SENSOR CABLE TO FRONT AXLE
999
STAY BRAKE FLUID RESERVOIR
