Поз.
Артикул
Описание

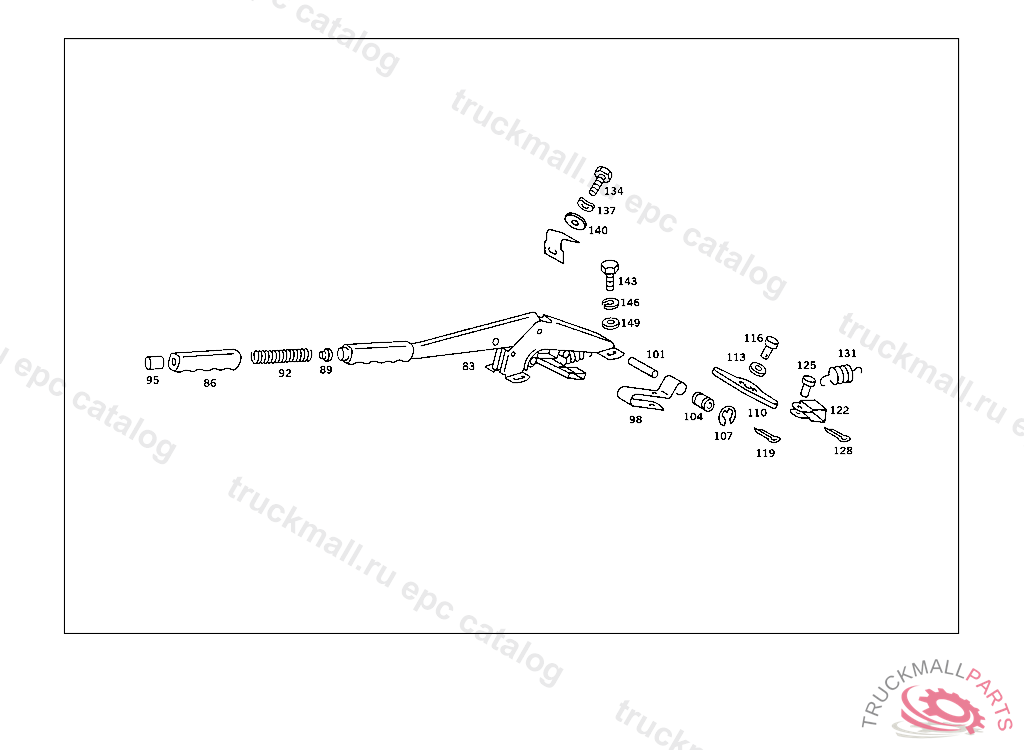

83
PARKING BRAKE
86
HANDLE
89
WASHER
92
SPRING
95
FASTENER BUTTON
98
CONNECTOR
101
PIN
104
ROLLER
107
LOCK PLATE
110
LEVER
113
SPACER WASHER
116
PIN CYLINDER TO BRACKET
119
COTTER PIN
122
CONNECTOR
125
PIN
128
COTTER PIN
131
SPRING
134
SCREW COVER PLATE TO COVER PLATE M 6 X 10
134
SCREW , Replaced By: N304017006034
137
SPRING WASHER LICENSE PLATE TO BRACKET
140
WASHER COMPRESSED AIR LINE TO BRACKET
140
WASHER , Replaced By: N009021006208
143
SCREW PIPE CLAMP
143
SCREW , Replaced By: N304017008021
146
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
149
WASHER EXHAUST MUFFLER TO STRAP
149
WASHER , Replaced By: N000125008443
