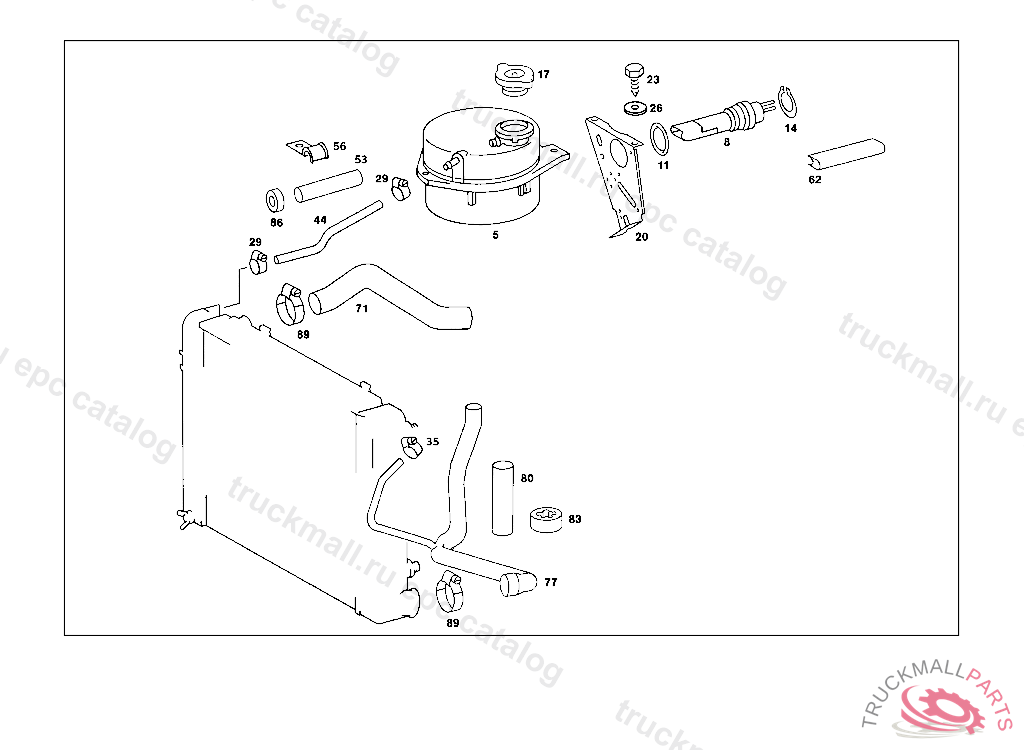

Поз.
Артикул
Описание
5
TANK
8
SWITCH COOLING WATER LEVEL INDICATOR
11
SEAL RING
14
LOCK RING MAIN SHAFT,FRONT
17
CLOSING COVER RADIATOR
17
RADIATOR CAP
17
FILLER CAP , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. F 205503, Replaced By: A1245000406
20
BRACKET , Replaced By: A1075010020
20
BRACKET , 023 009850 024 007850 043 011508 044 021172 ALSO INSTALLED ON 021165,021170.
23
SHEET METAL SCREW
26
WASHER , Replaced By: N009021005205
26
WASHER CABLE CONNECTOR TO BRACKET AND TO FRAME,RESP.
29
HOSE CLAMP LINE MOUNTING
29
CLAMP , Replaced By: A0059970190
35
CLAMP , Replaced By: A0069970490
35
LOOM TIE , Replaced By: N000000000668
44
HOSE , Replaced By: N000000000734
44
HOSE ENGINE BREATHING 8X15X2550MM, TO BE ADAPTED DURING ASSEMBLY
53
INSULATING HOSE16X1 MM, ORDER BY THE METER
56
CLAMP , UP TO CHASSIS107.024 012078 107.044 029875
62
EDGE GUARD SECTION , Replaced By: A0029873572
71
HOSE TOP
77
HOSE BOTTOM
80
HOSE COOLING WATER HOSE,BOTTOM 260 MM, ORDER BY THE METER
83
RUBBER RING
83
RUBBER RING
86
RUBBER RING
89
LOOM TIE. CLAMP BRAKE HOSE 45-55 MM, DISCONTINUED,PART IS NO LONGER REQUIRED
89
LOOM TIE. CLAMP HOSE FASTENING
89
CLAMP , Replaced By: A0069974390
89
CLAMP , Replaced By: A0069970690
