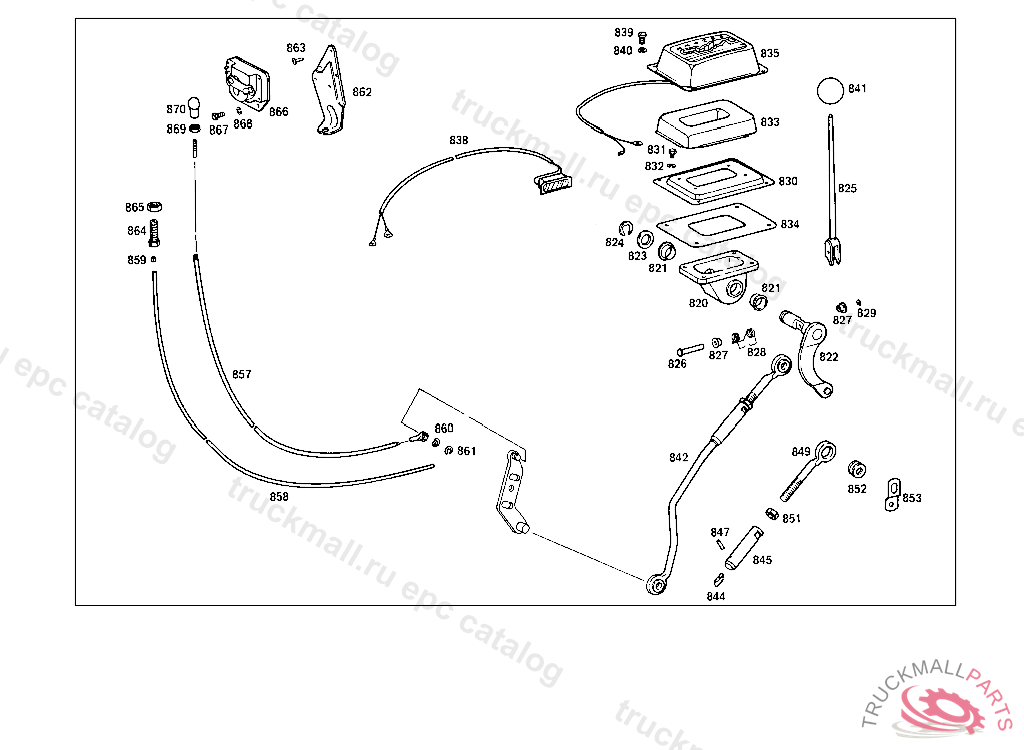

Поз.
Артикул
Описание
820
CASE
820
CASE
821
BUSHING
822
LEVER
823
WASHER
824
LOCK RING REVERSE SPEED STOP
825
SHIFT LEVER
826
PIN
827
BUSHING
828
SPRING
829
LOCK , Replaced By: N912002006000
830
BRACKET
831
SCREW SHUT-OFF VALVE TO BRACKET
832
LOCK WASHER 3/2-WAY SOLENOID VALVE TO BRACKET
833
BOOT
834
SHIM
835
GUIDE PLATE
838
PLATE
839
SCREW
840
SPRING WASHER LICENSE PLATE TO BRACKET
841
HANDLE , 108.018,019 071883 EXCEPT FOR 071802,071873 109.016 UNTIL PRODUCTION STOP 109.056 003758 111.024,025 005065 111.026,027 002941
842
SHIFTING ROD
842
SHIFTING ROD , Replaced By: A1102605033
844
SEAL
845
GUIDE
847
RIVET
849
END PIECE
851
NUT
852
BUSHING
853
LOCK
857
WIRE CABLE
858
INSULATING HOSE5 X 0.6 MM, ORDER BY THE METER
859
SEAL RING
860
SPRING WASHER LICENSE PLATE TO BRACKET
861
LOCK PLATE
862
BRACKET
863
SCREW
863
SHEET METAL SCREW , Replaced By: N000000002062
864
SPACER TUBE
865
NUT
866
SWITCH,AUTOMATIC
867
SCREW COVER PLATE TO COVER PLATE M 6 X 10
867
SCREW , Replaced By: N304017006034
868
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
869
NUT , 024,025 UP TO CHASSIS 002863 EXCEPT FOR, SEE FOOTNOTE 3
870
BALL SOCKET LINK
870
BALL SOCKET , Replaced By: A6089910022
999
HOLLOW SCREW , Replaced By: N915036010108
999
HOLLOW SCREW FUEL LINE TO FEED PUMP
999
THREADED INSERT REPAIR SIZE
999
THREADED INSERT REPAIR SIZE
999
THREADED INSERT REPAIR SIZE
999
THREADED INSERT
999
NUT
999
NUT BATTERY MOUNTING
999
SCREW BRACKET TO CROSS CONNECTION STRUT
999
SCREW PIPE CLAMP
999
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
999
SCREW COVER PLATE TO COVER PLATE M 6 X 12
999
SCREW PUMP TO BRACKET
999
BULB2W
999
BULB BLINKER LAMP, FOR U.S.A.
999
SCREW PLUG FUEL TANK
999
SCREW PLUG , Replaced By: N007604014110
999
SEAL RING
999
SEAL RING
999
SEAL RINGTO 001 431 72 14
999
NUT
999
NUT , Replaced By: N304032008006
999
NUT CYLINDER TO BRACKET TO0002902112
999
NUT BALL PIVOT TO LEVER
999
NUT TACHOGRAPH TO BRACKET
999
SCREW , Replaced By: A0089907401
999
SCREW , Replaced By: N304017008021
999
SCREW , Replaced By: N304017008034
999
SCREW , Replaced By: N304017008016
999
SCREW
999
SCREW
999
SCREW COVER PLATE TO BRACKET
999
SCREW , Replaced By: N304017006018
999
SCREW COVER PLATE TO BRACKET
999
SCREW OIL TANK TO BRACKET
999
SCREW HYDRAULIC CLUTCH TO ENGINE, 021,023 UP TO CHASSIS 086009
999
GROOVED BALL BEARING , 322 UP TO IDENT NO. 036634 EXCEPT FOR 036376,036449,036450,036452-036454 323 UP TO IDENT NO. 006437 328 UP TO IDENT NO. 012103 EXCEPT FOR 011917 L 338 UP TO IDENT NO. 002999 EXCEPT FOR 002938 LP 338 UP TO IDENT NO. 001122 340 UP TO IDENT NO. 000338 EXCEPT FOR 000327,000328
999
LOCK RING SHOCK ABSORBER TO BRACKET,1D 006005
999
SPRING WASHER GROUND CABLE TO TRANSMISSION
999
SPRING WASHER AT GENERATOR TERMINAL D+, 010,10/50 UP TO CHASSIS 066175,010,12/52 UP TO CHASSIS 067208 EXCEPT FOR 067205,010,20/60 UP TO CHASSIS 065672,010,22/62 UP TOCHASSIS 068683 012,10/50 UP TO CHASSIS 151591 EXCEPT FOR,SEE FOOTNOTE 074,012,12/52 UP TO CHASSIS 153776 EXCEPT FOR 153758,153760,153771 012,20/60 UP TO CHASSIS 148879 EXCEPT FOR 148827,148837,148844,148850,148852,012,22/62 UP TO CHASSIS 158113
999
SPRING WASHER , Replaced By: N000137004202
999
LOCK WASHER TAIL LAMP TO BRACKET
999
WASHER , UP TO CHASSIS: 017 029988 114 000523 117 064694
999
SCREW STEERING COLUMN PANELLING M 5X12
999
SCREW CLAMP MOUNTING
999
SCREW , 015 UP TO TRANSMISSION 005207
999
PIN
999
FILTER RANGE OF DELIVERY COMPRISES:, 021,023 FROM TRANSMISSION 006751-009935, FROM TRANSMISSION 023011
999
PLUG , 014 FROM TRANSMISSION 000904, 015 FROM TRANSMISSION 006447
999
SCREW PLUG , 014 UP TO TRANSMISSION 000903
999
SPRING , 015 UP TO TRANSMISSION 005207
999
SPRING , NO LONGER AVAILABLE
999
SPRING , TO 112 270 09 07
999
SPRING OUTSIDE, NO LONGER AVAILABLE
999
SPRING
999
SPRING , 015 UP TO TRANSMISSION 005207
999
SPRING , NO LONGER AVAILABLE
999
SPRING , NO LONGER AVAILABLE
999
SPRING , TO 112 270 09 07
999
SPRING , 015 UP TO TRANSMISSION 005207
999
SPRING , NO LONGER AVAILABLE
999
SPRING
999
PIN REPAIR SIZE 5.5 MM, NOT INCLUDED IN RANGE OF DELIVERY 112 270 11 16
999
PROTECTIVE PLATE , 015 UP TO CHASSIS 000665, Replaced By: A1114920430, +001A1104900644
999
PISTON , 043 UP TO TRANSMISSION 002079 NO LONGER AVAILABLE
999
SHIFT VALVE , NO LONGER AVAILABLE
999
BUSHING
999
SHIFT VALVE , 015 UP TO TRANSMISSION 005207
999
SHIFT VALVE , 015 UP TO TRANSMISSION 005207
999
BUSHING , 021,023 UP TO TRANSMISSION 002079
999
PISTON , NO LONGER AVAILABLE 015 UP TO TRANSMISSION 005207
999
SHIFT VALVE , NO LONGER AVAILABLE
999
PIN AS REQUIRED 82 MM
999
PIN AS REQUIRED 81 MM, 015 FROM TRANSMISSION 002756
999
PISTON , NO LONGER AVAILABLE
999
GASKET , 015 UP TO TRANSMISSION 005207
999
COVER , 015 UP TO TRANSMISSION 005207
999
SPRING RETAINER , 015 UP TO TRANSMISSION 005207
999
INTERMEDIATE PLATE , 015 UP TO TRANSMISSION 005207
999
GASKET , Replaced By: A1122772080
999
BUSHING , 015 UP TO TRANSMISSION 005207
999
INSULATING RING
999
INSULATING RING , NO LONGER AVAILABLE
999
PIN , 004995
999
GUARD PLATE , 015 UP TO TRANSMISSION 005207
999
PISTON , NO LONGER AVAILABLE
999
GUARD PLATE , 015 UP TO TRANSMISSION 005207
999
DISC SUPPORT
999
GUARD PLATE , 015 UP TO TRANSMISSION 005207
999
OUTER DISC , 012, 014 FROM TRANSMISSION 001945, 015 FROM TRANSMISSION 007429
999
OUTER DISC , 043 UP TO TRANSMISSION 001944, Replaced By: A1122720726, +001A1122721126, +001A1122721226
999
LOCK , 015 UP TO TRANSMISSION 005207
999
OUTER DISC , 021,023 UP TO TRANSMISSION 001944, Replaced By: A1122721126, +001A1122721226
999
LOCK , 015 UP TO TRANSMISSION 005207
999
SPACER WASHER , Replaced By: A1122720352
999
FLANGE , 015 UP TO TRANSMISSION 005207
999
OUTER DISC , 015 UP TO TRANSMISSION 003528, Replaced By: A1092720826, +003A1122720225
999
SPACER WASHER AS REQUIRED 0.1 MM, 015 UP TO TRANSMISSION 005207
999
OUTER DISC , 015 UP TO TRANSMISSION 003528, Replaced By: A1092720826, +003A1122720225
999
GEAR MAIN SHAFT, 015 UP TO TRANSMISSION 005207
999
GUARD PLATE , 015 UP TO TRANSMISSION 005207
999
DISC SUPPORT , 015 UP TO TRANSMISSION 005207
999
FLANGE , 015 UP TO TRANSMISSION 005207
999
FLANGE , 015 UP TO TRANSMISSION 005207, Replaced By: A1122703920, +001A1152721492
999
BRAKE BAND , 015 UP TO TRANSMISSION 004995, Replaced By: A1122702362, +001A1122771074, +002A1122773175
999
GASKET KIT
999
FLANGE , 015 UP TO TRANSMISSION 005207, Replaced By: A1122703920, +001A1152721492
999
PLANETARY CARRIER , 015 UP TO TRANSMISSION 005207
999
VALVE BODY ASSEMBLY , NO LONGER AVAILABLE 015 UP TO TRANSMISSION 005207
999
BRAKE BAND , 015 UP TO TRANSMISSION 004995, Replaced By: A1122702362, +001A1122771074, +002A1122773175
999
VALVE BODY ASSEMBLY , 015 UP TO TRANSMISSION 005207
999
BRAKE BAND , 015 UP TO TRANSMISSION 004995, Replaced By: A1122702362, +001A1122771074, +002A1122773175
999
LEVER , 004266, Replaced By: A1122700556, +001A1122700656, +002N000125006407, +002N000137006200, +002N000933006077, +002N000934006006
999
REGULATOR VALVE , NO LONGER AVAILABLE
999
DRIVE SHAFT , 015 UP TO TRANSMISSION 005207
999
BREATHER REPAIR SIZE, 012, 014 UP TO TRANSMISSION 006059, 015 UP TO TRANSMISSION 008636
999
LEVER , 004266, Replaced By: A1122700556, +001A1122700656, +002N000125006407, +002N000137006200, +002N000933006077, +002N000934006006
999
DRIVE SHAFT
999
HOUSING , 015 UP TO TRANSMISSION 005207
999
GEAR INDICATOR , UP TO CHASSIS 088724
999
FLANGE , 015 UP TO TRANSMISSION 005207, Replaced By: A1122703920, +001A1152721492
999
COVER , 000,001,004,010,016 UP TO TRANSMISSION 001677, Replaced By: A1102700105, +001A1109970330, +001N007603012104
999
GASKET KIT , Replaced By: A1122701800
999
SHIFT LEVER
999
PROTECTIVE PLATE , 015 UP TO CHASSIS 000665, Replaced By: A1114920430, +001A1104900644
999
PROTECTIVE PLATE , 000,001,004,010,016 UP TO CHASSIS 130557
999
GUARD PLATE , 008596-015979
999
PISTON , 000,001,004,010,016 UP TO TRANSMISSION 003600
999
BOOT , 000,001,004,010,016 UP TO TRANSMISSION 003600
999
LINE
999
FLANGE , 000,001,004,010,016 UP TO TRANSMISSION 003600
999
OIL FILLER PIPE , 000,001,004,010,016 UP TO CHASSIS 130557, 100,101,104,110,116 UP TO CHASSIS 225647
999
KNOB LIGHT IVORY-COLORED, 000,001,004,010,016 UP TO CHASSIS 130558, 100,101,104,110 UP TO CHASSIS 225648 ON SPECIAL REQUEST
999
SHIFTING TUBE , Replaced By: A1092600882
999
BREATHER TRANSFER CASE
999
SCREW PLUG
999
BRACKET
999
SHIFT VALVE , NO LONGER AVAILABLE 000,001,004,010,016 FROM TRANSMISSION 005759
999
PISTON , 000,001,004,010,016 FROM TRANSMISSION 009601, 100,101,104,110,116 FROM TRANSMISSION 007001
999
DISC SUPPORT , 000,001,004,010,016 FROM TRANSMISSION 009601, 100,101,104,110,116 FROM TRANSMISSION 007001
999
BRACKET
999
VALVE BODY ASSEMBLY , 000,001,004,010,016 FROM TRANSMISSION 003601
999
AUTOMATIC TRANSMISSION , ON SPECIAL REQUEST IN CASE OF R.H.D. RANGE OF DELIVERY INCLUDE: 1 AUXILIARY LEVER 112 270 06 56 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
VALVE BODY ASSEMBLY , 000,001,004,010,016 FROM TRANSMISSION 003601
999
OIL FILLER PIPE , 000,001,004,010,016 FROM CHASSIS 160831
999
OIL FILLER PIPE , 000,001,004,010,016 FROM CHASSIS 130558-160830, Replaced By: A1102700584, +001A1122700183
999
VALVE BODY ASSEMBLY , NO LONGER AVAILABLE 000,001,004,010,016 UP TO TRANSMISSION 003600
999
OIL FILLER PIPE
999
THRUST PIN , NO LONGER AVAILABLE
999
VALVE BODY ASSEMBLY , 000,001,004,010,016 UP TO TRANSMISSION 003600
999
SHIFTING SEGMENT , ON SPECIAL REQUEST, POWER STEERING 000,001,004,010 FROM CHASSIS 130558, 100,101,104,110 FROM CHASSIS 225648
999
SHIFTING ROD
999
SHIFTING TUBE , ON SPECIAL REQUEST, POWER STEERING 000,001,004,010,016 FROM CHASSIS 190318 ALSO INSTALLED ON, SEE FOOTNOTE 75, 002,003,005,011,017 FROM CHASSIS 034217 ALSO INSTALLED ON SEE FOOTN.76,AND FOOTN.74
