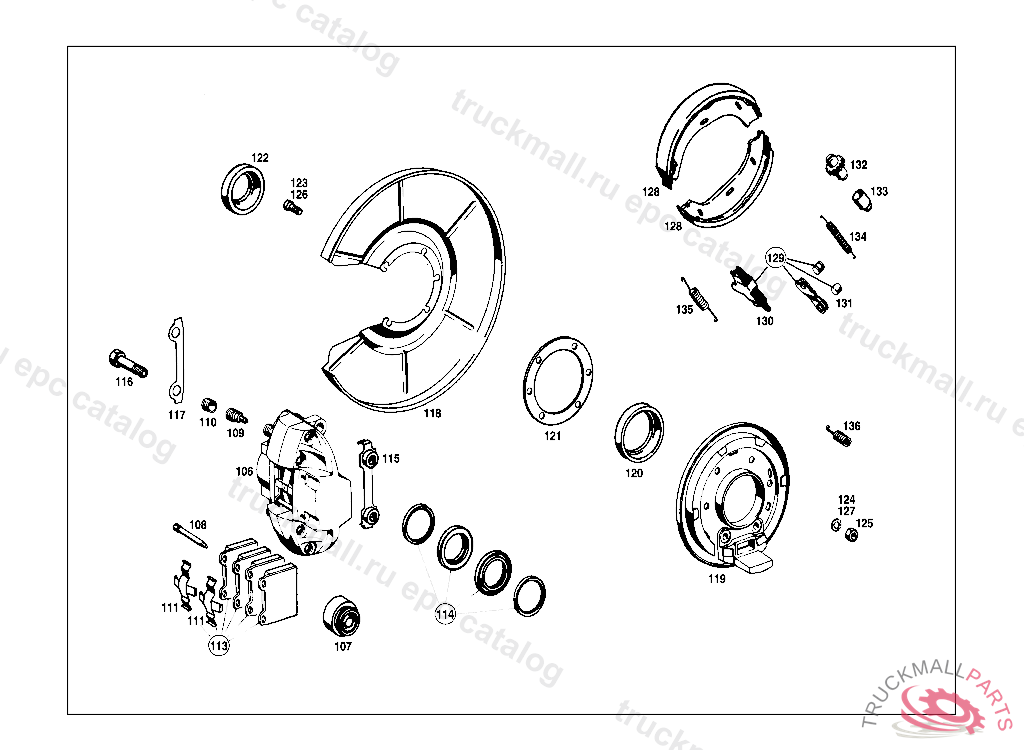

Поз.
Артикул
Описание
106
CALIPER RIGHT
106
CALIPER LEFT,TEVES,LESS LINING, 012 FROM CHASSIS 054903, 014 FROM CHASSIS 043168, 015 FROM CHASSIS 002581
106
CALIPER , 043 FROM CHASSIS 002839, Replaced By: A0004204683, +001A0004207120
106
CALIPER ,043,044 002839, Replaced By: A0004204783, +001A0005862242
107
PISTON
108
DOWEL PIN TEVES
109
BLEEDER VALVETEVES
110
PROTECTIVE CAP , Replaced By: A0004217187
110
PROTECTIVE CAP ,5 962906
111
SPRING TEVES
113
BRAKE PAD , Replaced By: A0014207920
113
BRAKE PAD PARTS KIT, 108.016 080479 108.018 086711 108.057,058 003382 109.018 005896 109.056 007251 111.026,027 004432
114
REPAIR KIT CALIPER TEVES
115
BRACKET
116
SCREW
117
LOCK , UP TO CHASSIS: 007,008,015,017 261054 011 110919 060 122284 062 108777
118
PROTECTIVE PLATE
119
BRAKE ANCHOR PLATE ,043 000817
120
SEAL RING
121
GASKET
122
SEAL RING
123
SCREW
124
TOOTHED WASHER LEVER TO AIR SPRING VALVE,K 186867
125
NUT
126
SCREW
127
TOOTHED WASHER LEVER TO AIR SPRING VALVE,K 186867
128
BRAKE SHOE RANGE OF DELIVERY
129
REPAIR KIT TURNBUCKLE, 002124
129
CONNECTOR , Replaced By: A1145860142, +001A1154202785
130
SHACKLE
131
CYLINDER PIN. PIN
132
SCREW BRAKE SHOE ADJUSTMENT
133
BUSHING
134
SPRING
134
SPRING , Replaced By: A9109931310
135
SPRING , 043 FROM CHASSIS 000817
999
LOCK , Replaced By: A0004280673
999
RETAINING SPRING BRAKE HOSE TO BRACKET
999
LEVER , Replaced By: A1145860142, +001A1154202785
999
PIN , Replaced By: A1145860142, +001A1154202785
999
CAP
999
CLAMP
999
SEAL RING
999
SEAL RING , Replaced By: A1139970241
999
LOCK WASHER
999
NUT , 000,001,004,010,016 FROM CHASSIS 064106 ALSO INSTALLED ON, SEE FOOTNOTE 5, 100,101,104,110,116 FROM CHASSIS 099642 ALSO INSTAL LED ON, SEE FOOTNOTE 6, EXCEPT FOR 099892
999
LOOM TIE HAND PUMP
999
LOOM TIE ALTERNATOR BREATHING
999
STRAP , ORDER BY THE METER
999
STRAP AIR HOSE TO ELBOW AND TO INTAKE CASE 570 MM, ORDER BY THE METER
