Mercedes
CAR
200 CE / E 200
124.060 FROM 09/89
54 ELECTRICAL EQUIPMENT AND INSTRUMENTS

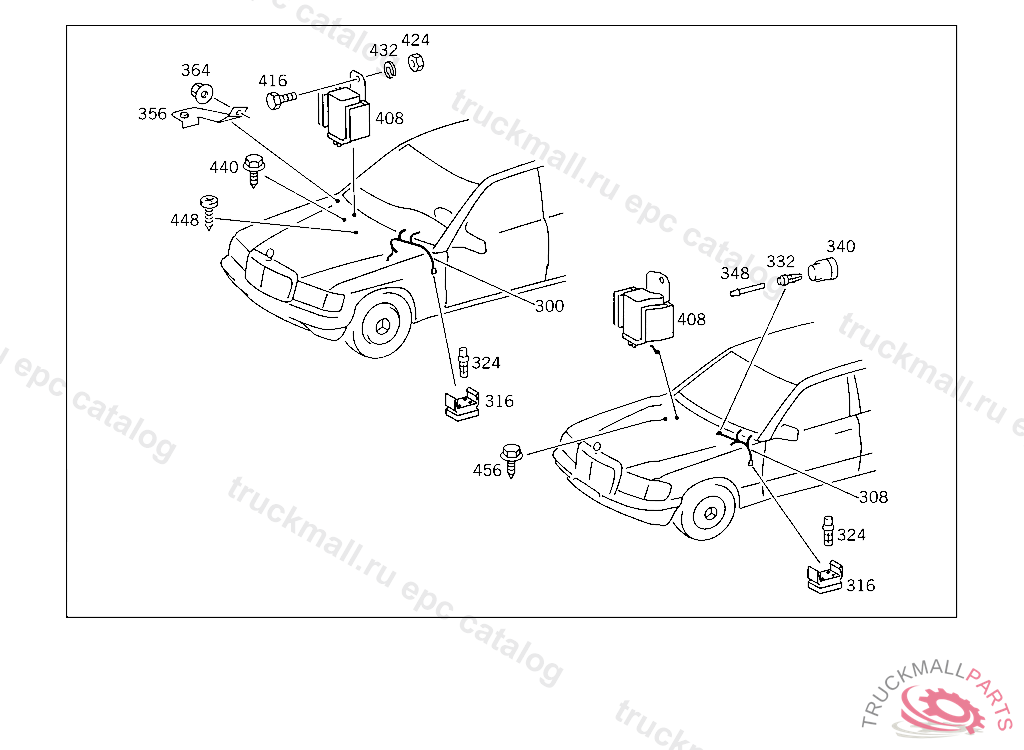

001 ELECTRICAL PARTS USED FOR CLEARANCE/FOG/TOWN/DAY-DRIVING LIGHTS (TYPES129, 140 S IL.1

200 CE / E 200 - 124.060 FROM 09/89 - 54 ELECTRICAL EQUIPMENT AND INSTRUMENTS

Поз.
Артикул
Описание
300
A1075408910
CABLE HARNESS
300
A1265401113
CABLE HARNESS
300
A1245404110
CABLE HARNESS
308
A2015405534
CABLE HARNESS
316
A0125458828
PIN BUSHING HOUSING CONTROL UNIT
324
A0025459926
ROUND PIN BUSHING2.5 MM2
324
A0015452826
PIN BUSHING , Replaced By: A0025459926
332
A0115451028
PLUG HOUSING MAIN CABLE HARNESS
340
A0095451428
COVERTO 011 545 10 28
348
A0115451228
PLUG PIN
356
A1265405473
BRACKET CONTROL UNIT, ONLY FOR USE W/ACCELERACION SKID CONTROL
364
N913017005000
NUT BRACKET TO ANTENNA, ONLY USED WITH REAR END MOUNTINGA 001878
408
A0055459832
CONTROL UNIT (CONTROL UNIT)
416
N000933006127
SCREW CAB FLOOR COVERING M 6X25
424
N000934006007
NUT BALL PIVOT TO LEVER
432
N912004006102
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
440
N914128004303
SHEET METAL SCREW ALARM UNIT TO STRUT
448
N000000000459
SHEET METAL SCREW FUEL STRAINER SCREEN TO FUEL TANK
448
N007981004339
SHEET METAL SCREW , Replaced By: N000000000459
456
N914031004301
COMBINATION BOLT
