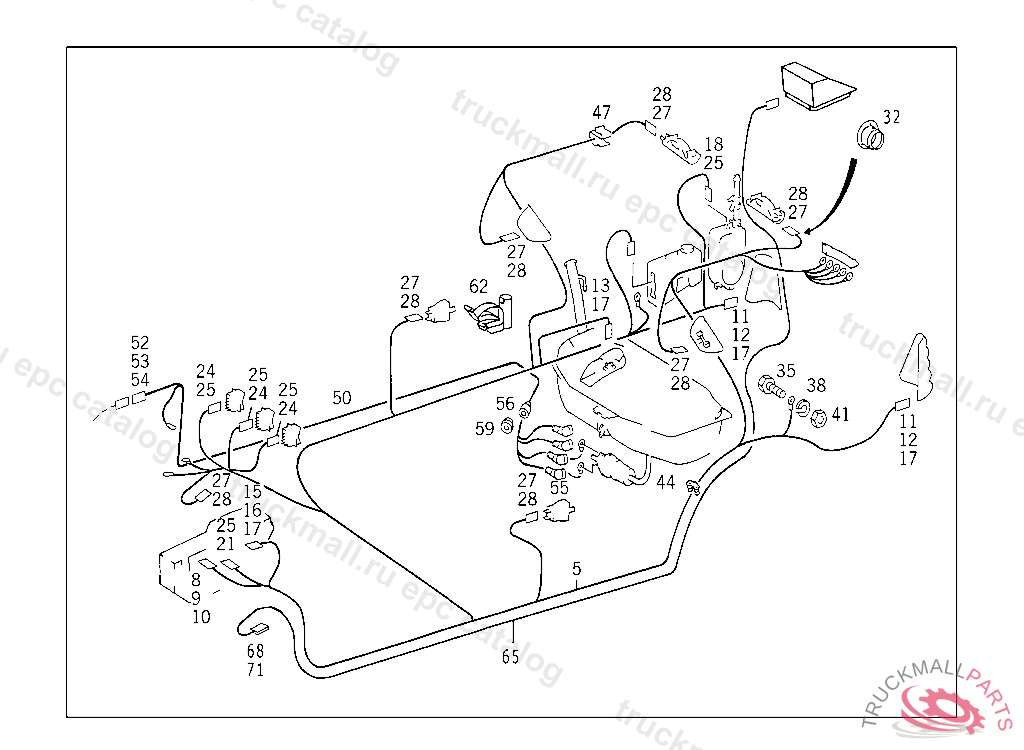

Поз.
Артикул
Описание
5
CABLE HARNESS TAIL LAMP CABLE HARNESS,F 063064
5
CABLE HARNESS TAIL LAMP CABLE HARNESS,F 063065
5
CABLE HARNESS TAIL LAMP CABLE HARNESS,F 063065
5
CABLE HARNESS TAIL LAMP CABLE HARNESS,F 063064
8
PLUG HOUSING FINAL CONTROL ELEMENT, 8-POLE
9
COVERTO 006 545 81 28
10
PLUG PIN ADDITIONAL CABLE TO SERIES CABLE
11
PIN BUSHING HOUSING 4-POLE
12
COVER
13
PLUG TRIPLE
13
PIN BUSHING HOUSING 4-POLE, BLOWER MOTOR
15
PIN BUSHING HOUSING , 10/20 UP TO CHASSIS 4 411810,50/60 UP TO CHASSIS 4 414810
16
COVER , 10/20 UP TO CHASSIS 4 411810,50/60 UP TO CHASSIS 4 414810
17
ROUND PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2.5 MM2
21
PIN BUSHING HOUSING LAMP CONTROL
24
PIN BUSHING HOUSING INTERIOR REAR LAMP SWITCH
24
PIN BUSHING HOUSING INTERIOR REAR LAMP SWITCH
25
ROUND PIN BUSHING2.5 MM2
27
PIN BUSHING RADIO SET
28
INSULATING SLEEVETO 000 546 43 40
35
SCREW BRACKET MOUNTING
38
LOCK WASHER T-FITTING TO BRACKET
41
NUT BOOT TO AIR DUCT AND TO AIR CLEANER
