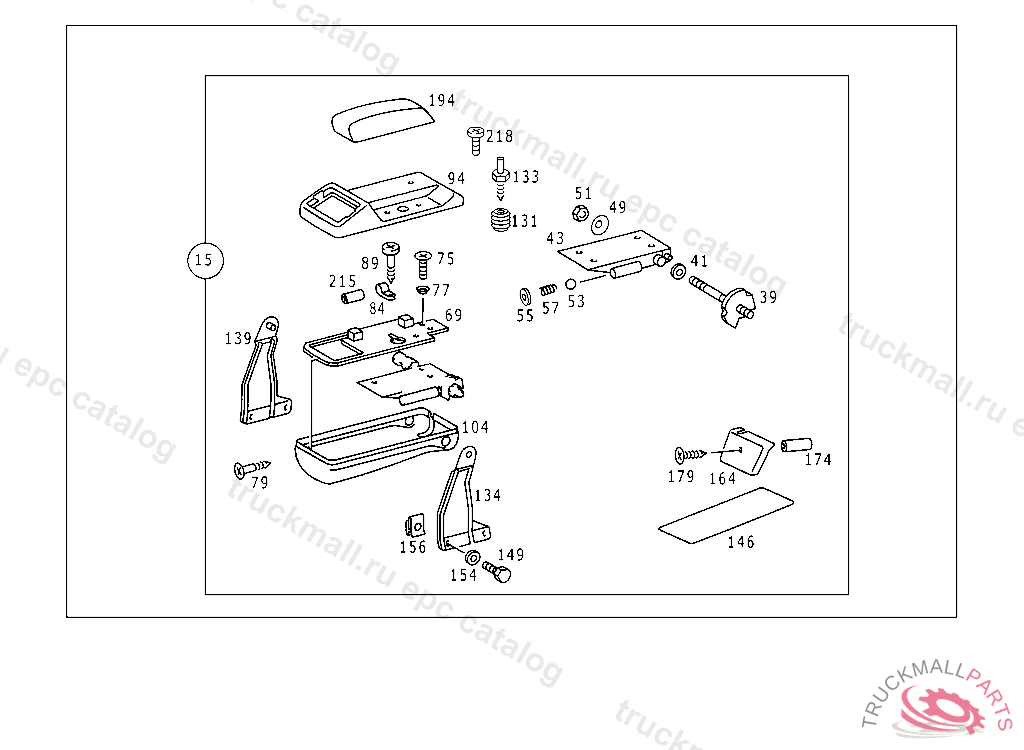

Поз.
Артикул
Описание
15
BRACKET RANGE OF DELIVERY FOR SUBSEQUENT INSTALLATION, NO.9A88I NO.5B01I NO.8E94I NO.8E95I NO.8E93I NO.6B54I NO.3B35I NO.7C29I I
15
BRACKET RANGE OF DELIVERY FOR SUBSEQUENT INSTALLATION, NO.9A84I NO.5A98I NO.8E78I NO.8E79I NO.8E80I NO.6B52I NO.3B32I NO.7C12I I
15
BRACKET RANGE OF DELIVERY FOR SUBSEQUENT INSTALLATION, NO.9A84I NO.5A98I NO.8E78I NO.8E79I NO.8E80I NO.6B52I NO.3B32I NO.7C12I I
39
GUIDE , 126.021 017268 022/023 063684 032/033 031729 036/037 021831 120 029696 043 002857 044 002194
39
GUIDE , 126.021 017267.022/023 063683.032/033 031728.036/037 021830.120 029695.043 002856.044 002193, Replaced By: A1268200334, +001A1268202914, +001A1268203014
41
WASHER
43
GUIDE , 126.021 017267.022/023 063683.032/033 031728.036/037 021830.120 029695.043 002856.044 002193
43
GUIDE
49
DISC SPRING BEARING
51
NUT JOINT TO BRACKET
53
BALL BEARING
55
WASHER
57
SPRING
69
PLATE
69
PLATE
69
PLATE
75
SCREW SWITCH TO INSTRUMENT PANEL
75
SCREW SWITCH TO INSTRUMENT PANEL
77
WASHER
79
WOOD SCREW
84
CLAMP ELECTRIC CABLE MOUNTING
89
WOOD SCREW COVERING TO BACKREST CODE 844
94
SHELL UPPER PART
94
SHELL UPPER PART
94
SHELL UPPER PART
94
SHELL UPPER PART
104
SHELL LOWER PART,01.08.89 NO.9A88I NO.5B01I NO.8E94I NO.8E95I NO.8E93I NO.6B54I NO.3B35I NO.7C29I I
104
SHELL LOWER PART,01.08.89 NO.9A84I NO.5A98I NO.8E78I NO.8E79I NO.8E80I NO.6B52I NO.3B32I NO.7C12I I
104
SHELL LOWER PART
104
SHELL LOWER PART
104
SHELL LOWER PART,01.08.89 NO.9A84I NO.5A98I NO.8E78I NO.8E79I NO.8E80I NO.6B52I NO.3B32I NO.7C12I I
104
SHELL LOWER PART
104
SHELL LOWER PART
104
SHELL LOWER PART
104
SHELL LOWER PART
104
SHELL LOWER PART
104
SHELL LOWER PART
131
TREENAIL
133
SCREW UPPER PART
134
BRACKET LEFT
134
BRACKET , Replaced By: A1268202914, +001A1268203014, +001A1268200334
139
BRACKET , Replaced By: A1268203014, +001A1268202914, +001A1268200334
139
BRACKET RIGHT
146
INSERT
149
SCREW COVER PLATE TO COVER PLATE M 6 X 12
154
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
156
NUT RETAINER USED WITH IMITATION LEATHER TRIM, 123 297291 ALSO INSTALLED ON 306113-347407 133 002318 ALSO INSTALLED ON 004116-012658
164
COVERING
174
SPACER BETWEEN COVERING AND TRAY
179
SHEET METAL SCREW
194
SEAT ADAPTER
194
SEAT ADAPTER
194
SEAT ADAPTER , NO.9A88I NO.5B01I NO.8E94I NO.8E95I NO.8E93I NO.6B54I NO.3B35I NO.7C29I I
194
SEAT ADAPTER
194
SEAT ADAPTER , NO.9A84I NO.5A98I NO.8E78I NO.8E79I NO.8E80I NO.6B52I NO.3B32I NO.7C12I I
194
SEAT ADAPTER
194
SEAT ADAPTER
194
SEAT ADAPTER ,A 259654, Replaced By: A1269701409, +002A1269880225, +002A1269900577
194
SEAT ADAPTER ,A 259654, Replaced By: A1269701509, +002A1269880225, +002A1269900577
194
SEAT ADAPTER ,A 259654, Replaced By: A1269701609, +002A1269880225, +002A1269900577
194
SEAT ADAPTER ,A 259654, Replaced By: A1269701709, +002A1269880225, +002A1269900577
194
SEAT ADAPTER , NO.9A84I NO.5A98I NO.8E78I NO.8E79I NO.8E80I NO.6B52I NO.3B32I NO.7C12I I
215
HOSE CONDENSED WATER DRAIN
218
SCREW CABLE CONNECTOR TO FRAME SIDE MEMBER, 869943-4 282707
