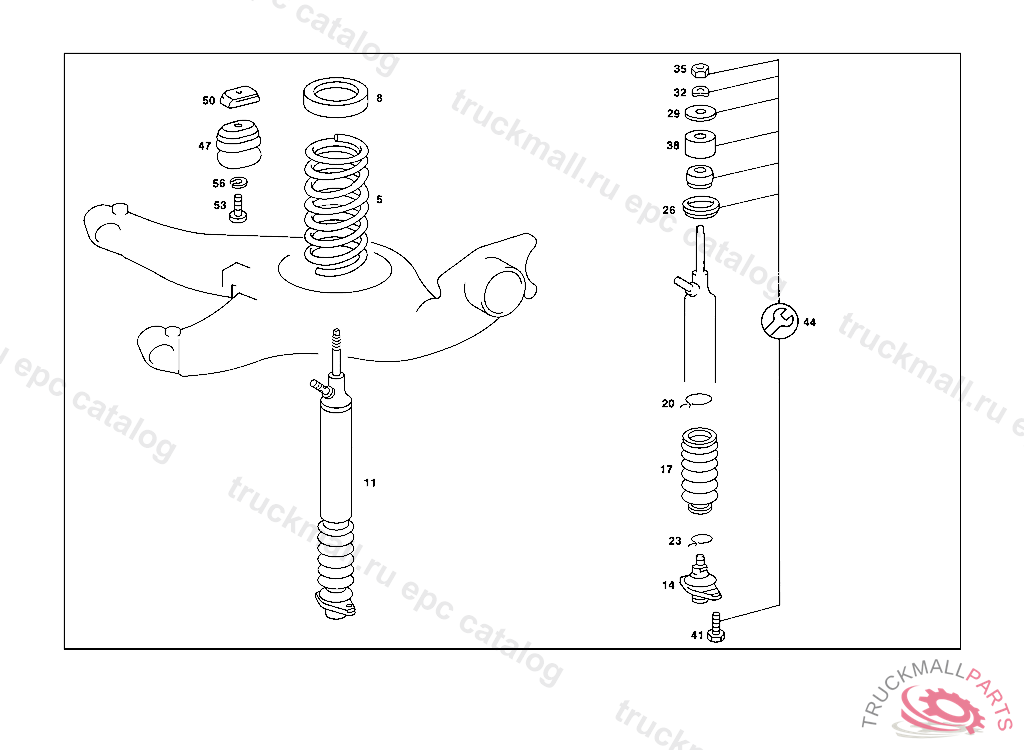

Поз.
Артикул
Описание
5
REAR SPRING REAR AXLE PRESSURE 1250-1286 KG
5
REAR SPRING REAR AXLE PRESSURE 1400-1452 KG
5
REAR SPRING REAR AXLE PRESSURE 1286-1327 KG,A 264616
8
RUBBER BUFFER AS REQUIRED, NUMBER OF BURLS: 2(14 MM)
8
RUBBER BUFFER AS REQUIRED, NUMBER OF BURLS: 3(19 MM)
8
RUBBER BUFFER AS REQUIRED, NUMBER OF BURLS: 1(9,5 MM)
11
HYDROPN. SPRING LEG REAR
14
JOINT
17
BOOT
20
WIRE RING
23
WIRE RING BOTTOM
26
RETAINER HYDROPNEUMATIC SPRING LEG TO FRAME
29
WASHER , Replaced By: A2023260076
32
SPRING WASHER STEERING COLUMN BRACKET TO CAB
35
NUT , Replaced By: N308673010000
35
NUT SHIFT LEVER HANDLE TO SHIFT LEVER
38
RUBBER BUFFER HYDROPNEUMATIC SPRING LEG TO FRAME
41
SCREW , Replaced By: N910106010031
41
SCREW HYDROPNEUMATIC SPRING LEG TO REAR AXLE
44
REPAIR KIT HYDROPNEUMATIC SPRING LEG MOUNTING, TO TRANSVERSE CONTROL ARM
47
RUBBER BUFFER
50
SHIM
53
SCREW , Replaced By: N000912008203
53
SCREW STEERING SHAFT BEARING TO CAB M 8X30,5 191030
56
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
