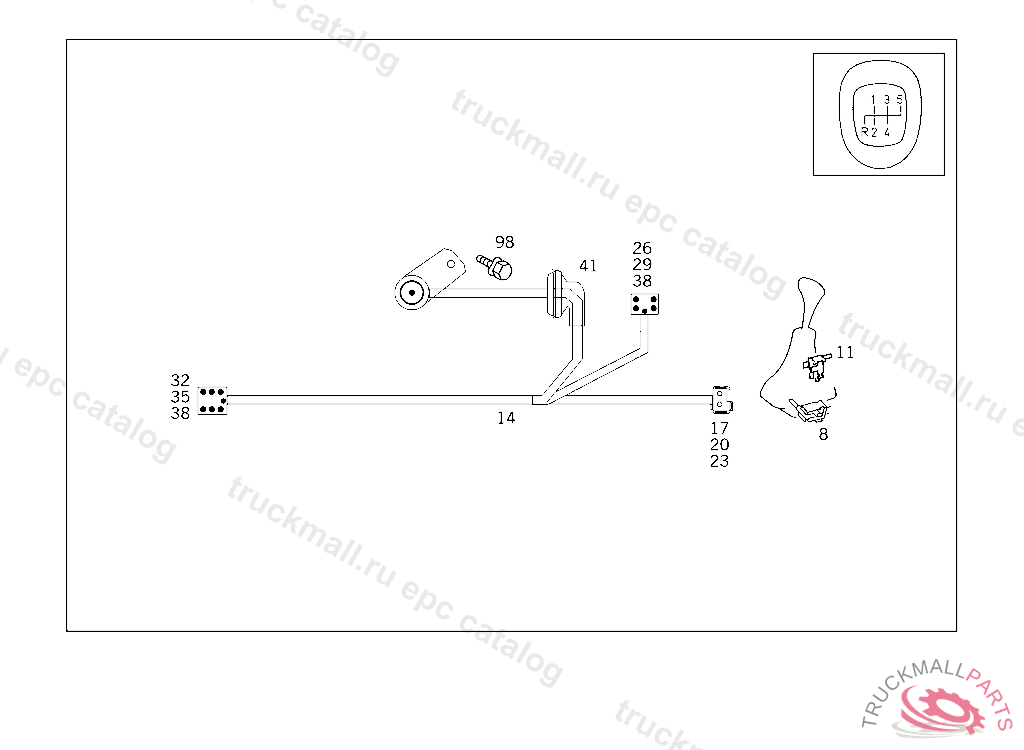

300 SL - 129.060 TO 06/98 - 54 ELECTRICAL EQUIPMENT AND INSTRUMENTS
Поз.
Артикул
Описание
8
SWITCH BACK-UP LIGHT SWITCH
14
CABLE HARNESS MANUAL TRANSMISSION WITH INDUCTIVE PICKUP,F 057538
14
CABLE HARNESS MANUAL TRANSMISSION WITH INDUCTIVE PICKUP,F 057539
17
PIN BUSHING HOUSING BIPOLAR
20
COVERTO 010 545 10 28
23
ROUND PIN BUSHING2.5 MM2
26
PLUG HOUSING DOUBLE
29
COVERTO 007 545 00 28
32
PLUG HOUSING
35
COVER
38
PLUG PIN ADDITIONAL CABLE TO SERIES CABLE
41
GROMMET ,F 057539
41
GROMMET
98
SCREW COVER PLATE TO BRACKET
