Поз.
Артикул
Описание

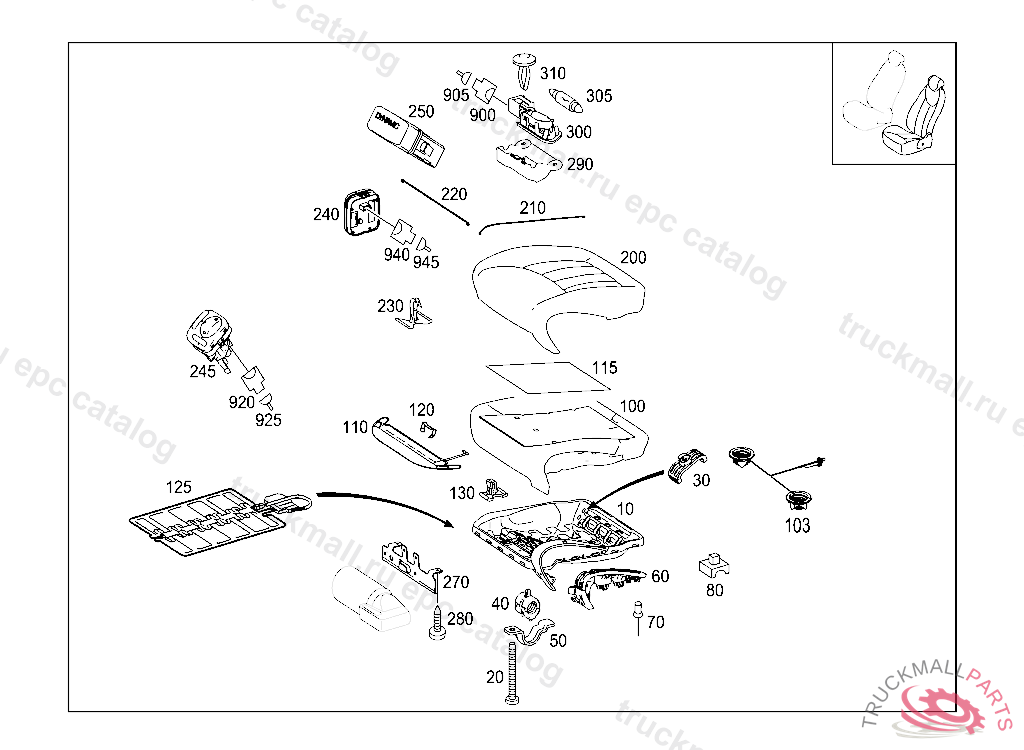

10
SEAT BOX LEFT
20
BOLT. SCREW CAN NEUTRAL POINT ON EQUIPMENT PLATE M 6X15/10
30
BEARING LEFT SEAT ADJUSTMENT, E 01872520030630804 A 55589720030630804 F 45737520031014804 R 13114520031203804
40
SHELL SEAT ADJUSTMENT, RIGHT, E 01872520030630804 A 55589720030630804 F 45737520031014804 R 13114520031203804
50
CLAMP SEAT BOX
60
STAY SEAT BOX
70
BLIND RIVET4X16
80
SLIDING BLOCK
100
REST LEFT SEAT, A 13549920110604
100
REST LEFT SEAT, A 13549920110604
100
PAD FRONT SEAT CUSHION LEFT SEAT, A 13550020110604
100
REST LEFT
100
REST LEFT SEAT
100
PAD FRONT SEAT CUSHION LEFT SEAT, A 13550020110604
103
AXIAL BLOWER
110
SEAT ADAPTER LEFT SEAT, A 05535020070206
115
INTERMEDIATE LAYER CUSHION FRAME
130
CLIP SEAT COVER MOUNTING,TRANSVERSE
200
COVER FRONT SEAT CUSHION
200
COVER FRONT SEAT CUSHION MB-TEX
200
COVER FRONT SEAT CUSHION LEATHER
200
COVER UNI-COLOR "DESIGNO"
200
COVER FRONT SEAT CUSHION FABRIC
200
COVER FRONT SEAT CUSHION MB-TEX
200
COVER "EXCLUSIV"LEATHER TRIM
200
COVER LEATHER
200
COVER FRONT SEAT CUSHION LEFT
200
COVER FRONT SEAT CUSHION
200
COVER LEATHER
200
COVER LEATHER
200
COVER FRONT SEAT CUSHION
200
COVER LEATHER
200
COVER FABRIC
200
COVER EXCLUSIVE LEATHER TRIM
200
COVER FRONT SEAT CUSHION
200
COVER FABRIC
200
COVER FRONT SEAT CUSHION ALCANTARA
200
COVER FRONT SEAT CUSHION
200
COVER MB-TEX
200
COVER MB-TEX
200
COVER FRONT SEAT CUSHION LEATHER
200
COVER ALCANTARA
200
COVER FRONT SEAT CUSHION
210
CLAMP LONGITUDINAL STAPLING
220
MOUNTING BRACKET TRANSVERSAL TACKING, A 48000720081001809
245
SHIFTING BLOCK LORDOTIC ADJUSTMENT, LEFT SEAT, 9051QFT246A1040 BLACK, Replaced By: A2059057603
245
REGULATOR RIGHT, WITH MEMORY FOR MULTICONTOUR SEAT
270
BRACKET FIRE EXTINGUISHER SUPPORT, LEFT
280
BOLT. SCREW CAN NEUTRAL POINT ON EQUIPMENT PLATE M 6X15/10
290
ELECT. COVER LEFT SEAT
300
INTERIOR LAMP LEFT COVERING
305
BULB LICENSE PLATE LAMP 12V-5W
305
BULB12V/5W
310
CLIP
900
PLUG HOUSING FRONT PASSENGER FOOTWELL ILL. 2-PIN MCP2.8
905
CONTACT BUSHING LESS DETENT,BUT WITH CATCH FOR HOUSING 0.5-1.0 MM2
920
SOCKET HOUSING RIGHT REAR OUTER SURROUND SPEAKER 2-PIN MQS,H4/57
920
CLUTCH PLUG CONNECTION TRAILER PLUG SOCKET 4-PIN SLK2.8,X52
925
FEMALE CONTACT SWITCH, POWER WINDOW, DRIVER 0.25-0.5 MM2 MQS,S20
940
PLUG HOUSING. PIN BUSHING HOUSING SEAT ADJUSTMENT SWITCH, A 394035 X 004165, J 036478 EXCEPT CODE 808 ALSO INSTALLED IN VEHICLE FROM A 394036 / X 004166 WITH CODE 807
945
FEMALE CONTACT SWITCH, POWER WINDOW, DRIVER 0.25-0.5 MM2 MQS,S20
945
CONTACT BUSHINGR 27, 0.75 MM2
