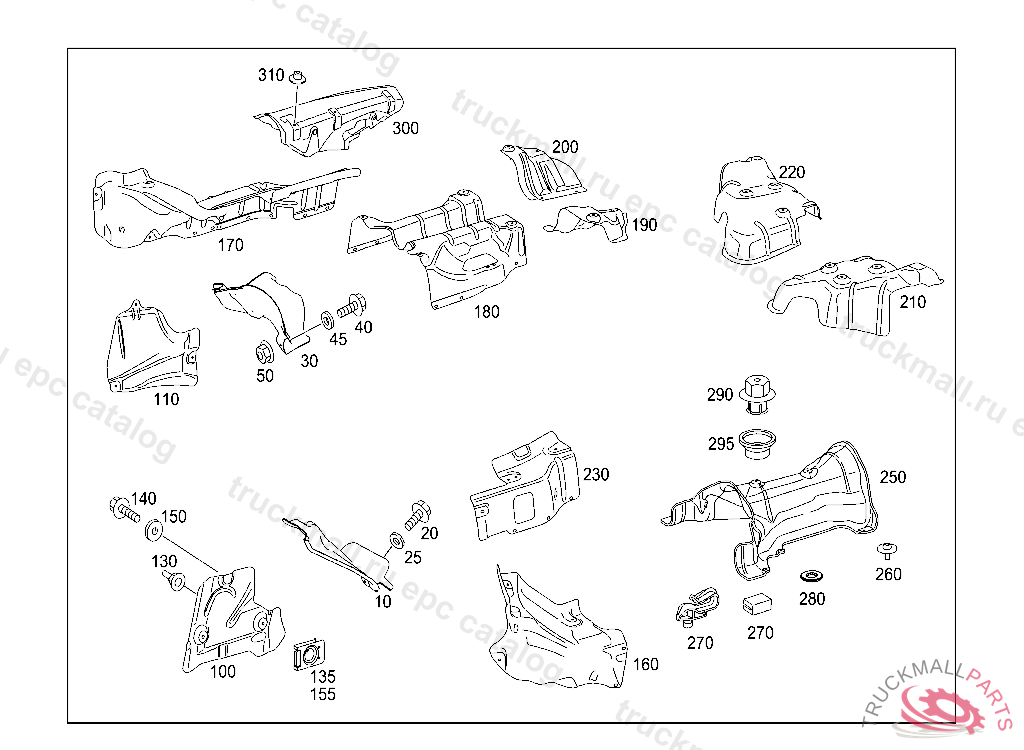

Поз.
Артикул
Описание
10
SCREENING SUBFRAME, RIGHT
25
WASHER COMPRESSED AIR LINE TO BRACKET
30
SCREENING PROPELLER SHAFT
40
BOLT SHIELDING
45
WASHER COMPRESSED AIR LINE TO BRACKET
50
HEXAGON NUT W COLLAR BRACKET MOUNTING
100
SCREENING LEFT FLOOR
110
SCREENING RIGHT FLOOR
130
HEXAGON NUT W COLLAR BRACKET MOUNTING
135
LOCK NUT. SPRING NUT MOUNTING PARTS
140
SCREW COVER PLATE TO COVER PLATE M 6 X 12
140
SCREW PUMP TO BRACKET
150
WASHER COMPRESSED AIR LINE TO BRACKET
155
LOCK NUT. SPRING NUT MOUNTING PARTS
155
SPRING NUT , A 32101520070928808
160
SCREENING LEFT SIDE MEMBER
170
SCREENING MAIN FLOOR,ON THE RIGHT
180
SCREENING ABOVE CENTRAL MUFFLER
180
SHIELDING ABOVE CENTRAL MUFFLER, A 48000720081001809
190
SHIELDING CENTRAL LEFT FLOOR, A 48000720081001809
190
SCREENING CENTRAL LEFT FLOOR, A 53600720090709800
200
SCREENING CENTRAL RIGHT FLOOR
210
SCREENING REAR END FLOOR,LEFT
220
SCREENING REAR FLOOR ASSEMBLY RIGHT
230
SCREENING REAR END FLOOR,LEFT, A 20500620061115
250
SCREENING PLATE BELOW FUEL TANK
260
TS BOLT ATTACHMENT SHIELD 5X12
270
HOOK ATTACHMENT SHIELD
300
INSULATION TRANSMISSION TUNNEL,OUTSIDE
310
PLASTIC NUT. NUT
