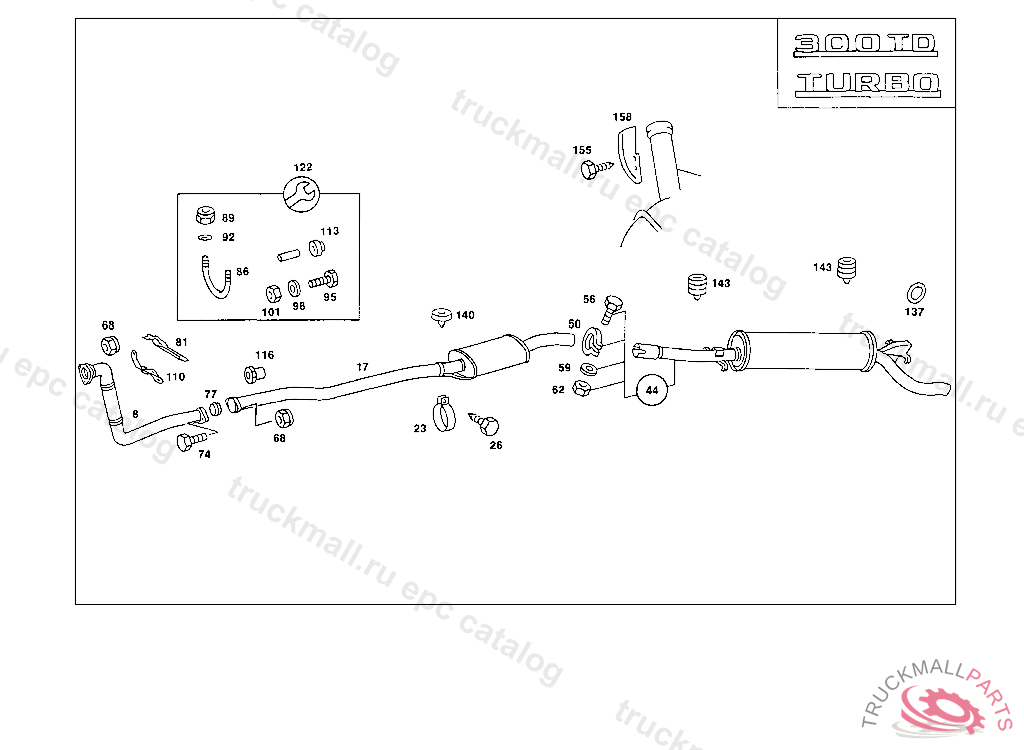

Поз.
Артикул
Описание
8
EXHAUST PIPE FRONT, CALIFORNIA FROM MODEL YEAR'85
8
EXHAUST PIPE , CALIFORNIA UP TO END OF MODEL YEAR'84
8
EXHAUST PIPE , Replaced By: A1234901720
17
EXHAUST MUFFLER WITH PIPE , Replaced By: A1234908315
17
EXHAUST MUFFLER WITH PIPE CENTRAL
23
CLAMP HEAT SHIELD MOUNTING
26
SHEET METAL SCREW BRACKET TO WINDOW SILL
44
EXHAUST MUFFLER WITH PIPE REAR
50
CLAMP
56
SCREW REAR AXLE REGULATING SOLENOID VALVE
59
WASHER BRACKET TO CROSS MEMBER
62
NUT
68
NUT POWER CYLINDER TO BRACKET
68
NUT , Replaced By: A0009903250
74
SCREW , Replaced By: N304017008043
74
SCREW VALVE TO BRACKET M 8X55
77
SEAL RING , Replaced By: A2024920181
77
SEAL RING FRONT EXHAUST PIPE TO CENTRAL EXHAUST PIPE E36 AMG
81
BRACKET EXHAUST PIPE TO TRANSMISSION
86
CLAMPING BRACKET , Replaced By: A2014920327
86
CLAMPING BRACKET CATALYST SUSPENSION,A 363212
86
CLAMPING BRACKET FRONT EXHAUST PIPE TO BRACKET
89
NUT , Replaced By: A0009903250
89
NUT POWER CYLINDER TO BRACKET
92
DISC SPRING EXHAUST PIPE TO BRACKET
95
SCREW PIPE CLAMP
95
SCREWM 8X40
95
SCREW , Replaced By: N304017008021
98
WASHER HIGH PRESSURE HOSE TO BRACKET
101
NUT
110
PLATE
113
RUBBER RING BRACKET TO MOUNTING PLATE OR TO TRANSMISSION
116
SPACER TUBE
116
NUT BRACKET TO MOUNTING PLATE OR TO TRANSMISSION
122
REPAIR KIT FRONT EXHAUST PIPE SUSPENSION,A 363212 ONLY APPLICABLE TO VEHICLES EQUIPPED WITH CATALYST
122
REPAIR KIT , Replaced By: A1264900537
122
REPAIR KIT , Replaced By: A2014900237
137
DAMPING PAD EXHAUST PIPE SUSPENSION
140
RUBBER BUFFER
143
RUBBER BUFFER IN FRONT OF,AND BEHIND,POSTERIOR MUFFLER
155
COMBINATION BOLT , Replaced By: N007976004205, +001N000125004311
158
SCREENING FUEL FILLER NECK
