Поз.
Артикул
Описание

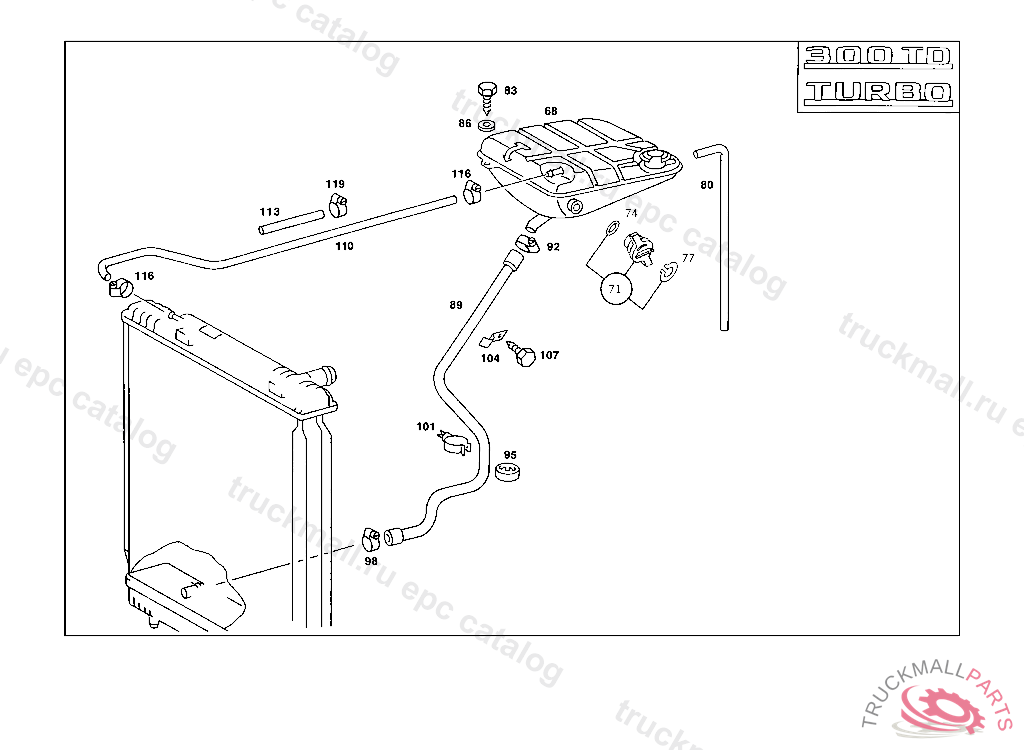

68
TANK EXPANSION TANK
68
TANK , Replaced By: A1265001549, +001A0005010044, +001A0129970348, +001N000471030002
71
COVER , Replaced By: A1265000084
71
COVER PARTS KIT TO 1245000649, A 136172 F 025324
74
SEAL RING
77
LOCK RING MAIN SHAFT,FRONT
80
HOSE
80
HOSE , Replaced By: A0219977682
83
SHEET METAL SCREW
86
WASHER CABLE CONNECTOR TO BRACKET AND TO FRAME,RESP.
86
WASHER , Replaced By: N009021005205
89
HOSE FROM EXPANSION TANK TO RADIATOR
92
LOOM TIE , Replaced By: N000000000668
92
CLAMP , Replaced By: A0069970490
92
CLAMP25-40X13 MM
95
RUBBER RING
98
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
98
CLAMP PRESSURE REGULATOR
101
BRACKET JACK FIXTURE
104
CLAMP , UP TO CHASSIS107.024 012078 107.044 029875
107
SHEET METAL SCREW BRACKET TO CAB FLOOR
110
HOSE ENGINE BREATHING 8X15X2550MM, TO BE ADAPTED DURING ASSEMBLY
110
HOSE , Replaced By: N000000000734
113
INSULATING HOSE16X1 MM, ORDER BY THE METER
116
HOSE CLAMP LINE MOUNTING
116
CLAMP , Replaced By: A0059970190
116
CLAMP , Replaced By: A1409950036
119
CLAMP PRESSURE REGULATOR
119
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
