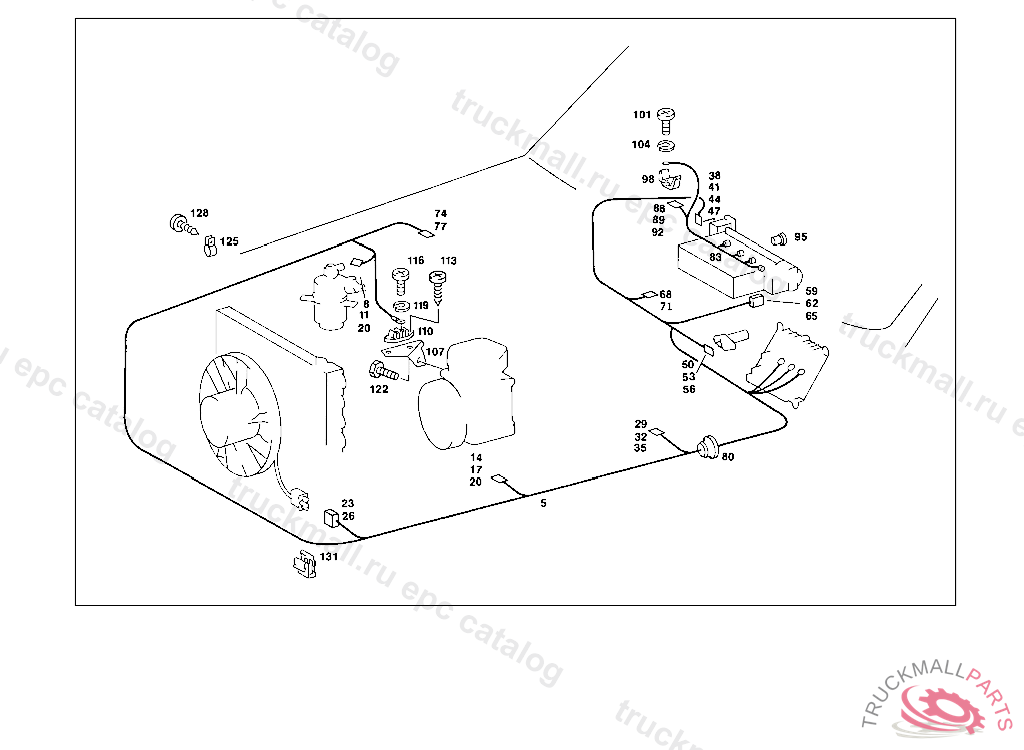

300 TD TURBODIESEL - 123.193 - 54 ELECTRICAL EQUIPMENT AND INSTRUMENTS

5

ELECTRIC CABLE AIR CONDITIONER

5

ELECTRIC CABLE AUTOMATIC AIR CONDITIONER

5

CABLE HARNESS AUTOMATIC AIR CONDITIONER

8

PIN BUSHING HOUSING UNIPOLAR, FROM CHASSIS:107.023 000429 107.043 006834 107.044 004104

11

COVERTO 011 545 10 28

14

PIN BUSHING HOUSING ELECTRIC CHANGE-OVER VALVE

17

COVERTO 008 545 08 28,008 545 09 28

20

ROUND PIN BUSHING4 MM2

23

PIN BUSHING HOUSING , 10/20 UP TO CHASSIS 4 411810,50/60 UP TO CHASSIS 4 414810

26

COVER , 10/20 UP TO CHASSIS 4 411810,50/60 UP TO CHASSIS 4 414810

29

PIN BUSHING HOUSING 4-POLE

32

COVER

35

ROUND PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2.5 MM2

38

PIN BUSHING HOUSING

41

COVERTO 009 545 83 28

44

PIN BUSHING

47

PIN BUSHING HOUSING CRYOSTAT

50

PLUG DECLUTCHING-START/BACK-UP-LIGHT SWITCH

53

PLUGTO 009 545 92 28

56

PIN BUSHINGTO 000 821 19 26

59

PLUG HOUSING MAIN CABLE HARNESS

62

COVERTO 011 545 10 28

65

PLUG PIN

68

PIN BUSHING HOUSING BIPOLAR

71

COVERTO 010 545 10 28

74

CABLE SHOE. PIN BUSHING PRESSURE SWITCH

77

INSULATING SLEEVE , 107.042 011568 EXCEPT FOR 010107,010328,010378,011305,011341,011348,011356,011418,011426,011434,011436,011444,011454,011455, 011464,011472,011473,011476,011480,011494,011496,011503,011504,011513,011514,011518,011519,011520, 011526,011528,011531,011533,011535,011537,011538,011539,011541-011567. 107.045 009131 EXCEPT FOR 004581,007703,008068,008344,008400,008401,008455,008627,008724,008836,008842,008885,008911,008920, 008925,008958,008967,008989,008994,009001,009100,009128. 107.046 000986 EXCEPT FOR 000518,000621,000841,000897,000899,000921,000933,000936,000938,000940,000942,000944,000956,000964, 000967,000970,000974-000985.

80

GROMMET

80

GROMMET

83

ELECTRIC CABLE LIGHTING OF OPERATING UNIT

83

CABLE HARNESS HEATING CONTROL LIGHTING

86

PIN BUSHING HOUSING

89

COVERTO 009 545 83 28

92

PIN BUSHING

95

SOCKET (SET POINT SENDER UNIT)

98

CABLE CONNECTOR HEATED REAR WINDOW PANE CABLE, 023 016459 033 012020 123 008855 130 014466

101

SCREW , Replaced By: N000000001933

101

SCREW FUSE BOX TO SIDE MEMBER,5 097182

104

LOCK WASHER T-FITTING TO BRACKET

107

BRACKET CABLE CONNECTOR

110

CABLE CONNECTOR , FROM CHASSIS:108.016 050831 108.018 053598 108.019 054235

113

SHEET METAL SCREW CABLE CONNECTOR TO BRACKET

116

SCREW STEERING COLUMN MOUNTED SWITCH TO STEERING COLUMN BRACKET M4X10

119

LOCK WASHER T-FITTING TO BRACKET

122

SCREW , TO BE ADAPTED DURING ASSEMBLY

122

SCREW BRACKET TO COMPRESSOR, TO BE ADAPTED DURING ASSEMBLY

125

CLAMP , Replaced By: A1159950101

125

CLAMP WIRE CABLE TO FIRE WALL

128

SHEET METAL SCREW

131

CLIP PLUG TO REAR PILLAR
