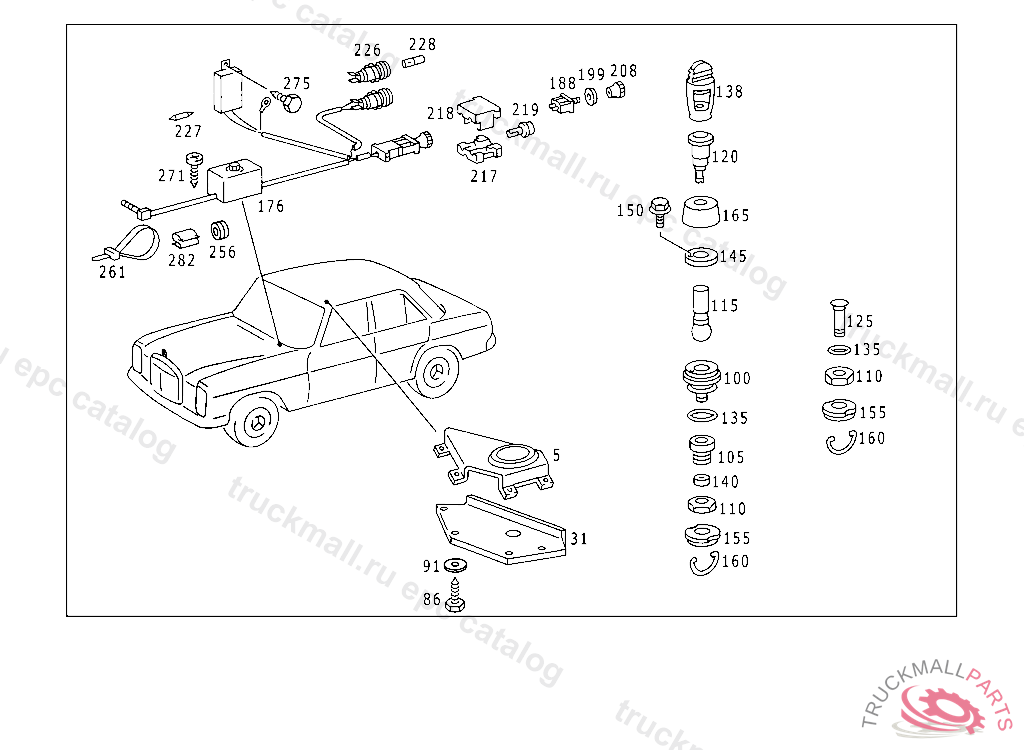

Поз.
Артикул
Описание
5
PLATE RIGHT
31
REINFORCEMENT BOTTOM RIGHT
86
SHEET METAL SCREW BRACKET TO CAB FLOOR
86
SHEET METAL SCREW BRACKET TO ROOF RAIL
91
WASHER CABLE CONNECTOR TO BRACKET AND TO FRAME,RESP.
100
BEARING
100
MOUNTING
100
BEARING
105
BUSHING
110
NUT
115
TUBE
120
PLUG SOCKET
125
PIN TO COVER ROOF OPENING USED FOR REVOLVING BEAM SIGNAL
125
PIN TO COVER ROOF OPENING USED FOR REVOLVING BEAM SIGNAL
125
PIN TO COVER ROOF OPENING USED FOR REVOLVING BEAM SIGNAL
125
PIN TO COVER ROOF OPENING USED FOR REVOLVING BEAM SIGNAL
135
SEAL RING
138
PLUG
140
RUBBER RING EXTENSION TUBE AND LOCKING BOLT
145
CLAMPING DISC
150
SCREW
155
HANDLE
160
CLAMP
165
COVERING
176
ELECTRIC CABLE
188
SWITCH
199
ESCUTCHEON
208
KNOB
217
PIN BUSHING HOUSING , 10/20 UP TO CHASSIS 4 411810,50/60 UP TO CHASSIS 4 414810
218
COVER , 10/20 UP TO CHASSIS 4 411810,50/60 UP TO CHASSIS 4 414810
219
ROUND PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2.5 MM2
226
TELL-TALE LAMP
227
FUSE , Replaced By: A0015457534
228
BULB TELL-TALE LAMP R2-12V 45/40W
228
BULB2W
228
BULB , ON CAB 344
256
GROMMET
261
LOOM TIE , UP TO CHASSIS: 108.012 UNTIL PRODUCTION STOP 108.016 042417 108.018,019 043374 109.016 002452
261
LOOM TIE TO MOUNT PLASTIC PIPING
271
SHEET METAL SCREW WINDOW SILL GIRDER LOWER PART,4 273689
275
SHEET METAL SCREW
282
CLIP CABLE HARNESS TO ROOF RAIL
