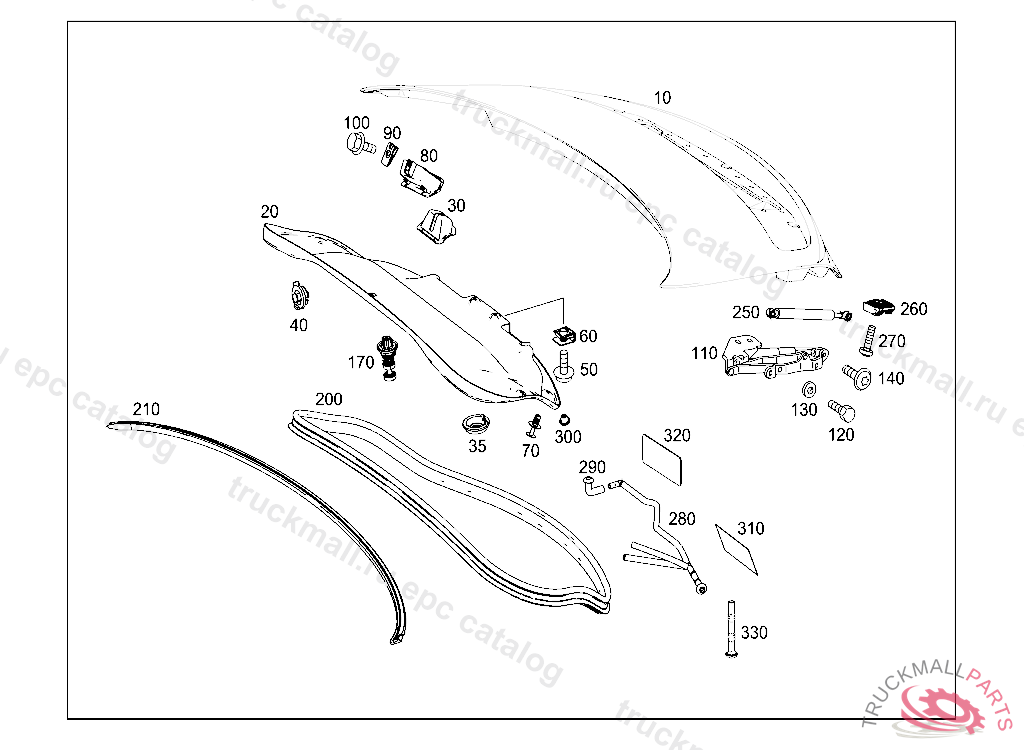

Поз.
Артикул
Описание
10
TRUNK LID
20
TRIM PANEL TRUNK LID , 9F08QFT197A0510 SINGLE TONE BLACK
20
TRIM PANEL TRUNK LID , 9F08QFT197A0510 SINGLE TONE BLACK
30
TRIM PANEL TRUNK LID LOCK BRACKET
35
TRIM RING
40
LOCK
50
HEXALOBULAR BOLT WINDOW REGULATOR AT BRACKET AND DOOR M6X16
60
NUT RETAINER. LOCK LEFT AND RIGHT SPOILER AT CENTER PIECE
70
RIVET BUSHING AND LEVER TO CAB
70
MOUNTING BRACKET REAR LEFT
80
HANDLE RECESS TO COVERING, 9051QFT197A0450 BLACK
90
LOCK NUT MOUNTING, COVER, THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0019900856
100
TAPPING SCREW RADIATOR GRILLE SHELL TO ENGINE HOOD 4.8X13
110
HINGE RIGHT
110
HINGE LEFT
120
SCREW LICENSE PLATE TO BRACKET
130
WASHER COMPRESSED AIR LINE TO BRACKET
140
COMBINATION BOLT FENDER TO A-PILLAR M6X20
170
SPRING ELEMENT TO TRUNK LID TOP SIDE
200
SEALING FRAME REAR LID
210
SEALING FRAME ON REAR LID
250
GAS PRESSURE STRUT REAR LID
260
BUFFER TO TRUNK LID TOP SIDE
270
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
280
WATER DRAIN LEFT, ON TRUNK LID
280
WATER DRAIN RIGHT, ON TRUNK LID
280
WATER DRAIN RIGHT, ON TRUNK LID
290
HOSE ASSEMBLY CENTRAL
300
PLUG
310
ADHESIVE TAPE70X70
320
PROTECTIVE FOIL LEFT AND RIGHT
330
HOSE ASSEMBLY OUTSIDE LEFT
