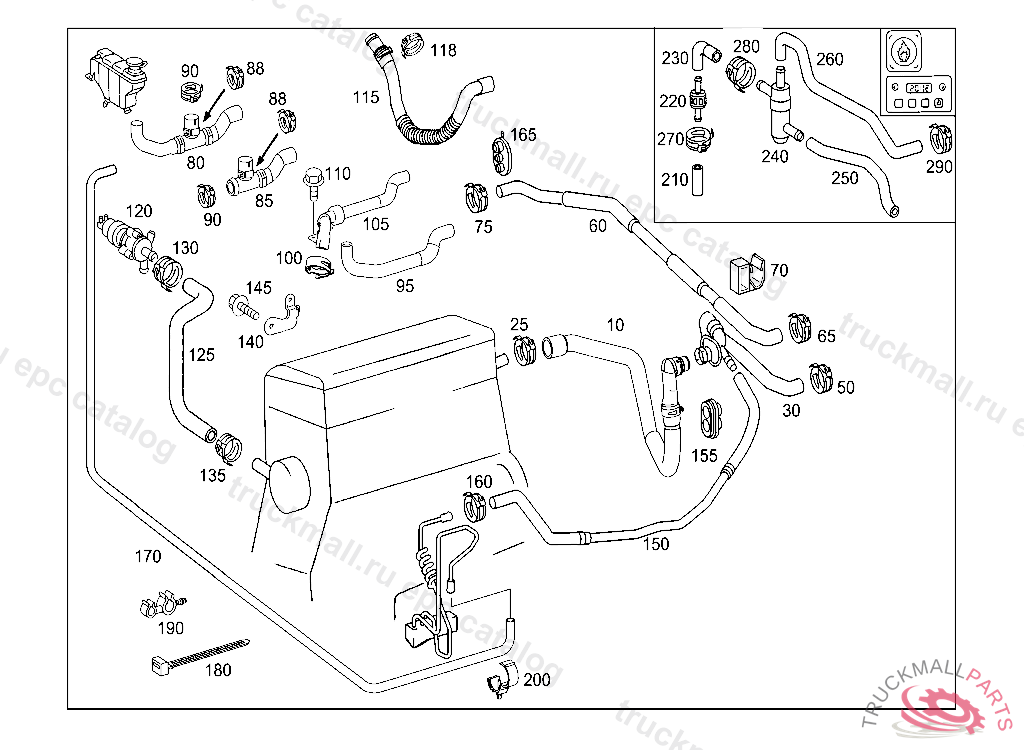

Поз.
Артикул
Описание
10
HOSE ENGINE TO CONNECTING POINT, PARTITION WALL
25
CLAMP25 MM
25
HOSE CLAMP HOSE ATTACHMENT 27 MM
30
HOSE FROM CONNECTING TUBE TO HEAT EXCHANGER
30
HOSE FROM CONNECTING TUBE TO HEAT EXCHANGER, E 01151320020628 A 40746320020628 F 32637520020731
30
HOSE FROM CONNECTING TUBE TO HEAT EXCHANGER, A 40746320020628
30
HOSE FROM CONNECTING TUBE TO HEAT EXCHANGER
50
CLAMP25 MM
60
PIPELINE FROM HEAT EXCHANGER TO WATER VALVE
60
PIPELINE FROM HEAT EXCHANGER TO WATER VALVE
65
CLAMP25 MM
70
FUSE. LOCK ACTIVATED CHARCOAL FILTER TO FUEL FILLER NECK, FROM MODEL YEAR '98
75
CLAMP25 MM
80
HOSE RESERVOIR
85
HOSE HEATER ON PIPE
88
CLAMP HOSE FASTENING 28-35 MM,V 207570
95
HOSE EXPANSION TANK
120
CIRCULATION PUMP
120
CIRCULATION PUMP
130
CLAMP25 MM
135
LOOM TIE HOSE TO RADIATOR AND TO EXPANSION TANK
150
PIPELINE BYPASS LINE TO WATER VALVE
150
PIPELINE BYPASS LINE TO WATER VALVE
155
GROMMET HOSE THRU ENGINE COMPARTMENT PARTITION PANEL
160
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
165
CABLE GROMMET HOSE THRU ENGINE COMPARTMENT PARTITION PANEL
165
CABLE GROMMET HOSE THRU ENGINE COMPARTMENT PARTITION PANEL, Replaced By: A0009984802
165
GROMMET HOSE THRU ENGINE COMPARTMENT PARTITION PANEL, Replaced By: A0009983902
170
HOSE FROM RESERVOIR TO PUMP, E 02900020071206808
180
CABLE TIE310X5MM
190
LINE HOLDER
210
HOSE FROM CHECK VALVE TO PIPE LINE
220
VALVE CHECK VALVE
230
HOSE CHECK VALVE TO COMBINATION VALVE
240
VALVE
250
HOSE COMBINATION VALVE TO COUPLER
260
HOSE COMBINATION VALVE (FEED TO VEHICLE HEATING)
270
CLAMP. LOOM TIE
280
CLAMP25 MM
290
HOSE CLAMP HOSE ATTACHMENT 27 MM
