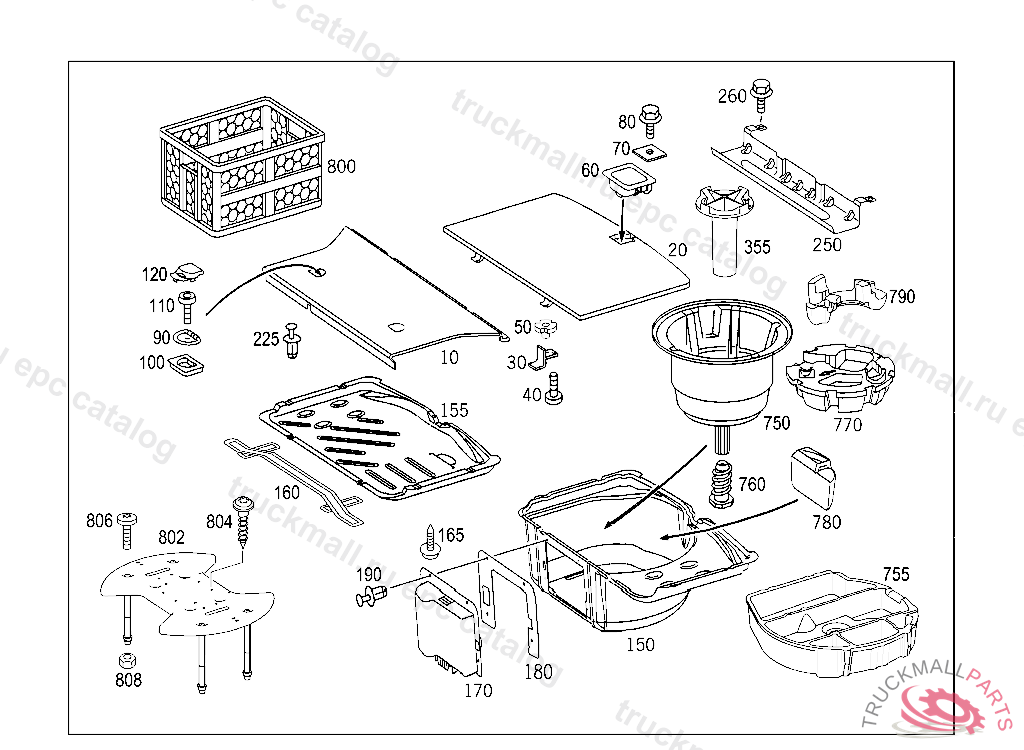

Поз.
Артикул
Описание
10
BOTTOM FRONT
10
BOTTOM FRONT
20
BOTTOM REAR
30
END STOP REAR FLOOR, NOT USED
40
HEXALOBULAR BOLT MOUNTING PARTS M4X16
50
THREADED INSERT MOUNTING STOP M4
60
HANDLE LOADING FLOOR,REAR
70
WASHER LOADING FLOOR HANDLE
80
BOLT. SCREW
90
BRACKET MAIN FLOOR FRONT
100
HOUSING REAR FLOOR
110
BOLT REAR BRACKET MOUNTING M8X22
120
COVER MAIN FLOOR FRONT
150
PANELING UNDER LOADING FLOOR, 9F08QFT203A9002 SINGLE TONE BLACK
150
PANELING UNDER LOADING FLOOR
155
PANELING UNDER LOADING FLOOR
160
CROSS MEMBER LOADING FLOOR,FRONT
165
HEXALOBULAR BOLTM8X16
170
DASHPOT COMPRESSOR, 9051QFT203A0115 BLACK
180
REINFORCEMENT RESERVOIR
190
RIVET BUSHING AND LEVER TO CAB
225
RIVET SEALING LIP TO RADIATOR
250
BRACKET TO REAR END CENTER ASSEMBLY FOR FLOOR
260
HEXALOBULAR BOLT BASIC MODULE AT SUPPORT M6X16,01.08.08
355
BRACKET SPARE WHEEL
750
SHELL SPARE TIRE HOLDER, TIRE SIZE 195, 7C45QFT203A0119 DEEP GREY
750
SHELL SPARE TIRE HOLDER, TIRE SIZE 195, E 01938620050630805 A 66602420040430805 F 59396620040531805 R 15626520040630805 7C45QFT203A0119 DEEP GREY
750
SHELL SPARE WHEEL CARRIER 225ER BEREIFUNG, 7C45QFT203A0119 DEEP GREY
750
SHELL SPARE TIRE HOLDER, TIRE SIZE 205, F 59396620040531805 7C45QFT203A0119 DEEP GREY
755
SHELL SPARE WHEEL, 7C45QFT203A0119 DEEP GREY
760
SCREW SPARE WHEEL CARRIER,B 618717
770
BRACKET TRAILER COUPLING, 7C45QFT203A0119 DEEP GREY
780
BRACKET SPARE WHEEL WELL
790
BRACKET , 7C45QFT203A0119 DEEP GREY
800
ROOF RACK LUGGAGE BOX, NO LONGER AVAILABLE 9B51QFT246A0698 ANTHRACITE
802
BRACKET PARTS KIT
804
BOLT CONTACT PLATE FASTENER M5X10
806
HEXALOBULAR BOLT BRACKET ON TUBULAR SUPPORTING FRAMEWORK M6X12
808
NUT BRACKET TO BODY SHELL M6
808
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
