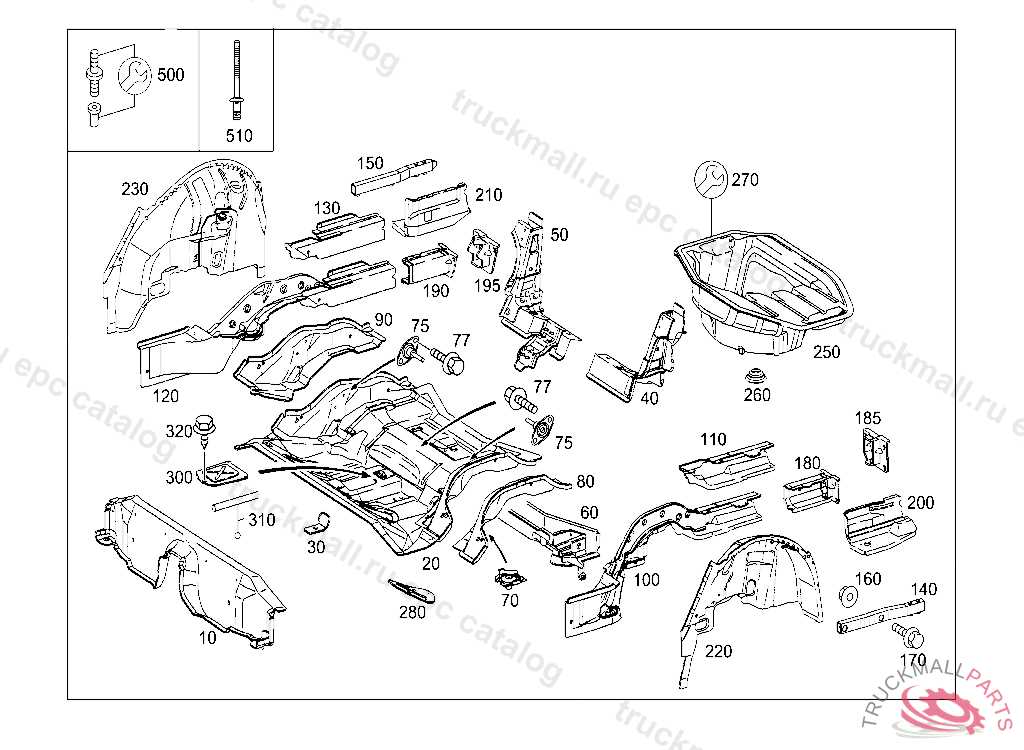

Поз.
Артикул
Описание
10
CROSS MEMBER CROSS MEMBER BELOW REAR SEAT
20
BOTTOM UNDERNEATH REAR SEAT
30
REINFORCEMENT SEAT BELT ATTACHMENT
40
CROSS MEMBER LOADING FLOOR,LEFT
50
CROSS MEMBER LOADING FLOOR,RIGHT
60
CROSS MEMBER ABOVE REAR AXLE
70
TAKE-UP DEVICE REAR AXLE MOUNTING,FRONT, E 01905120031031 A 57722620030829 F 47884220030831 R 12326120030902
75
BRACKET REAR BACKREST
77
BOLT BRACKET M8X24
80
SIDE MEMBER REAR CENTER TOP LEFT
90
SIDE MEMBER REAR CENTER TOP RIGHT
100
SIDE MEMBER REAR LEFT
110
SIDE MEMBER REAR LEFT, E 02000020070101 A 12956620010327
120
SIDE MEMBER REAR RIGHT
130
SIDE MEMBER REAR RIGHT
140
REINFORCEMENT LEFT SIDE MEMBER
150
REINFORCEMENT RIGHT SIDE MEMBER
160
NUT-AND-WASHER ASSEMBLY REINFORCEMENT TO SIDE MEMBER M10, A 97499920070630809 E 06000020080901809
160
NUT-AND-WASHER ASSEMBLY RUBBER MOUNTING TO FRAME M8
170
SCREW-AND-WASHER ASSEMBLY REINFORCEMENT FASTENING M10X25
170
SCREW-AND-WASHER ASSEMBLY CROSSMEMBER MOUNTING M10X60, A 97499920070630809 E 06000020080901809
180
SIDE MEMBER CONNECTION PIECE LEFT
185
CONSOLE LEFT
190
SIDE MEMBER CONNECTION PIECE RIGHT
195
CONSOLE RIGHT
200
PREFORMED CLOSING PIECE REAR LEFT
210
PREFORMED CLOSING PIECE REAR RIGHT
220
WHEELHOUSE REAR LEFT
230
WHEELHOUSE REAR RIGHT
250
SPARE WHEEL WELL
250
SPARE WHEEL RECESS , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. F 751409 X 21585420051028, Replaced By: A2096100575
260
GROMMET WATER DRAIN IN SPARE WHEEL WELL 26 MM
270
REPAIR KIT
280
COVER TANK PUMP
300
COVER FOOT OPERATED PARKING BRAKE
310
SEALING CORD , ORDER BY THE METER
320
SCREW
500
SCREW (PARTS KIT) PARTITION PANEL TO WHEELHOUSE
510
BLIND RIVET REPAIR SOLUTION 6,4 X 12MM / 1-3,5MM, NO LONGER AVAILABLE RIVET ONLY VALID FOR BR222. REPAIR INFORMATION SEE WIS. ADDITIONAL INFORMATION ON TECHNICAL MARKET SUPPORT
