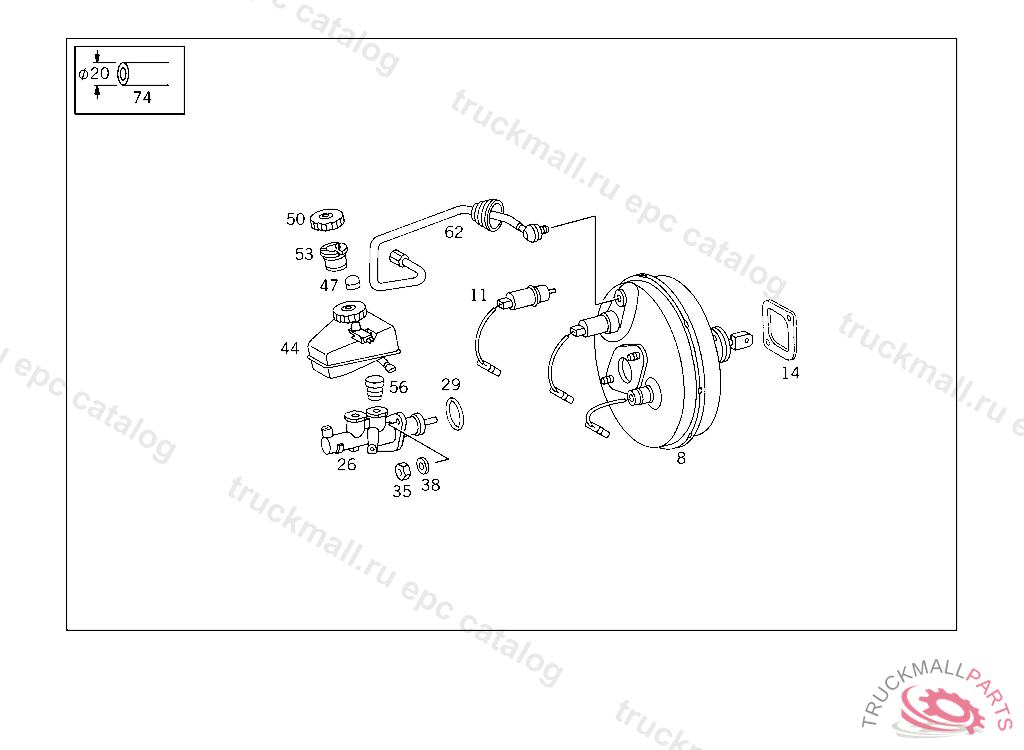

Поз.
Артикул
Описание
8
BRAKE BOOSTER ASSEMBLY
8
BRAKE BOOSTER ASSEMBLY
8
BRAKE BOOSTER ASSEMBLY , F 894084 EXCEPT CODE 809 ALSO INSTALLED IN VEHICLE TO F 894083 WITH CODE 800
11
SENDER UNIT DIAPHRAGM POSITION SENSOR,BAS
14
GASKET BRAKE BOOSTER ASSEMBLY TO FIRE WALL TO 004 430 00 30/08 30
26
BRAKE MASTER CYLINDER ,F 737081
29
SEAL RING
35
NUT
38
WASHER EXHAUST MUFFLER TO STRAP
44
RESERVOIR
47
PROTECTIVE CAP , 000 113166 003 057448 007 046963 083 001049 086 000766 093 000621 102,103 092825 105 116297 183 001424 190 001362
50
COVER , Replaced By: A2024300014
50
COVER , Replaced By: A0004307514
50
COVER
53
STRAINER
56
BUSHING
62
LINE FROM INTAKE MANIFOLD TO BRAKE BOOSTER ASSEMBLY
62
LINE FROM INTAKE MANIFOLD TO BRAKE BOOSTER ASSEMBLY
74
HOSE (RETURN LINE),FROM STEERING TO OIL TANK
