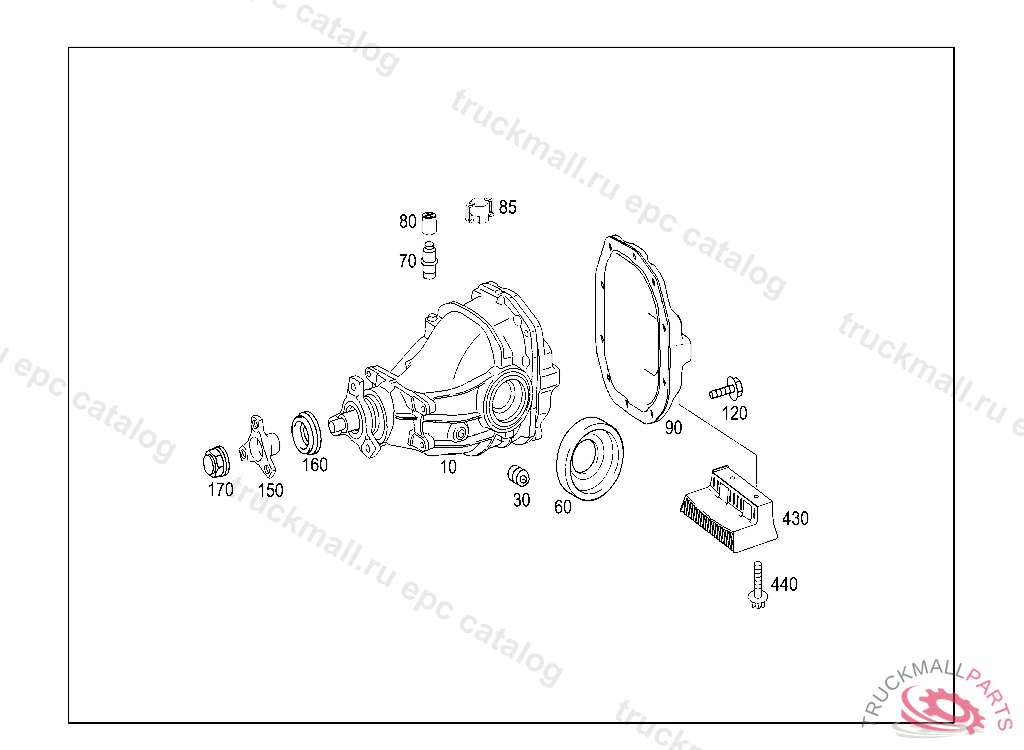

E 350 CGI - 211.057 - 35 REAR AXLE

10

REAR AXLE DIFFERENTIAL REAR AXLE CENTER ASSEMBLY W/O FLANGE 1:3.07, A 87431220050630806 L 00777720060531806 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART

30

SCREW PLUG BELL HOUSING

60

SEAL RING INTERIOR FLANGE, FROM IDENT NO. A 212245 ALSO INSTALLED ON A 187334 - A 212243 WITH CODE 867

70

BREATHER

80

CAP BREATHER

90

COVER END COVER

120

HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25

150

JOINT FLANGE110 MM, A 23962620081009 F 25412020080817, Replaced By: A2123500245

160

SEAL RING DRIVE PINION, FROM IDENT NO. A 212245 ALSO INSTALLED ON A 187334 - A 212243 WITH CODE 867

170

NUT JOINT FLANGE M29X1.5
