Поз.
Артикул
Описание

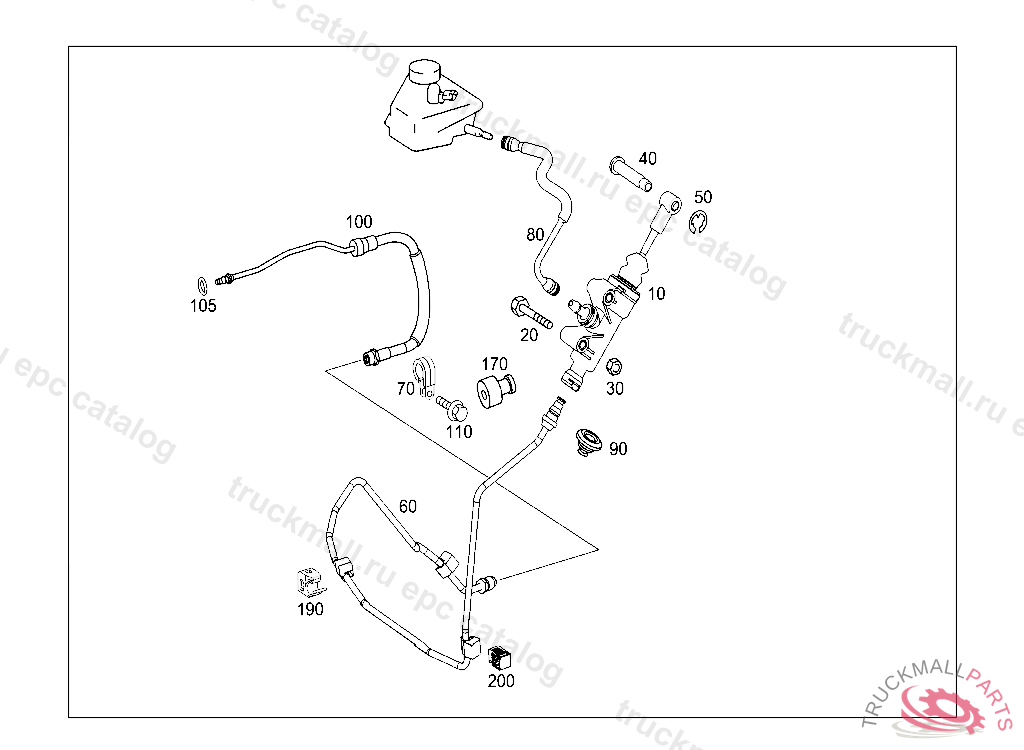

10
CYLINDER MASTER CYLINDER
10
CYLINDER MASTER CYLINDER
20
SCREW. HEXAGON HEAD BOLT CONTROL MODULE TO SUPPORT PLATE M6X50
20
SCREW PLATE TO VALVE M 6X70
30
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
40
PIN CLUTCH MASTER CYLINDER TO CLUTCH PEDAL
50
LOCK PLATE PUSH ROD TO CLUTCH PEDAL
60
LINE FROM MASTER CYLINDER TO SEPARATION POINT
60
CLUTCH CABLE FROM MASTER CYLINDER TO SEPARATION POINT
60
LINE FROM MASTER CYLINDER TO SEPARATION POINT
60
CLUTCH CABLE FROM MASTER CYLINDER TO SEPARATION POINT
70
CLAMP LINE TO TRANSMISSION
70
CLAMP LINE TO TRANSMISSION
80
HOSE FROM RESERVOIR TO MASTER CYLINDER
80
CORRUGATED HOSE FROM RESERVOIR TO MASTER CYLINDER
80
HOSE FROM RESERVOIR TO MASTER CYLINDER
80
HOSE FROM RESERVOIR TO MASTER CYLINDER
80
HOSE FROM RESERVOIR TO MASTER CYLINDER
80
CORRUGATED HOSE FROM RESERVOIR TO MASTER CYLINDER
90
BOOT
100
LINE SEPARATION POINT AT CLUTCH SLAVE CYLINDER
105
O-RING CLUTCH LINE 6.07 X 1.78
110
HEXALOBULAR BOLT. SCREW BRACKET TO TRANSMISSION M 6X15
170
STOP PLUG PEDAL ASSEMBLY HYDRAULICS D 20.5 MM
190
CLAMP LINES UNDER REAR SEAT FLOOR, A 360313 F 340137
200
LINE HOLDER CLUTCH LINE TO TUNNEL
