Поз.
Артикул
Описание

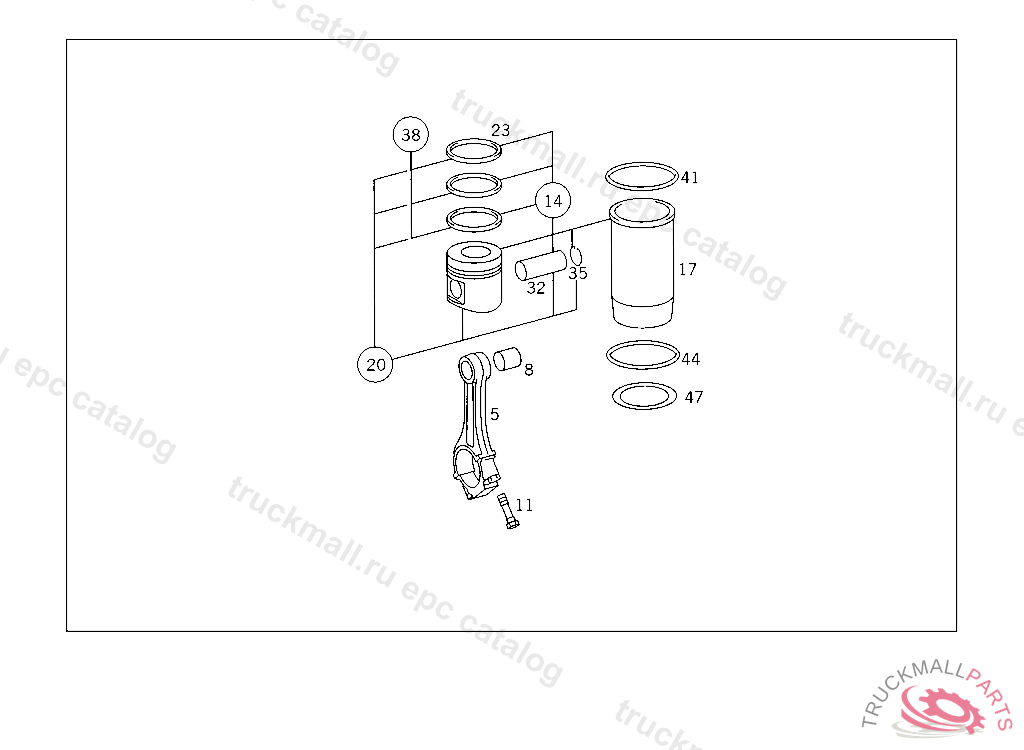

5
CONNECTING ROD , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 087219, Replaced By: A4470300820
5
CONNECTING ROD
5
CONNECTING ROD
5
CONNECTING ROD , ORDER NUMBER 447 030 02 20/33
5
CONNECTING ROD
8
PISTON PIN BUSHINGTO 407 030 07 20, 447 030 04 20
8
PISTON PIN BUSHING ,070547 TO BE ADAPTED DURING ASSEMBLY
11
SCREW CONNECTING ROD COVER TO CONNECTING ROD
11
SCREW , ONLY REPLACEABLE BY PAIRS, Replaced By: A4420380071
14
PISTON WITH CYLINDER LINER
17
CYLINDER LINER ACCORDING TO FITTING SIZE C 127.995
20
PISTON ACCORDING TO FITTING SIZE C
23
PISTON RING , Replaced By: A4420370216
23
PISTON RING GROOVE I
32
PISTON PIN ,004220
35
SNAP RING
38
PISTON RING PARTS KIT
41
SEAL RING , Replaced By: A0259978448
41
SEAL RING CYLINDER LINER TO CYLINDER CRANKCASE, TOP, GROOVE: II
41
SEAL RING CYLINDER LINER TO CYLINDER CRANKCASE, TOP 0.15 MM
44
SEAL RING CYLINDER LINER TO CYLINDER CRANKCASE, BOTTOM III, IV
44
SEAL RING , Replaced By: A0259978548
47
SEAL RING , Replaced By: A4420110259
47
SUPPORTING RING FOR REPAIR PURPOSES ONLY 0.80 MM
47
SUPPORTING RING FOR REPAIR PURPOSES ONLY 1.50 MM
47
SEAL RING CYLINDER LINER TO CYLINDER CRANKCASE, TOP 0.50 MM
47
SUPPORTING RING FOR REPAIR PURPOSES ONLY 1.00 MM
