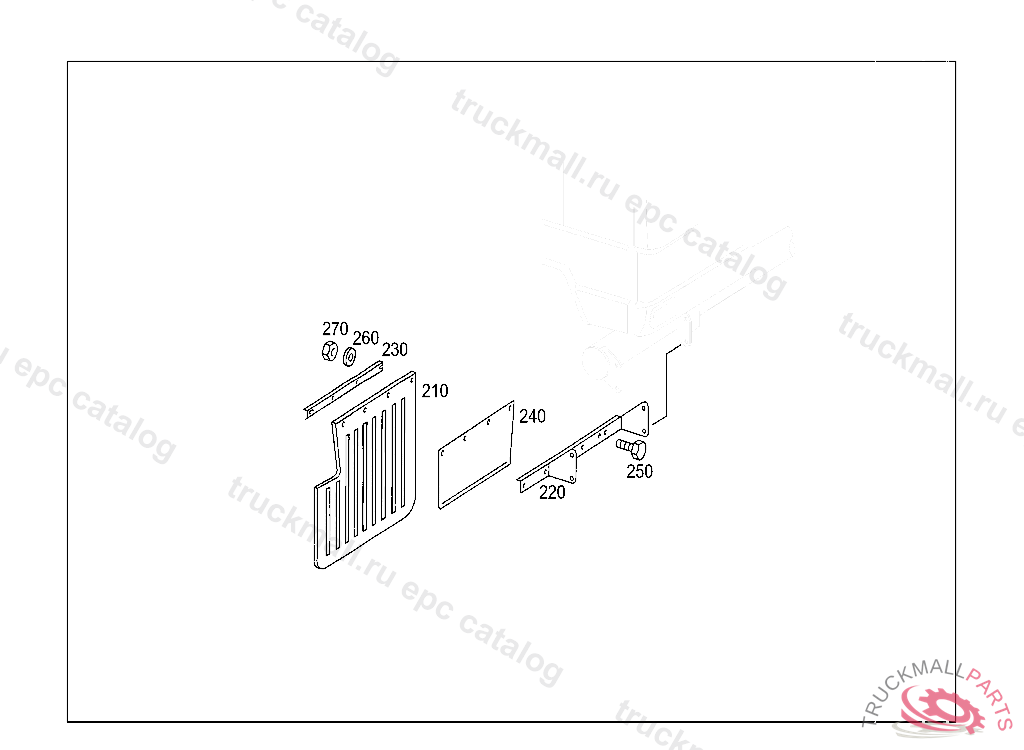

G 280 CDI - 461.334 FROM CHASSIS 144791 - 88 ATTACHMENT PARTS

Поз.
Артикул
Описание
210
A4608891005
MUD APRON REAR LEFT
210
A4618891605
SPLASH GUARD REAR LEFT, 20130726
210
A4608891105
MUD APRON REAR RIGHT
210
A4618891205
MUD APRON REAR RIGHT
210
A4618891805
MUD FLAP REAR LEFT, 20130726
220
A4608800239
BRACKET REAR LEFT
220
A4848801914
BRACKET REAR LEFT
220
A4848801714
BRACKET REAR LEFT
220
A4608800339
BRACKET REAR RIGHT, X 15555020040331
220
A4848802014
BRACKET REAR RIGHT
220
A4848801814
BRACKET REAR RIGHT
230
A4608820027
RAIL MUD APRON TO BRACKET, X 15554920040331
250
N000933006245
SCREW PUMP TO BRACKET M 6X20
250
N304017006020
SCREW LICENSE PLATE TO BRACKET
260
N000125006421
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
260
N000125006449
WASHER COMPRESSED AIR LINE TO BRACKET
270
N304032006004
NUT SPRING-LOADED PUSH ROD
