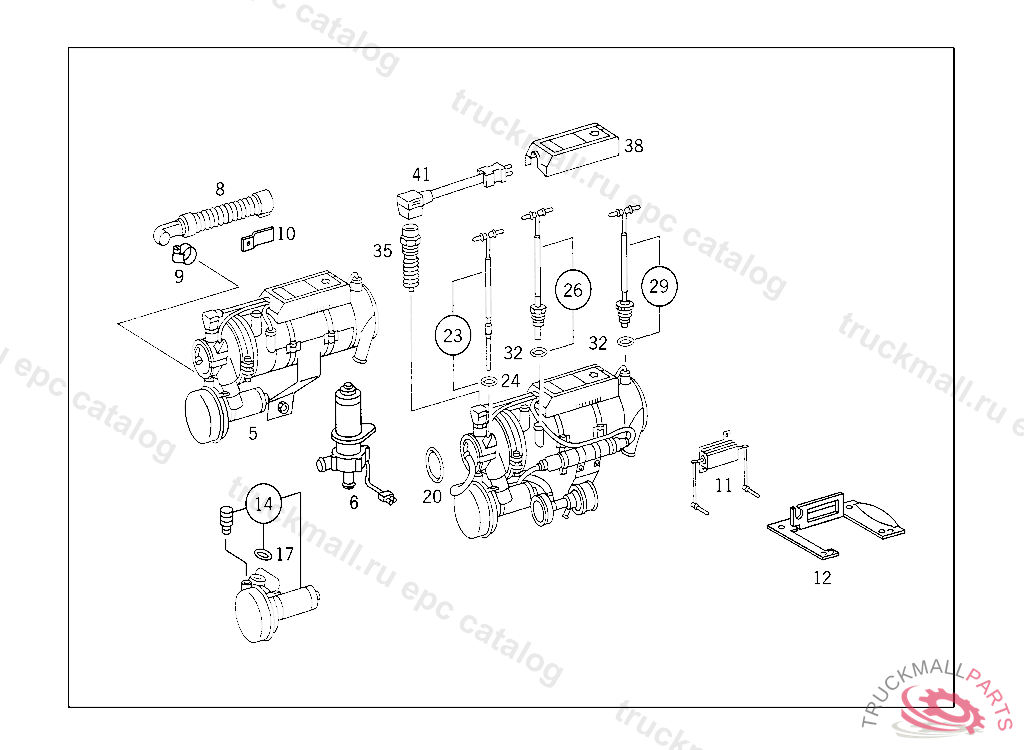

250 GD/290 GD - 461.452 - 50 RADIATOR
Поз.
Артикул
Описание
5
HEATING UNIT24V
6
MOTOR. RECIRCULATING PUMP
8
MUFFLER INTAKE MUFFLER
9
HOSE CLAMP LINE MOUNTING
9
CLAMP , Replaced By: A0059970190
10
BRACKET
11
RESISTOR24V
12
BRACKET
14
BLOWER
17
SEAL RING
20
SEAL RING76X3 MM, ALSO INCLUED IN REPAIR KIT: 000 830 04 98
23
FUSE
24
SEAL RING
26
TEMPERATURE SENSOR
29
FUSE140 MM,B 926098
32
SEAL RING
32
SEAL RING ,5 385342
35
HEATER PLUG
38
COVERING
41
ELECTRIC CABLE , Replaced By: A0028207915
41
ELECTRIC CABLE
