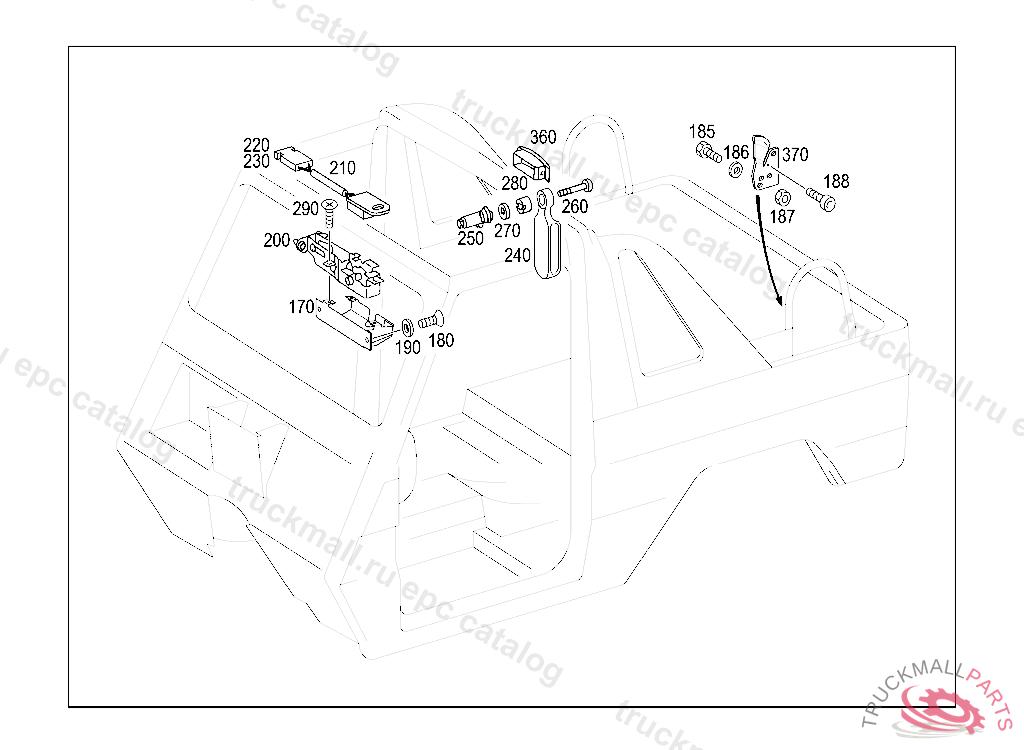

Поз.
Артикул
Описание
170
HOUSING FRONT LEFT
170
HOUSING FRONT RIGHT
180
SCREW PUMP TO BRACKET
185
SCREW BRACKET TO CROSS CONNECTION STRUT
186
WASHER PUMP TO CONSOLE
187
HEXAGON NUT. NUT L.H. THREAD
188
BOLT TO BELT CLIP BRACKET
190
WASHER COMPRESSED AIR LINE TO BRACKET
200
CATCH LEFT
200
CATCH RIGHT
210
SWITCH RIGHT
210
SWITCH LEFT
220
PLUG HOUSING
230
PLUG PIN
240
LEVER , 9051QFT463A0535 BLACK
250
INTERMEDIATE PIECE BETWEEN LOCK & HANDLE,C 083748
260
SCREW HANDLE TO LOCK
270
WASHER BETWEEN LOCK & HANDLE
280
CONNECTING DRUM BETWEEN LOCK & HANDLE
290
HEXAGON HEAD BOLT. SCREW VALVE TO BRACKET
360
COVERING HANDLE
370
BRACKET , X 19471620111028
370
BRACKET FASTENER,LEFT
370
BRACKET RIGHT
