Поз.
Артикул
Описание

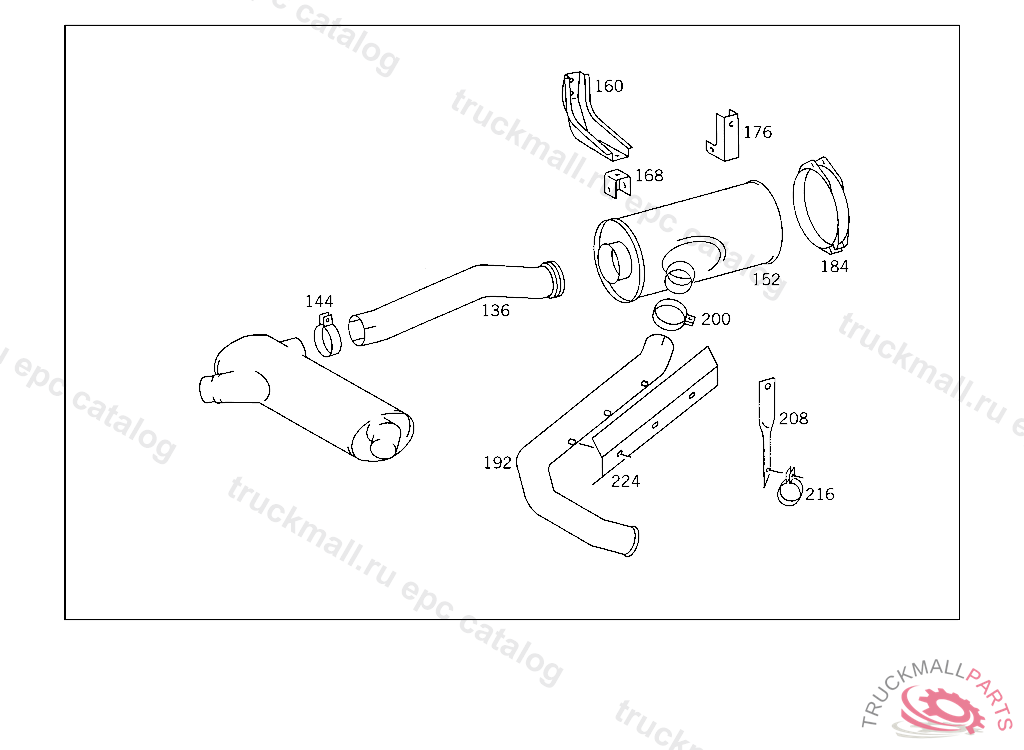

136
EXHAUST PIPE FROM FRONT MUFFLER TO REAR MUFFLER
144
CLAMP EXHAUST PIPE
152
EXHAUST MUFFLER REAR
160
CONSOLE REAR EXHAUST MUFFLER 200 MM
160
CONSOLE EXHAUST MUFFLER TO SIDE MEMBER
168
BRACKET REAR EXHAUST MUFFLER
176
BRACKET EXHAUST MUFFLER SUSPENSION
184
STRAP EXHAUST MUFFLER TO BRACKET
184
STRAP , Replaced By: A6204900441
184
STRAP EXHAUST MUFFLER TO BRACKET
192
EXHAUST PIPE REAR
200
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
200
CLAMP , Replaced By: N071555100501
208
BRACKET EXHAUST PIPE TO SIDE MEMBER
216
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
216
CLAMP , Replaced By: N071555100501
224
PROTECTIVE PLATE (HEAT SHIELD)
224
PROTECTIVE PLATE , Replaced By: A6204920230
