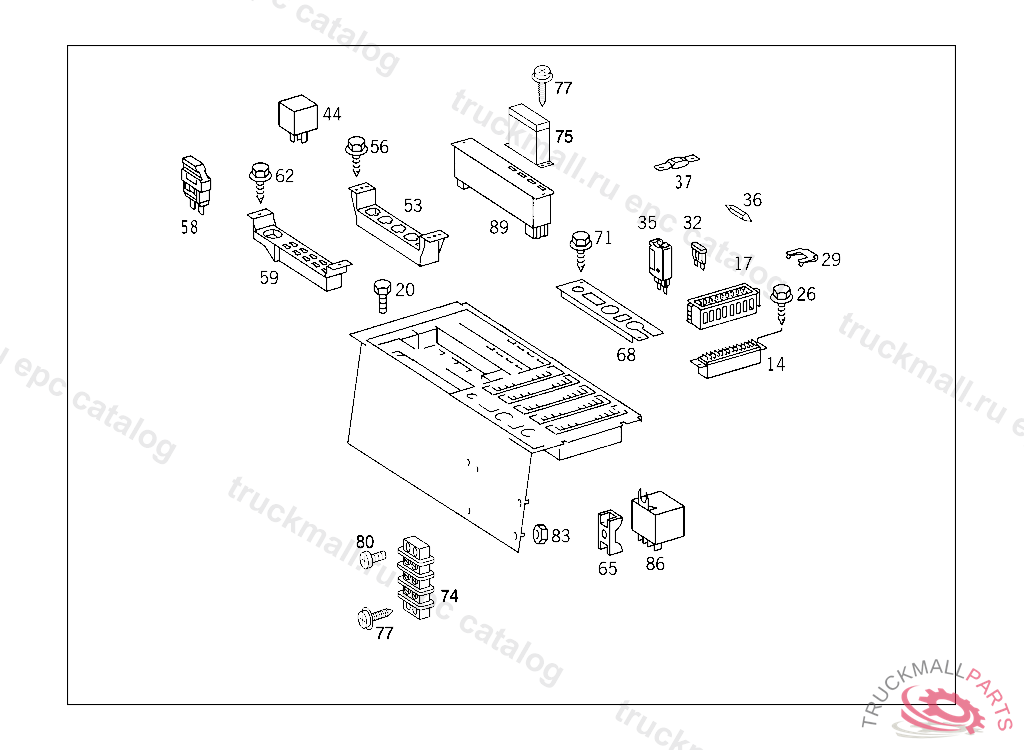

Поз.
Артикул
Описание
14
JUNCTION BOX FUSE
17
JUNCTION BOX (TOP),CONNECTION BOX
20
SCREW CONDENSER TO CHARGE AIR INTERCOOLER M6 X 12
20
COMBINATION BOLT
20
HEXAGON HEAD BOLT
26
SHEET METAL SCREW PIN BUSHING HOUSING
29
CONTACT RAIL ELECTRICAL COMPARTMENT
32
FUSE , Replaced By: A0025451034
32
FUSE LINK BLUE 15A,V 202043
32
FUSE LINK IN FUSE BOX AND SPARE FUSE 7,5 A
35
FUSE MODULE5A
35
FUSE MODULE25A,102668
35
FUSE LIFTING DEVICE DRIVE MOTOR 32 A
35
FUSE THERMAL 25 A
35
FUSE MODULE15A
35
FUSE MODULE20A,102668
35
FUSE THERMAL 15 A
35
FUSE MODULE7,5A
35
FUSE THERMAL 7,5A,102667
35
FUSE THERMAL 10A
35
FUSE MODULE3A,102668
35
FUSE THERMAL 5A,102667
35
FUSE MODULE10A,102668
35
FUSE MODULE4A
35
FUSE ELECTRICAL COMPARTMENT 6A
35
FUSE8 A
36
FUSE IN CASE OF SUBSEQUENT INSTALLATION, Replaced By: N000000004202
36
FUSE LINK NATURAL WHITE 25A,V 202043
36
FUSE LINK IN CASE OF SUBSEQUENT INSTALLATION
37
FUSE LINK
37
PART NAME MISSINGA 50
37
SCREW. PART NAME MISSINGA 70
37
SCREW. PART NAME MISSINGA 80
37
FUSE LINKSF 30-70 / 70A
37
FUSE LINKSF 30-80 / 80A
44
RELAY TRANSMISSION OIL COOLING SYSTEM
44
RELAY
44
RELAY , Replaced By: A0035459605
44
DIODE MODULE FIVEFOLD
44
RELAYA33
44
RELAY STARTING CONTROL 10 K 01
44
RELAYA33, Replaced By: A0009822123
44
RELAY STARTING LOCK K 3
44
RELAY RELAY WITH ERASE DIODE 24V-10/20A,A32, K1, K3, K5
53
FRAME RELAY 'A33', MARK WITH SAME IDENTIFICATION NO. AS PREVIOUS PART
56
SHEET METAL SCREW PIN BUSHING HOUSING
58
DIODE ,K 182153
59
BRACKET DIODES
62
SHEET METAL SCREW DIODE HOLDER
65
BRACKET , NOT USED
68
BRACKET PLUG SOCKET
71
SHEET METAL SCREW PIN BUSHING HOUSING
74
CLAMPING RAIL. CABLE CONNECTOR AT UPPER COOLING WATER LINE, FROM IDENT NO. 040926 ALSO INSTALLED ON 038379,038620.
75
JUNCTION BOX PLUG SOCKET
77
SHEET METAL SCREW PIN BUSHING HOUSING
80
SCREW BRACKET MOUNTING M 4X25
83
NUT
86
UNDERVOLTAGE PROTECTION. CONTROL UNIT (UNDERLOAD PROTECTOR),067546
89
MODULE INSTRUMENTS "I"
999
ELECTRONICS , Replaced By: A0004461232
999
ELECTRONICS , Replaced By: A0004461432
999
ELECTRONICS SOFTWARE REQUIRED,MUST BE PARAMETERIZED
999
KEY BATTERY CUT-OFF " KISSLING "
999
CONTROL UNIT CHARGER
999
ELECTRIC CABLE DESTINATION SYSTEM XY5 / XY10
999
ELECTRIC CABLE DESTINATION SYSTEM XY5 / XY10
999
ELECTRIC CABLE DESTINATION SYSTEM XY5 / XY10
999
CONTROL UNIT ENGINE COOLING
999
CABLE HARNESS STARTER PUSH BUTTON ( 01K02/01S03 -- X0609/X0612 )
999
CABLE HARNESS ADDITIONAL INSTRUMENT PANEL " IBIS ", 73F03 -- X0614 / X0344
999
BRACKET ROOF-ARCH ELECTRICAL COMPARTMENT
999
CONTROL UNIT LIFTING MOTION
999
ELECTRIC CABLE TICKET PRINTER X 0119
999
ELECTRIC CABLE TICKET PRINTER X 2016
999
ELECTRIC CABLE ELECTRICAL COMPARTMENT " IBIS ", X0344 -- X0222
999
ELECTRIC CABLE SECONDARY SWITCHBOARD " IBIS ", X0344
999
ELECTRIC CABLE RADIO, LOUDSPECKER, ANTENNA, MICROPHONE
999
ELECTRIC CABLE TICKET PRINTER 04A02 --- X0952
999
ELECTRIC CABLE DOOR LOCKING MECHANISM
999
ELECTRIC CABLE DESTINATION SYSTEM X1201 -- 71X02 / 71X04
999
ELECTRIC CABLE CABLE HARNESS EMERGENCY COCK (T2) 4_S21 --- 4_S21.1
999
ADAPTER LINE ADAPTER LINE " IBIS ", X0617 -- 01S01
