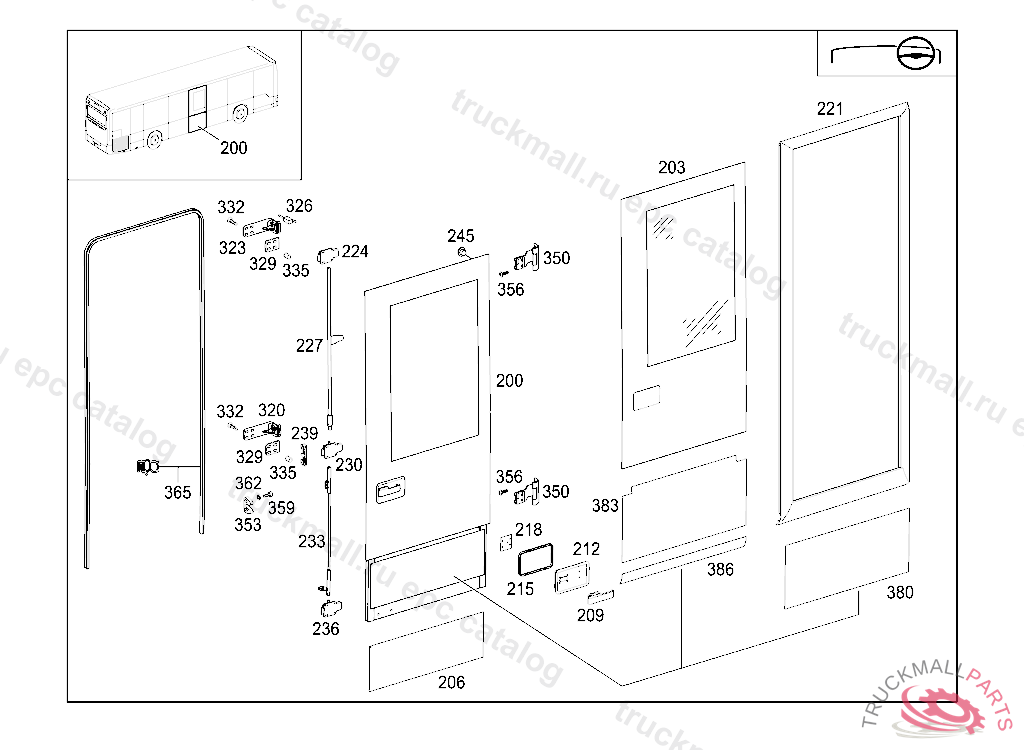

O530 - CITARO 12M, 1 TUER - 628.080 - 73 DOORS
Поз.
Артикул
Описание
200
SIDE DOOR EMERGENCY DOOR
203
GLASS PANE
206
PLATE
209
DOOR HANDLE
212
MOLD RECESS
215
GASKET
218
GASKET
221
SEALING FRAME
224
LOCK
227
LINK ROD
230
LOCK
233
LINK ROD
236
LOCK
239
GUIDE WEDGE
245
PLUG10X12X4MM
320
BRACKET
323
BRACKET
326
QUICK BREAK SWITCH
329
BASE
332
SCREW W COLLAR A DRIVET30 M6X20
335
RIVETED NUT
350
HINGE
353
LOCK WEDGE
356
SCREW
359
SCREW
362
WASHER COMPRESSED AIR LINE TO BRACKET
365
RUBBER SECTION , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
380
DOOR PANELING
383
DOOR PANELING
386
PANELING
999
DOOR LOCK COMPLETE
999
VALVE 3/2-WAY VALVE
