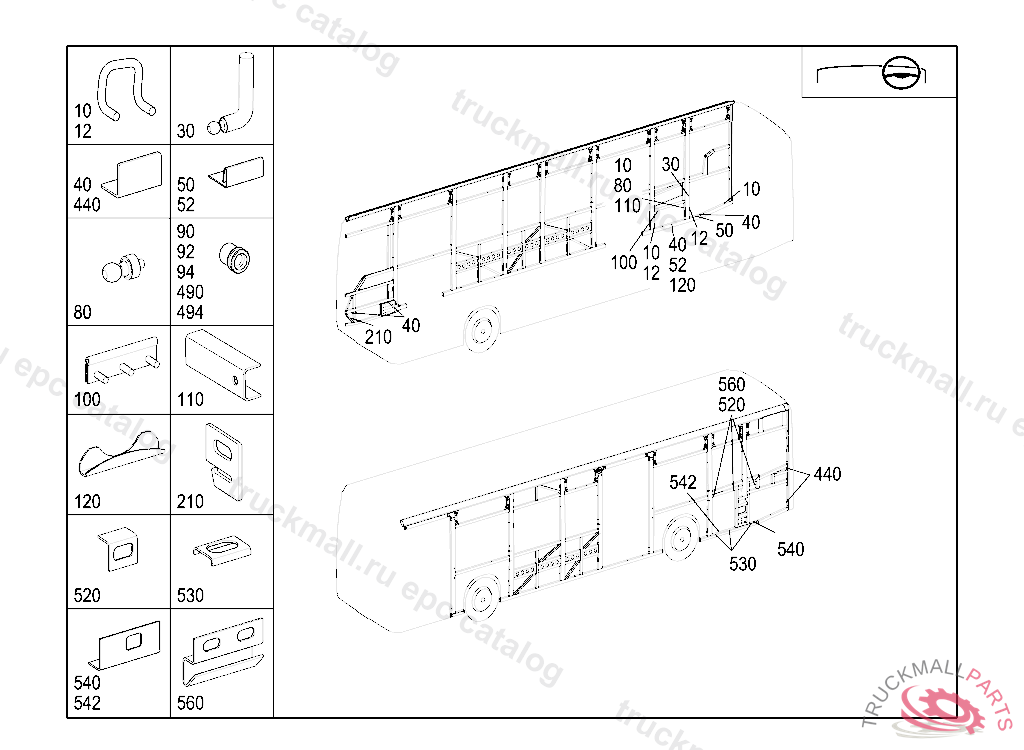

O530 - CITARO 12M, 1 TUER - 628.080 - 75 OUTSIDE FLAPS
Поз.
Артикул
Описание
10
CONNECTION REAR RIGHT
12
CLAMP REAR RIGHT
30
BRACKET
40
ANGLE REAR RIGHT 40X20X24MM
50
FRAME
52
FRAME BATTERY
80
JOINT BALL HEAD CENTRAL RIGHT
90
RIVETED NUT
92
RIVETED NUTM 6X1.0
94
NUT FRONT LEFT M6X1
100
HINGE
110
BRACKET CENTRAL RIGHT
120
BRACKET REAR RIGHT
210
BRACKET FRONT LEFT
440
ANGLE REAR RIGHT 40X20X24MM
490
RIVETED NUT
520
ANGLE REAR LEFT 26X21X10MM
530
ANGLE REAR LEFT 36X26X6MM
540
ANGLE REAR LEFT 175X30X20MM
542
ANGLE REAR LEFT 630X30X20MM
560
BRACKET REAR LEFT
