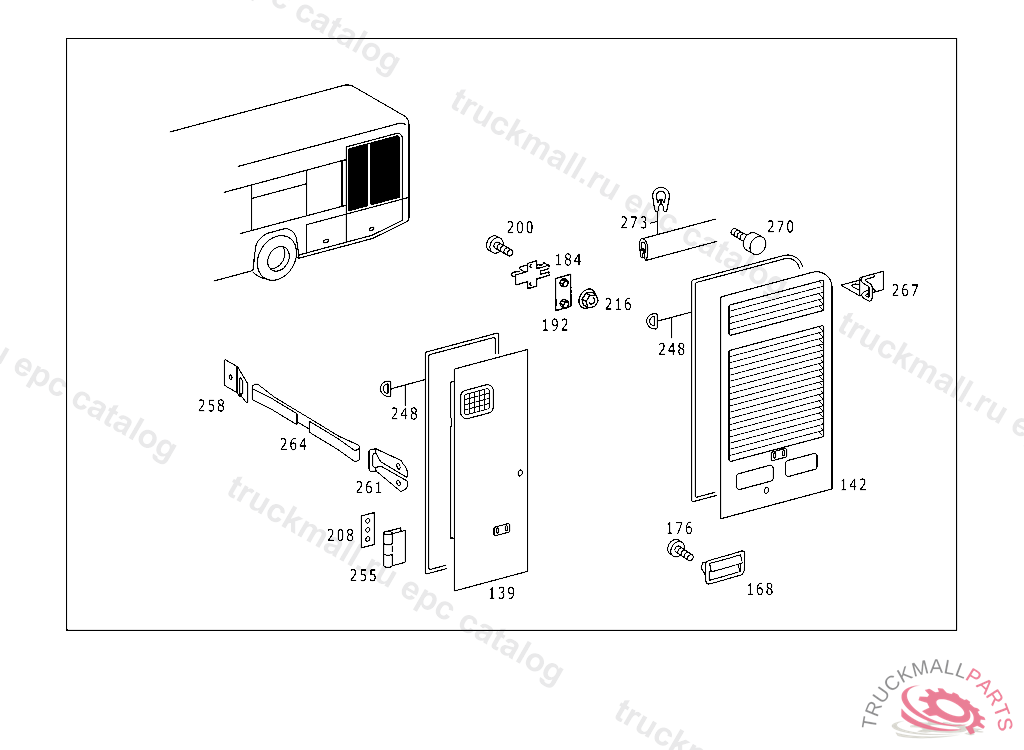

O 530 N3 LANG EURO 2 - 628.100 - 75 OUTSIDE FLAPS

Поз.
Артикул
Описание
139
A6287507704
FLAP MAINTENANCE OF AIR CLEANER
142
A6287508204
FLAP RADIATOR
168
A3017550301
HANDLE
176
N910143006000
SCREW CONDENSER TO CHARGE AIR INTERCOOLER M6 X 12
176
N910105006002
HEXAGON HEAD BOLT
184
A3577500050
LOCK
192
A3057500011
PLATE
200
N914146006102
SCREW CLAMP MOUNTING M 6X16
208
A3017550211
PLATE
216
N913023006001
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
248
A6289870053
RUBBER SEAL , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
255
A6287500421
HINGE
258
A6287510114
BRACKET LEFT INSIDE
261
A6287510014
BRACKET
264
A6287500564
BAND
267
A6287500714
BRACKET RADIATOR FLAP
270
A3579880011
BUFFER (STOP BUFFER), UP TO IDENT NO. 085164 EXCEPT FOR 080637,083620,083621,084073,084350,084353,084354,084355,084356,084635,084679,084951.
273
A0009870772
EDGE GUARD SECTION , ORDER BY THE METER
