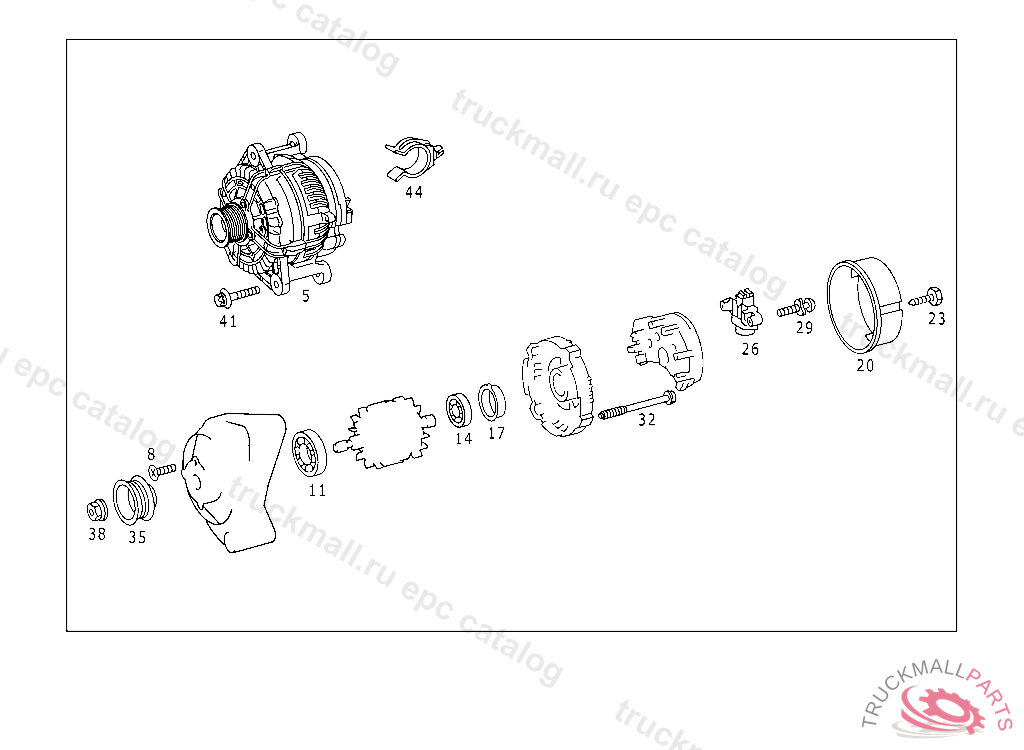

ML 320 - 163.154 TO 09/2000 - 54 ELECTRICAL EQUIPMENT AND INSTRUMENTS

5

ALTERNATOR115ABOSCH, A 319542 EXCEPT 317803,317910,318227,318440,318477,318515,318517,318523,318535,318538,318542,318543,318546,318550, 318557,318776,318842,318980,319309,319318,319399. PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART

8

SCREW COVER PLATE TO DRIVE BEARING M4X20

11

BALL BEARING DRIVE END BEARING BOSCH

14

BALL BEARING SLIP RING SIDE BOSCH

17

RING SLIP RING SIDE

20

COVERBOSCH

23

SCREW COVER BOSCH

26

REGULATOR AND CUT-OUTTO 008 154 52 02

29

SCREW-AND-WASHER ASSEMBLY. COMBINATION BOLT

32

SCREW HOUSING M5X47, BOSCH

35

PULLEY

38

NUT PULLEY TO ALTERNATOR

41

SCREW ALTENATOR ON TIMING CASE AND WATER PUMPM10X105

44

BRACKET AT BRACKET
